3D Background Wall Soft Panel Low Pressure Foaming Machine

Short Description:

The low pressure machine can produce PU toy balls, cotton, trowel, European-style photo frame, hard foam play tool, boxing gloves, and various thermal insulation products filling etc.


Introduction

Detail

Specification

Application

Video

Product Tags

1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
2.Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
3.Low speed high precision metering pump, accurate ratio, random error within 卤0.5%;
4.Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
5.High-performance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime;
6.Adopting PLC and touch screen man-machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors;


  • Previous:
  • Next:

  • High-performance mixing device, spit out accurate synchronization raw material, mixing
    A new seal structure, reserved cold water cydle interface, to ensure the long time continuous production is not blocked;双组份低压机



    Adopt three layers of material storage tank, stainless steel tank, heating sandwich type, outsourcing insulation layer,the temperature is adjustable, safety and energy saving.

    mmexport1628842474974



    Pouring PLC touch screen man machine interface control equipment, automatic cleaning and air rushed, stable performance,strong operability, abnormal automatically discrimination, diagnosis and alarm, display abnormal factors.

    mmexport1593653416264

    Taken the high temperature resistant low speed and high precision metering pump, the matching precision,measurement precision error is not more than土0.5%微信图片_20201103163218

    Power (kW): 168kW Product Type: Foam Net
    Machine Type: Injection Machine Voltage: 380V
    Dimension(L*W*H): 4100(L)*1250(W)*2300(H)mm Weight (KG): 1200 KG
    Warranty: 1 YEAR After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
    Key Selling Points: Automatic After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
    Local Service Location: Turkey, Pakistan, India Showroom Location: Turkey, Pakistan, India
    Applicable Industries: Manufacturing Plant Name: Injection Foam Equipment
    Filter: Self-cleaning Filter Material Feeding: Automatic Feeding System
    Control System: PLC Metering Pump: Precise Metering
    Tank Volume: 250L Power: Three-phase Five-wire 380V
    Port: Ningbo
    High Light: 250L Low Pressure PU Foaming Machine0.9g/s Low Pressure PU Foaming Machine

    380V polyurethane foam equipment

    The leather carving soft bag can soften the atmosphere of the space and improve the quality of the home. At the same time, it can absorb sound and reduce noise, and keep the temperature warm. The polyurethane soft bag is safe, comfortable, healthy and environmentally friendly.

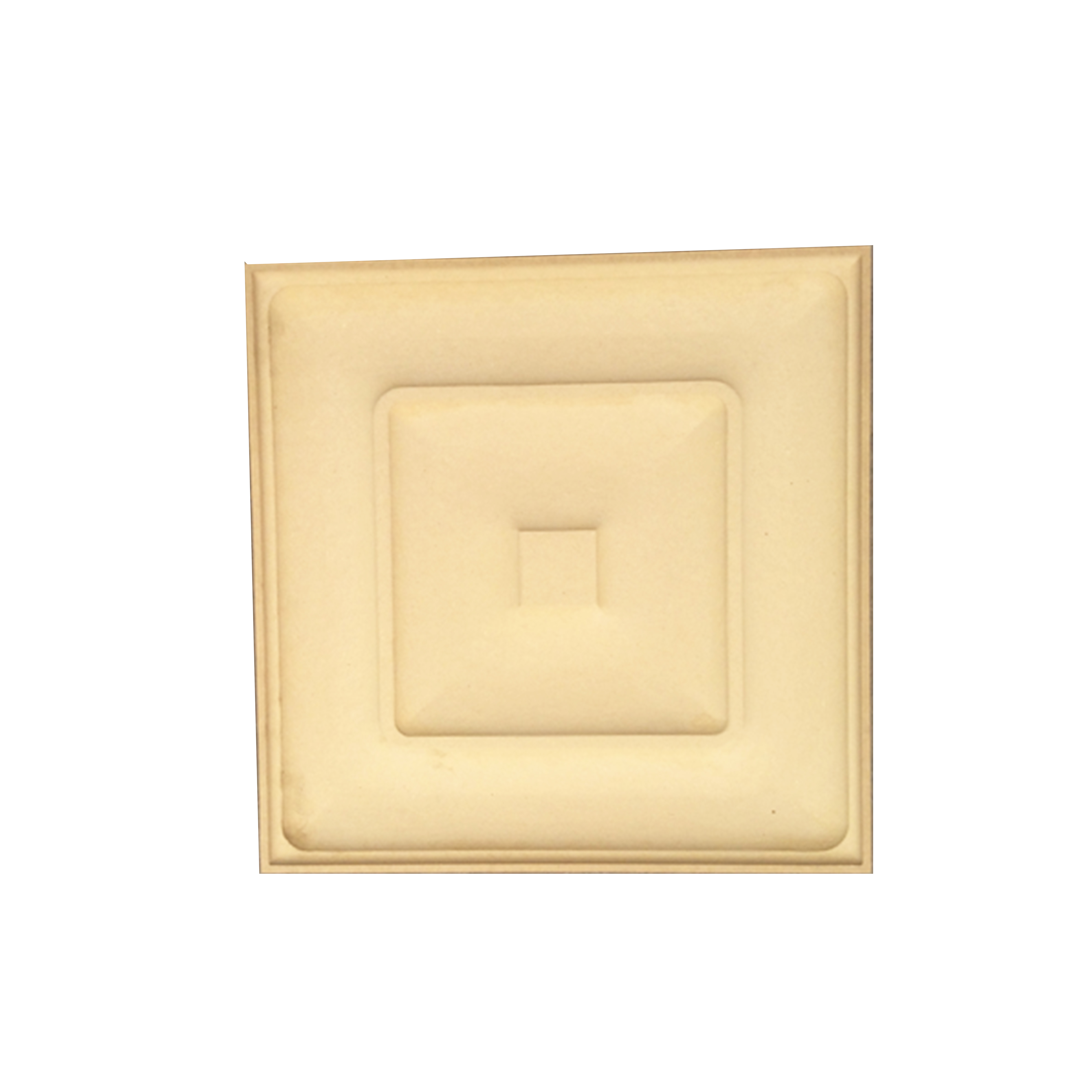

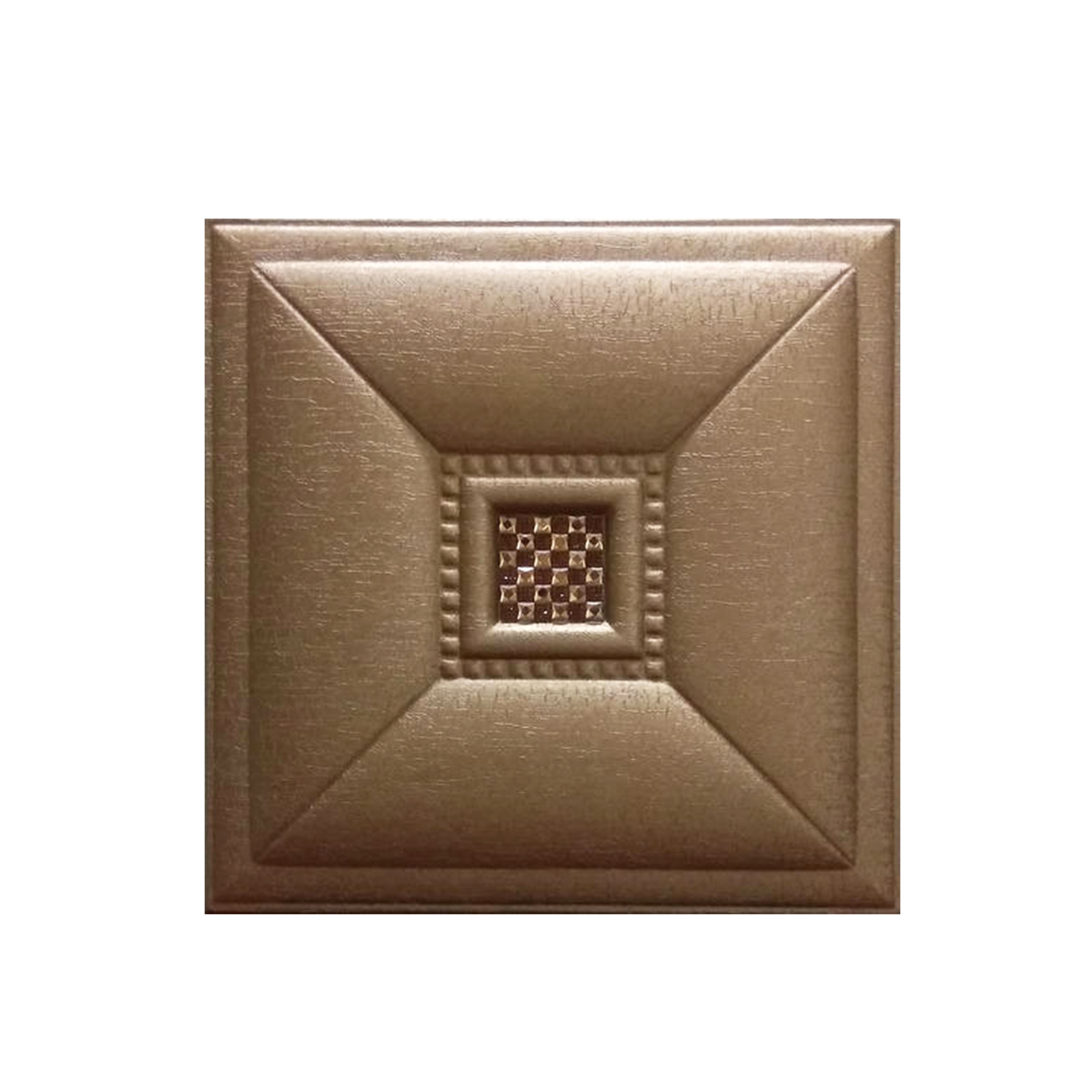

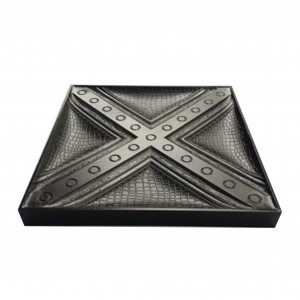

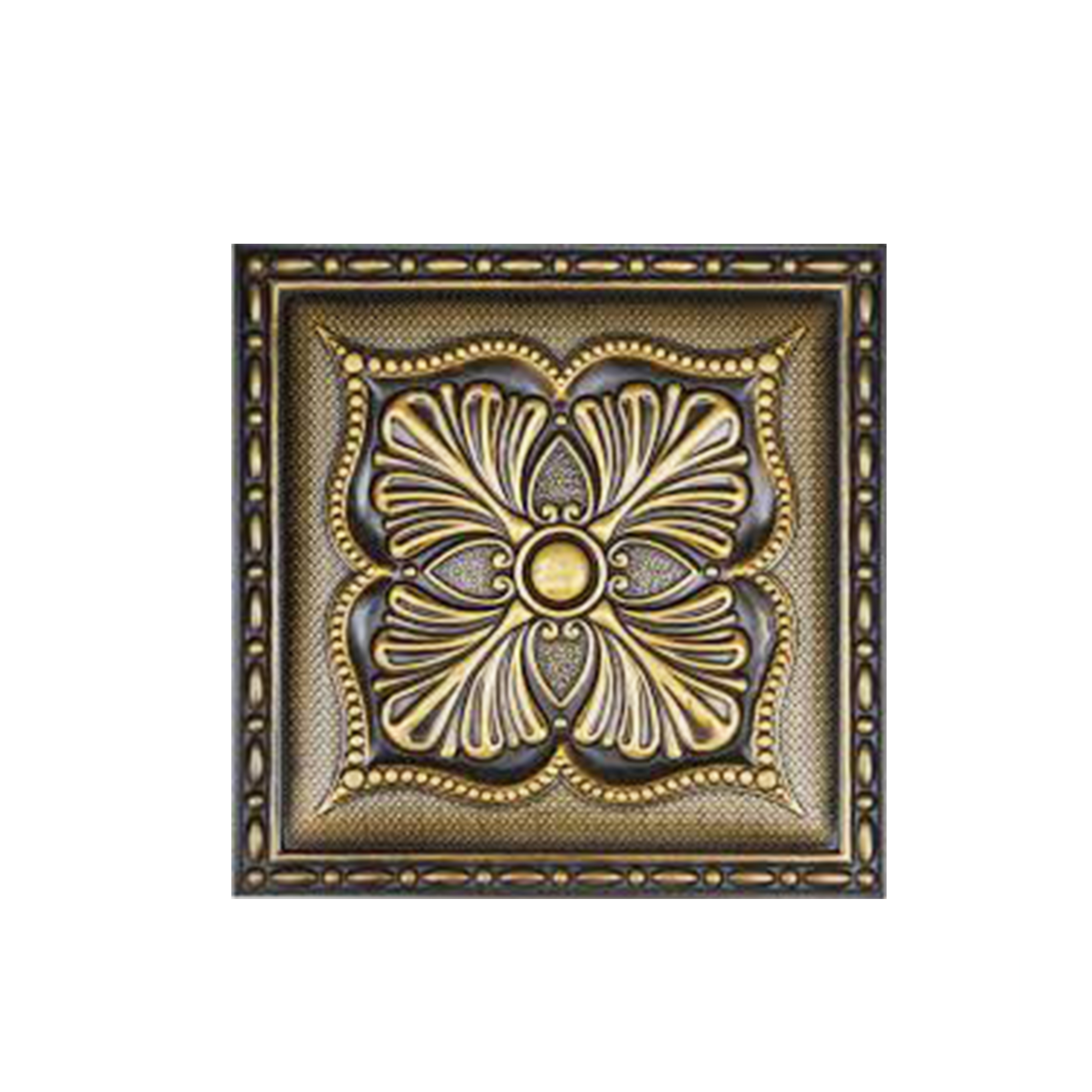

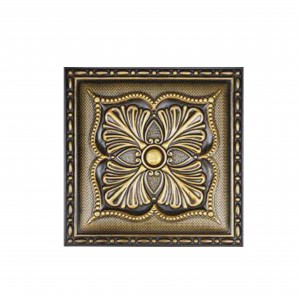

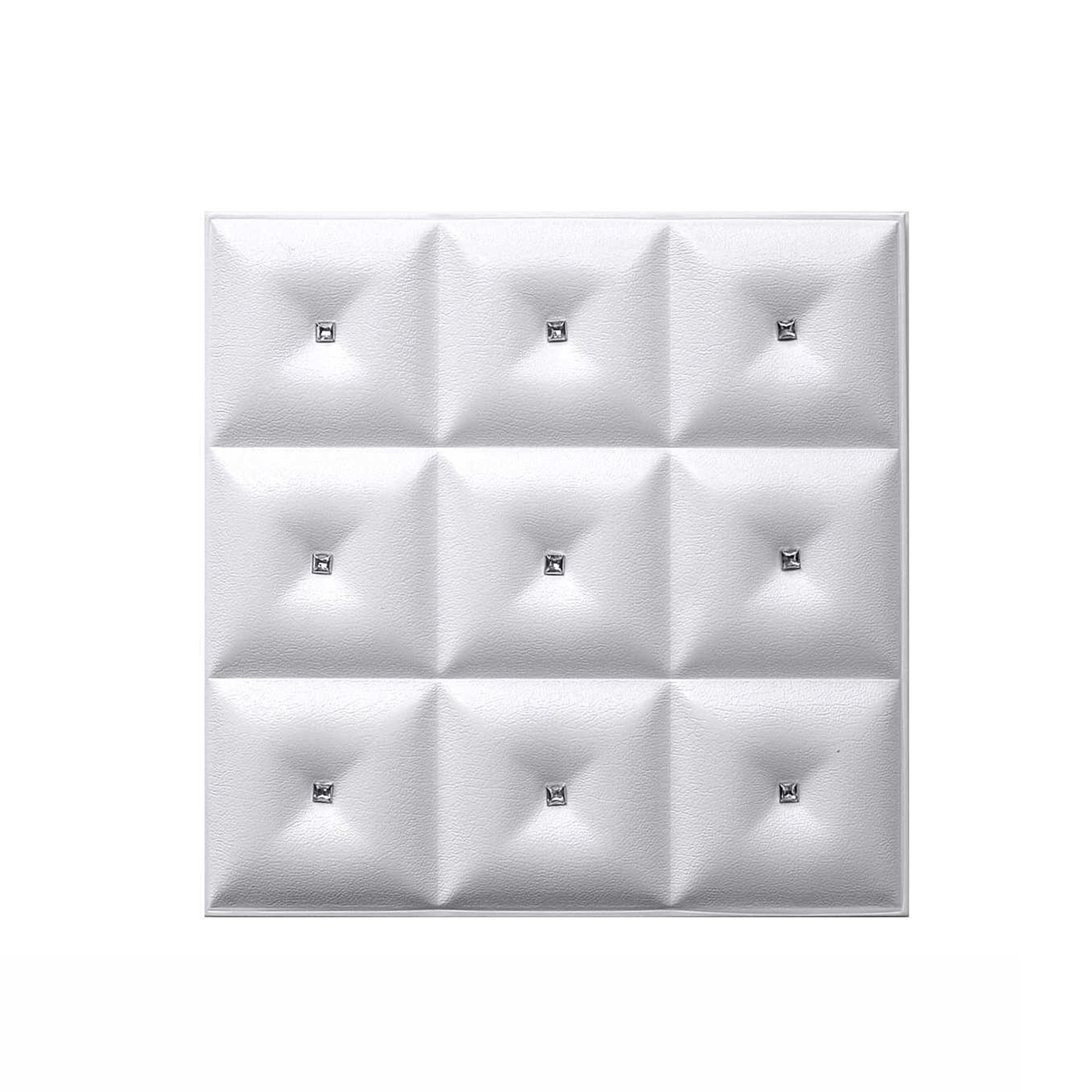

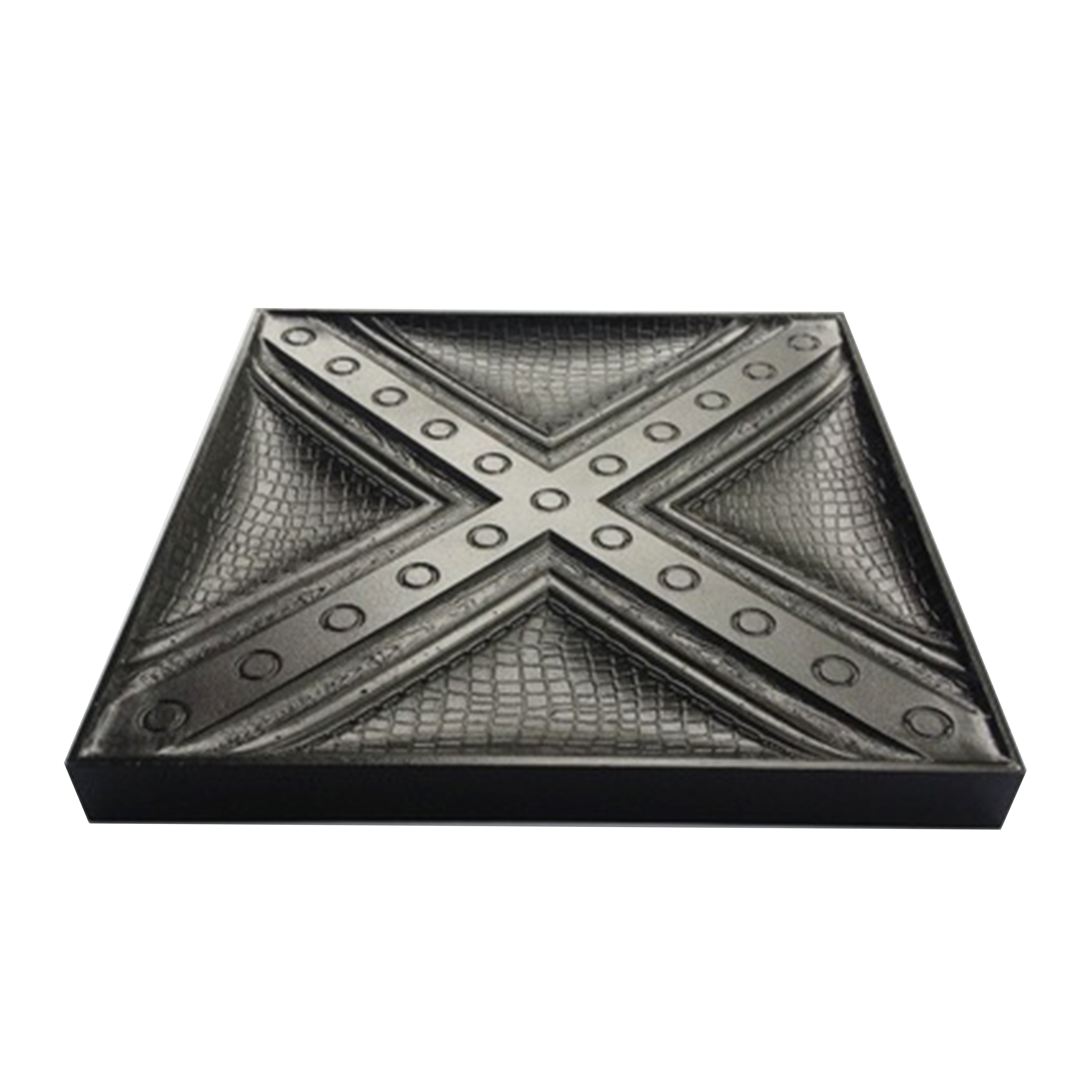

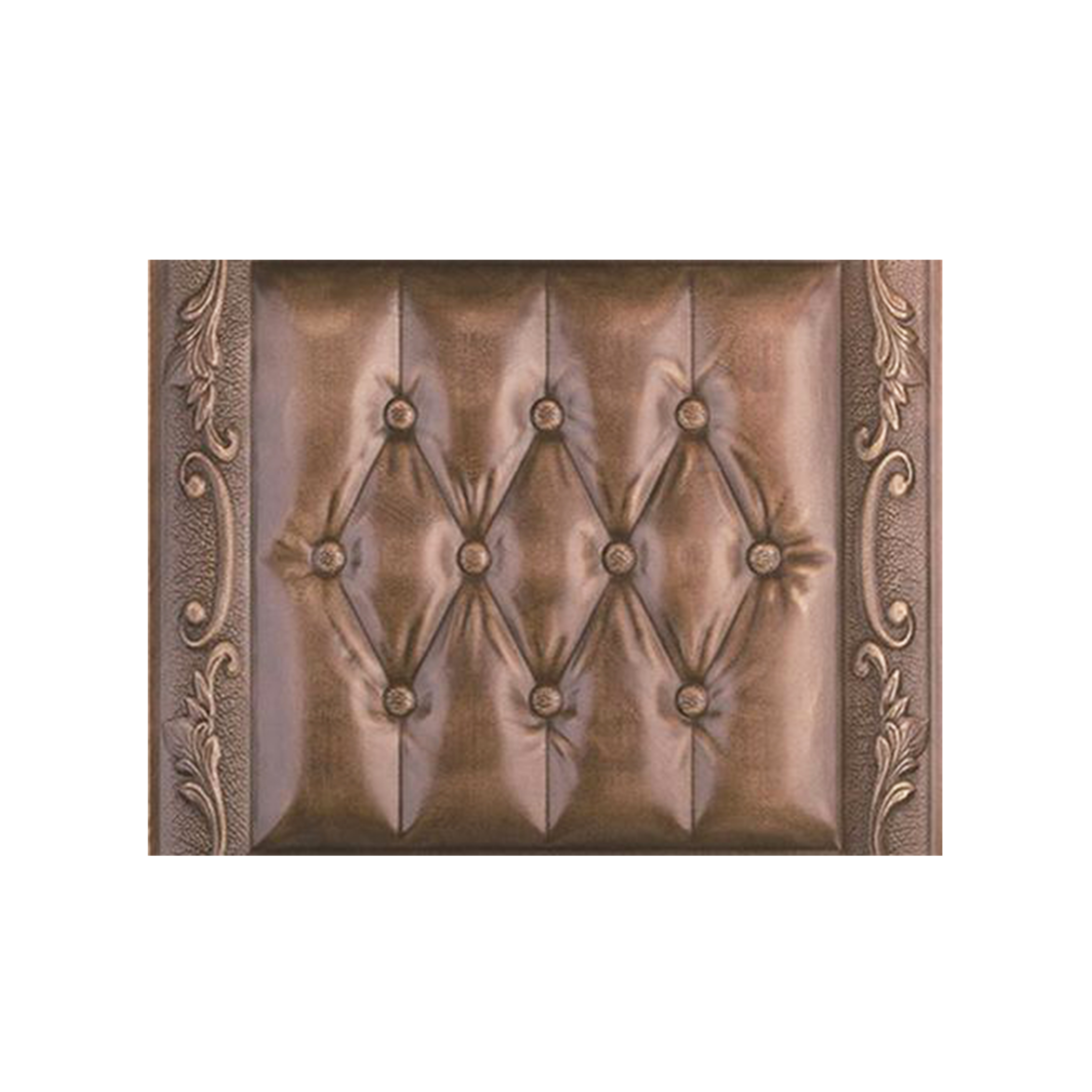

    3D soft panel4 3D soft panel5 3D soft panel6 3D soft panel7 3D soft panel11 3D soft panel12
