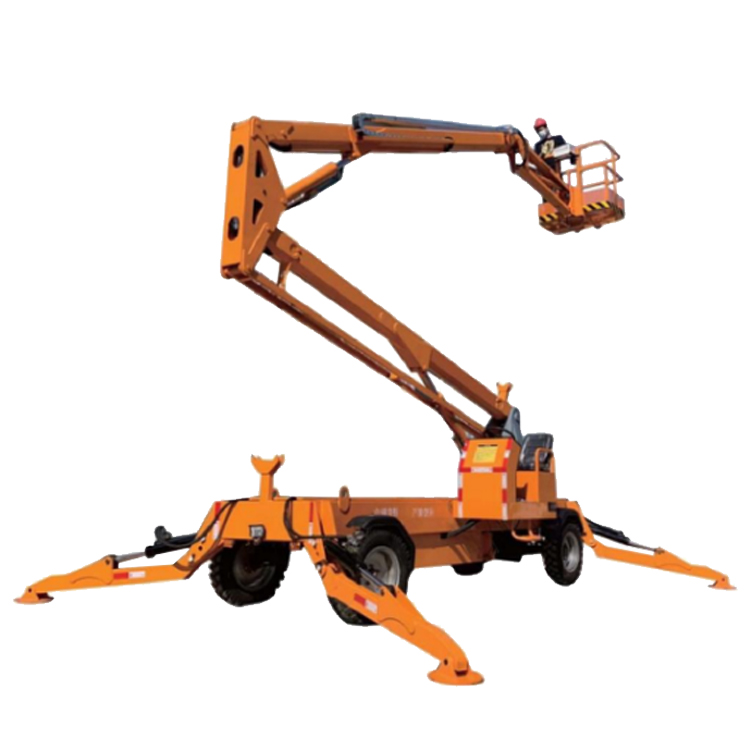

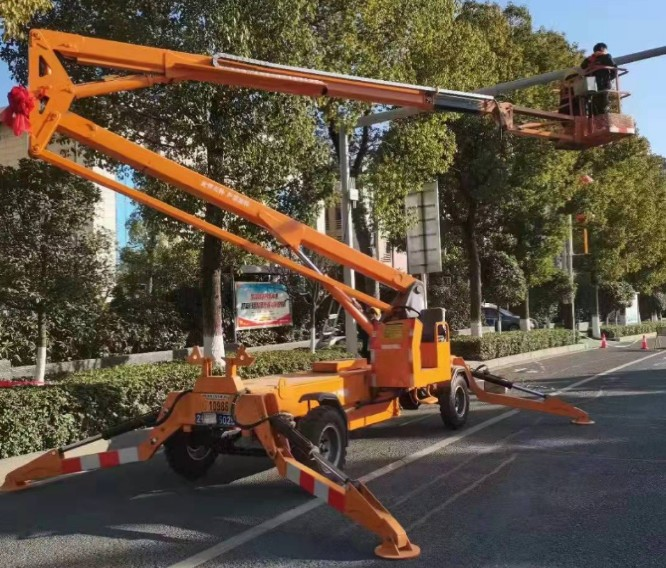

Folding Arm Lifting Platform Series Folding Arm Aerial Work Platform
- Strong power: large engine power, strong climbing ability
- Good safety performance: overload limit and anti-tilt protection system, anti-collision device and auto犀利士
matic detection of excessive amplitude, optional configuration - Oil cylinder: plated piston rod, good sealing and large bearing capacity
- Easy maintenance: the engine can be rotated out for maintenance, self-lubricating sliders are used, and the boom system is maintenance-free
- Thickening and stability: high-quality steel, high load-bearing and durable, stable performance
- Fall prevention: 1 meter high conventional guardrail, safe and reliable
- Stable lifting: high-strength manganese steel rectangular tube is used, with strong bearing capacity and stable operation
- Safe and stable: dedicated to research on various heights, stable and safe, up to 18 meters
| Product name |
Model |
Load/KG | Size：length, width and height（mm) |
platform size/MM |
Platform height/m |
Weight/kg |
Working radius(M) | Diesel engine/battery power |
Power |
Brake configuration | Outrigger form |
| 12 m(diesel battery dual-use)Folding arm lifting platform |
FJYZB12 |
200 |
6.2*1.8*2.18 |
1.20*0.70*1.10 |
12 |
3.2 |
7.2 |
D28 type 25hp（Changzhou Power) |
21kw |
Hydraulic brake (with supercharger) |
Frog leg type |
| 14 m(diesel battery dual-use)Folding arm lifting platform |
FJYZB14 |
200 |
6.2*1.8*2.3 |
1.20*0.70*1.10 |
14 |
3.4 |
8.5 |
D28 type 25hp（Changzhou Power) |
21kw |
Hydraulic brake (with supercharger) |
Frog leg type |
| 16 m(diesel battery dual-use)Folding arm lifting platform |
FJYZB16 |
200 |
6.2*1.8*2.3 |
1.20*0.70*1.10 |
16 |
3.8 |
9.5 |
D28 type 25hp（Changzhou Power) |
21kw |
Hydraulic brake (with supercharger) |
Frog leg type |
| 18 m(diesel battery dual-use)Folding arm lifting platform |
FJYZB18 |
200 |
7.9*2*2.3 |
1.20*0.70*1.10 |
18 |
4 |
10 |
D28 type 25hp（Changzhou Power) |
21kw |
Hydraulic brake (with supercharger) |
Frog leg type |
| 20 m(diesel battery dual-use)Folding arm lifting platform |
FJYZB20 (Compound arm) |
200 |
7*2*2.5 |
1.20*0.70*1.10 |
20 |
4.8 |
D28 type 25hp（Changzhou Power) |
21kw |
Hydraulic brake (with supercharger) |
Frog leg type |
|
| 16m (Diesel engine)Folding arm lifting platform |
FJYZB16C |
200 |
7.2*1.8*2.5 |
1.20*0.70*1.10 |
16 |
4.3 |
9.5 |
490 type 52hp（Huichai Power) |
38.6kw |
Air break brake |
H type |
| 18m (Diesel engine)Folding arm lifting platform |
FJYZB18C |
200 |
7.9*2*2.5 |
1.20*0.70*1.10 |
18 |
4.5 |
10 |
490 type 52hp（Huichai Power) |
38.6kw |
Air break brake |
H type |
| 20m (Diesel engine)Folding arm lifting platform |
FJYZB20C (Compound ar |
m 200 |
7*2*2.5 |
1.20*0.70*1.10 |
20 |
5 |
12 |
490 type 52hp（Huichai Power) |
38.6kw |
Air break brake |
H type |
| 12m (battery)Folding arm lifting platform | FJYZB12D |
200 |
6.2*1.8*2.18 |
1.20*0.70*1.10 |
12 |
3.1 |
7.2 |
260Ah/pcs 6v*12=72V | Hydraulic brake (with supercharger) |
Frog leg type |
|
| 14m (battery)Folding arm lifting platform | FJYZB14D |
200 |
6.3*1.8*2.3 |
1.20*0.70*1.10 |
14 |
3.6 |
8.5 |
260Ah/pcs 6v*12=72V | Hydraulic brake (with supercharger) |
Frog leg type |
|
| 16m (battery)Folding arm lifting platform | FJYZB16D |
200 |
6.3*1.8*2.3 |
1.20*0.70*1.10 |
16 |
3.8 |
9.5 |
260Ah/pcs 6v*12=72V | Hydraulic brake (with supercharger) |
Frog leg type |
|
| 18m (battery)Folding arm lifting platform | FJYZB18D |
200 |
7.9*2*2.5 |
1.20*0.70*1.10 |
18 |
4 |
10 |
260Ah/pcs 6v*12=72V | Hydraulic brake (with supercharger) |
Frog leg type |
|
| 20m (battery)Folding arm lifting platform | FJYZB20D |
200 |
7*2*2.5 |
1.20*0.70*1.10 |
20 |
260Ah/pcs 6v*12=72V | Hydraulic brake (with supercharger) |
Frog leg type |
