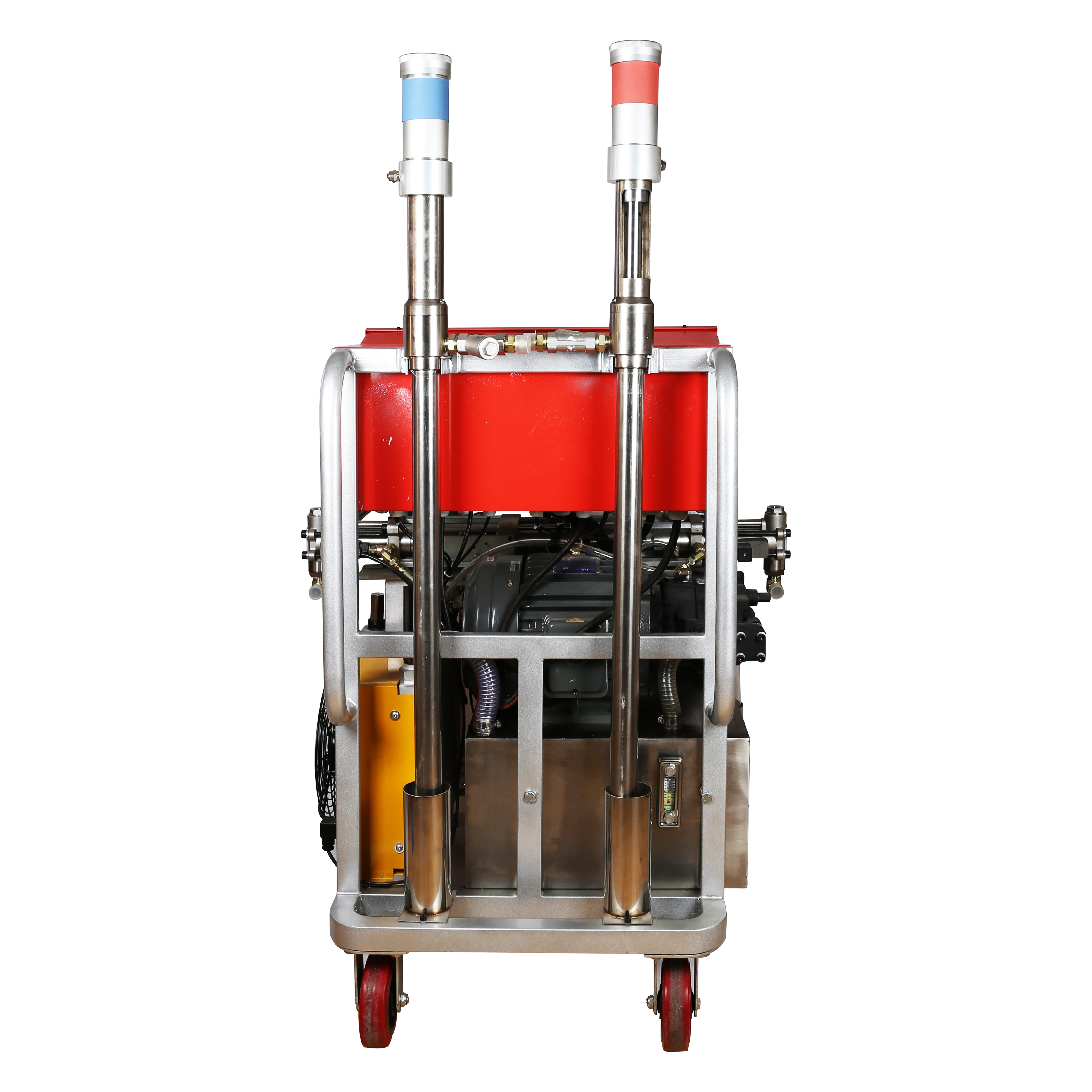

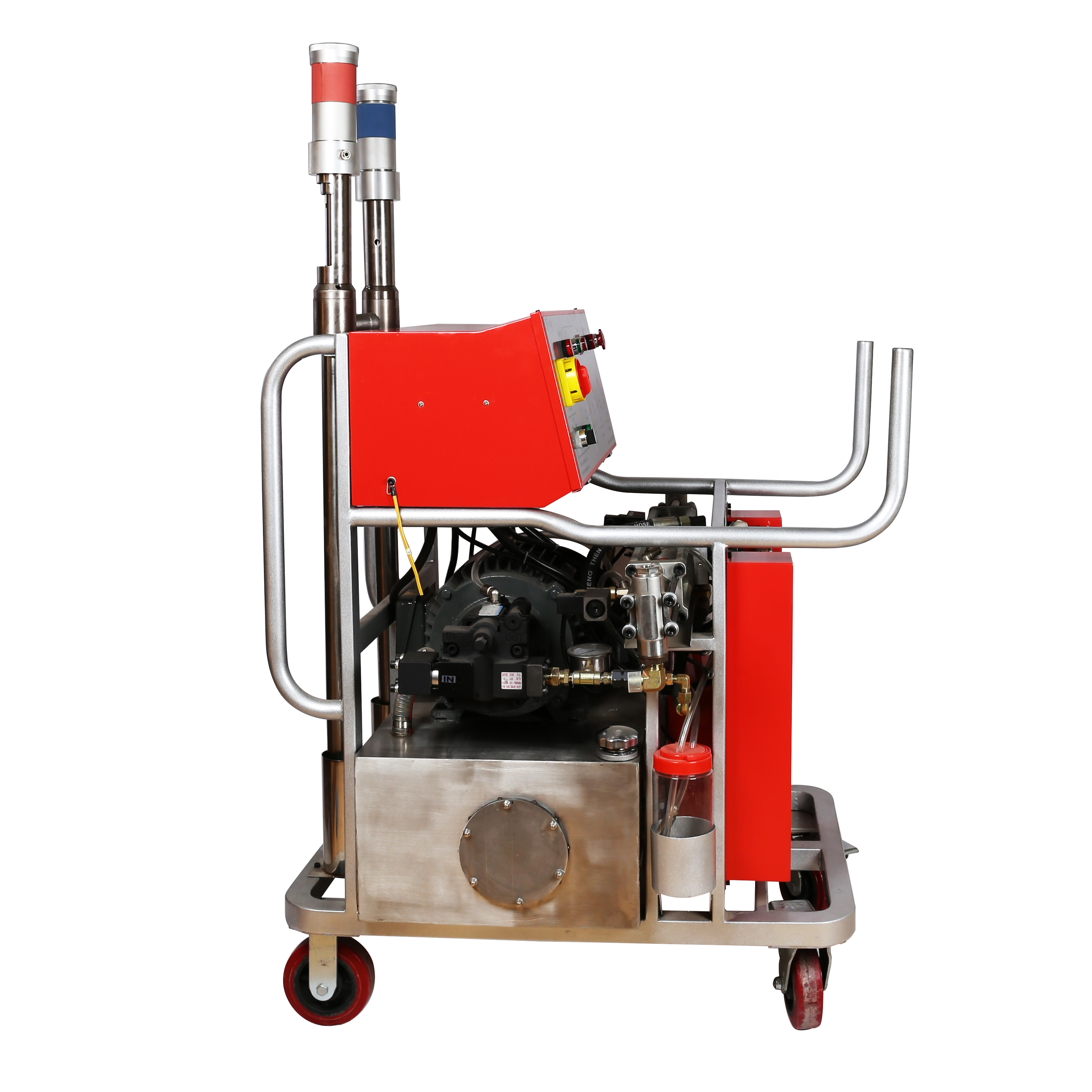

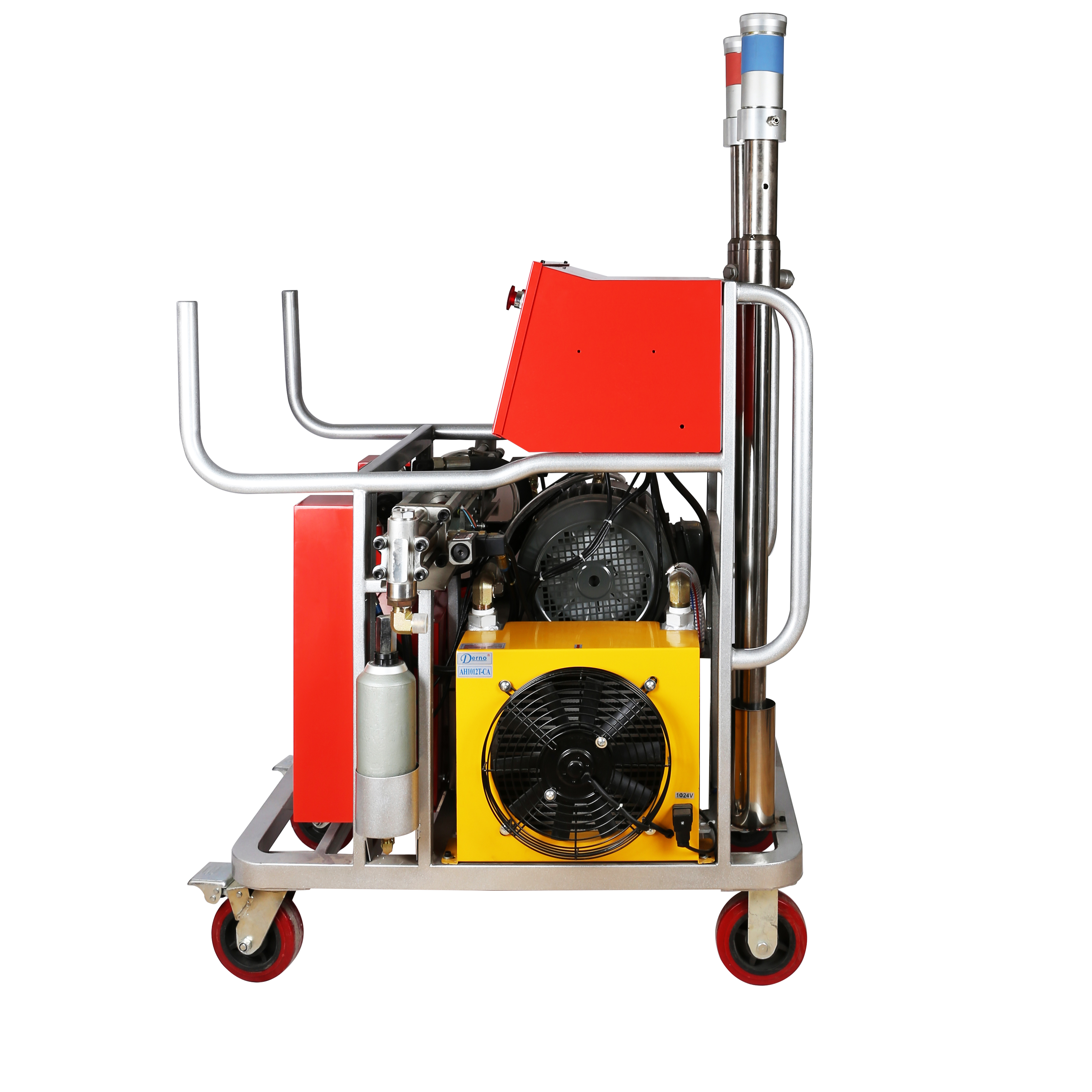

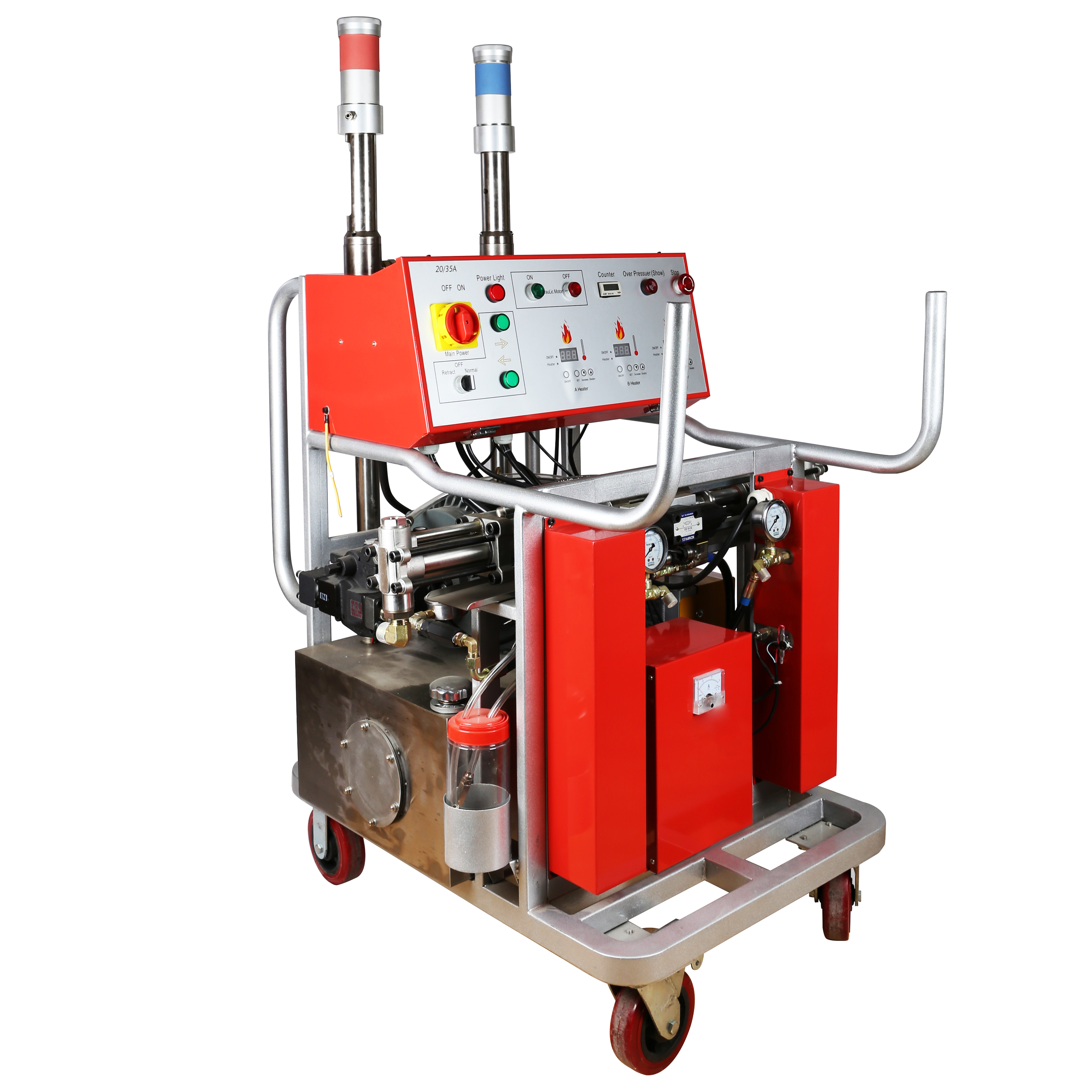

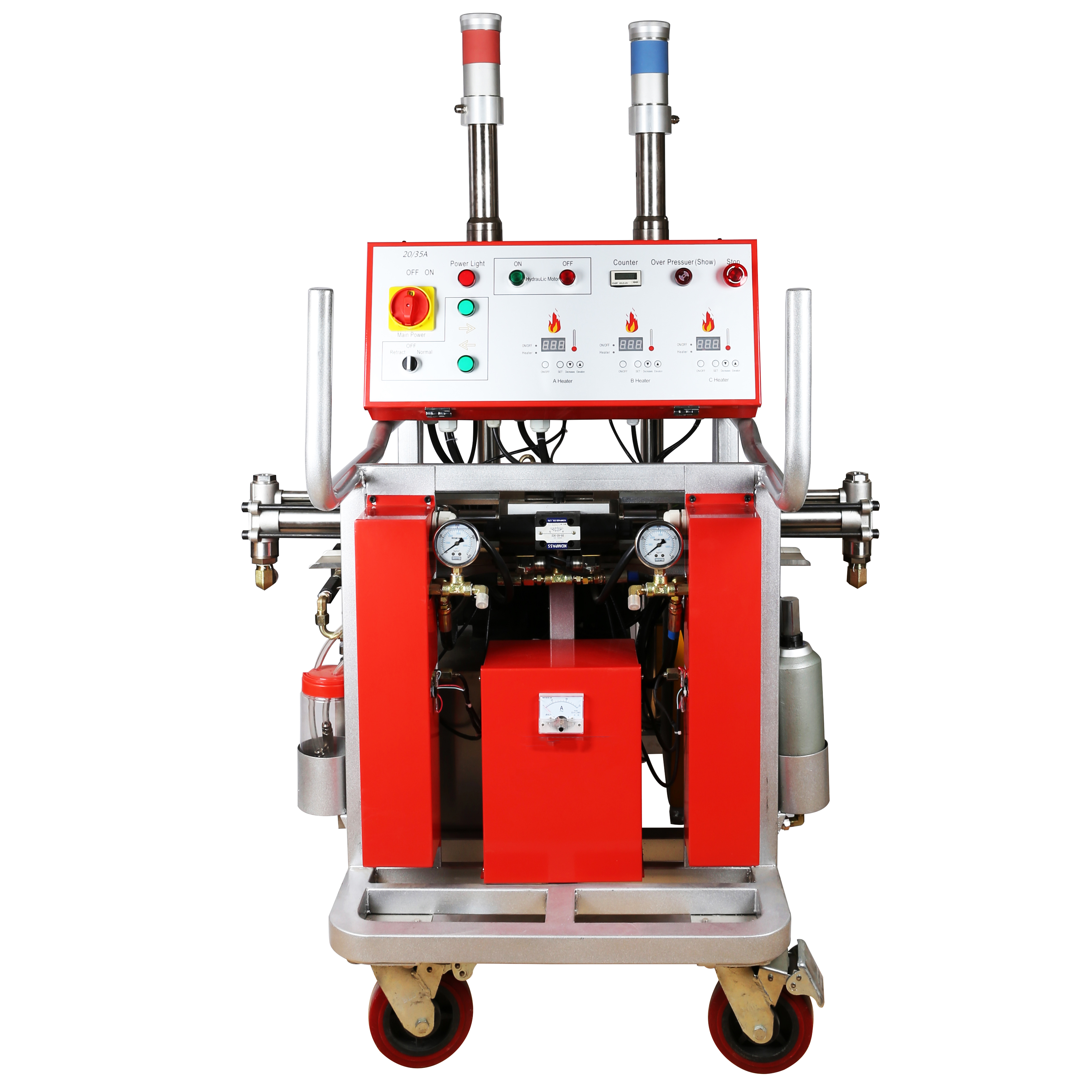

JYYJ-HN35 Polyurea Horizontal Spraying Machine
The booster adopts hydraulic horizontal drive, the output pressure of raw materials is more stable and strong, and the work efficiency is increased.
The equipment is equipped with a cold air circulation system and樂威壯
an energy storage device to meet long-term continuous work.
The smart and advanced electromagnetic commutation method is adopted to ensure the stable spraying of the equipment and the continuous atomization of the spray gun.
The open design is convenient for equipment maintenance and meets a wider range of construction sites
The main heating power of the equipment is high, the pipeline is equipped with uniform external copper sheet heating, and the material heating is more sufficient and uniform
Proportional pump barrel, material-lifting piston, and working pump head are made of high wear-resistant and high-strength materials to reduce seal wear and prolong service life
The feeding system adopts a closed TB feeding pump and is equipped with a lubricating oil cup, which makes feeding easy and worry-free
The whole machine is simple and user-friendly, the operation is more convenient, quick and easy to understand, and the failure rate is low
Applicable to a variety of spray guns, wide working area
| Model | JYYJ-HN35 |
| Medium Raw Material | Polyurea (Polyurethane) |
| Maximum Fluid Temperature | 90℃ |
| Maximum Output | 12kg/min |
| Maximum Working Pressure | 25Mpa |
| heating power | 17kw |
| Hose Maximum Length | 90m |
| Power Parameters |
380V-45A
|
| drive Mode | Horizontal Hydraulic |
| Volume Parameter |
1000*980*1150
|
| Package Dimensions |
1095*1020*1220
|
| Net Weight |
236kg
|
| Package Weight |
300kg
|
| Host | 1 |
| Feed Pump | 1 |
| Spray Gun | 1 |
| Heating Insulation Pipe | 15m |
| Side Tube | 1 |
| Feed Tube | 2 |
Chemical storage tank anticorrosion, pipeline anticorrosion, demineralized water tank, wear-resistant lining, hull anticorrosion and thermal insulation, buoyant material application, subway, tunnel, paradise, industrial floor, waterproof engineering, sports engineering, hydropower engineering, thermal insulation engineering, etc.
