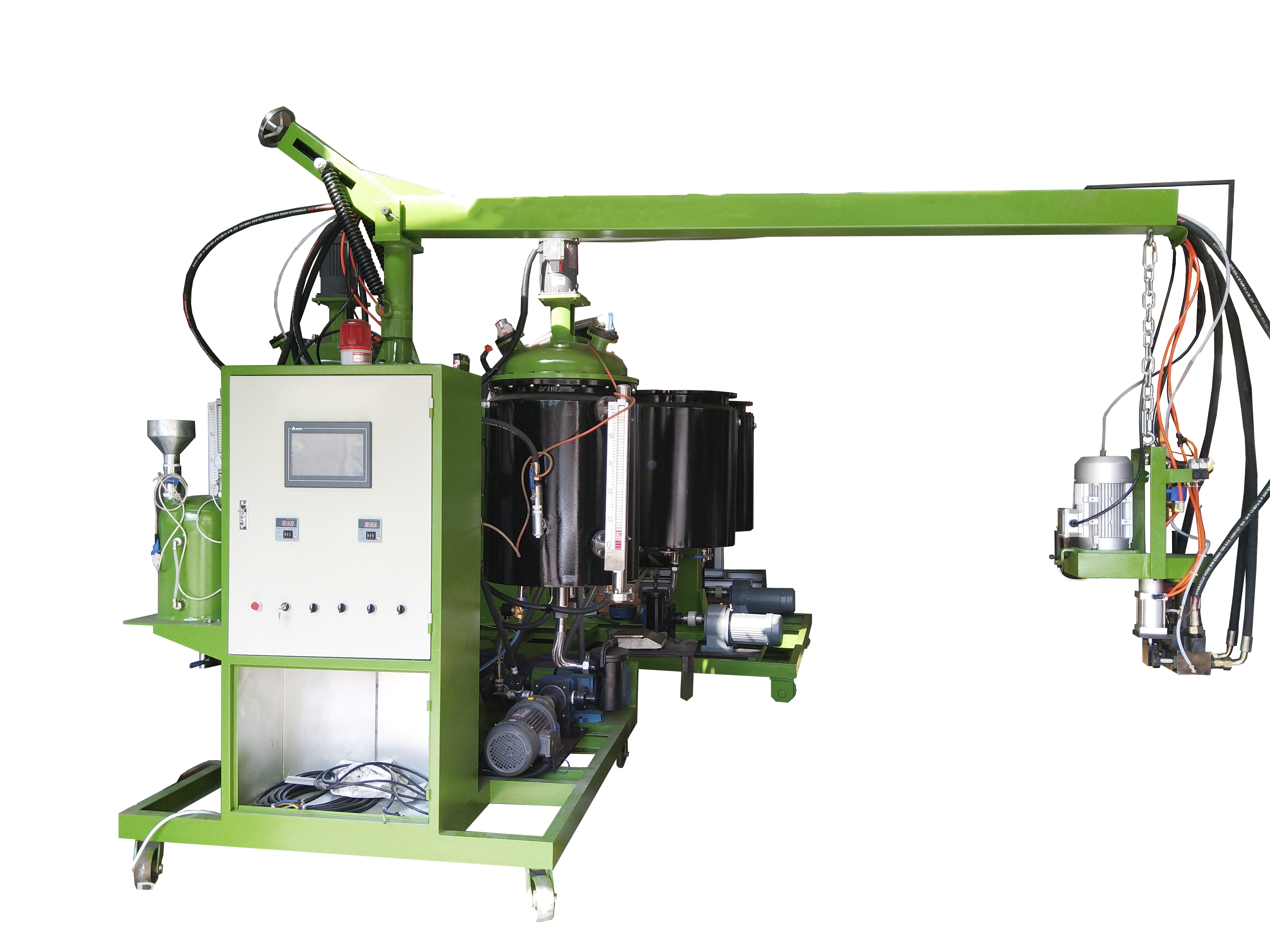

Polyurethane Cornice Making Machine Low Pressure PU Foaming Machine
1.For sandwich type material bucket, it has good heat preservation
2.The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation was absolutely clear.
3.Head connected with the operation system, easy for operation
4.The adoption of new type mixing head makes the mixing even, with the characteristic of low noise, sturdy and durable.
5.Boom swing length according to the requirement, multi-angle rotation, easy and fast
6.High precision pump lead to measuring accurately
7.Easy for maintenance, operation and repair.
8.Low energy consumption.

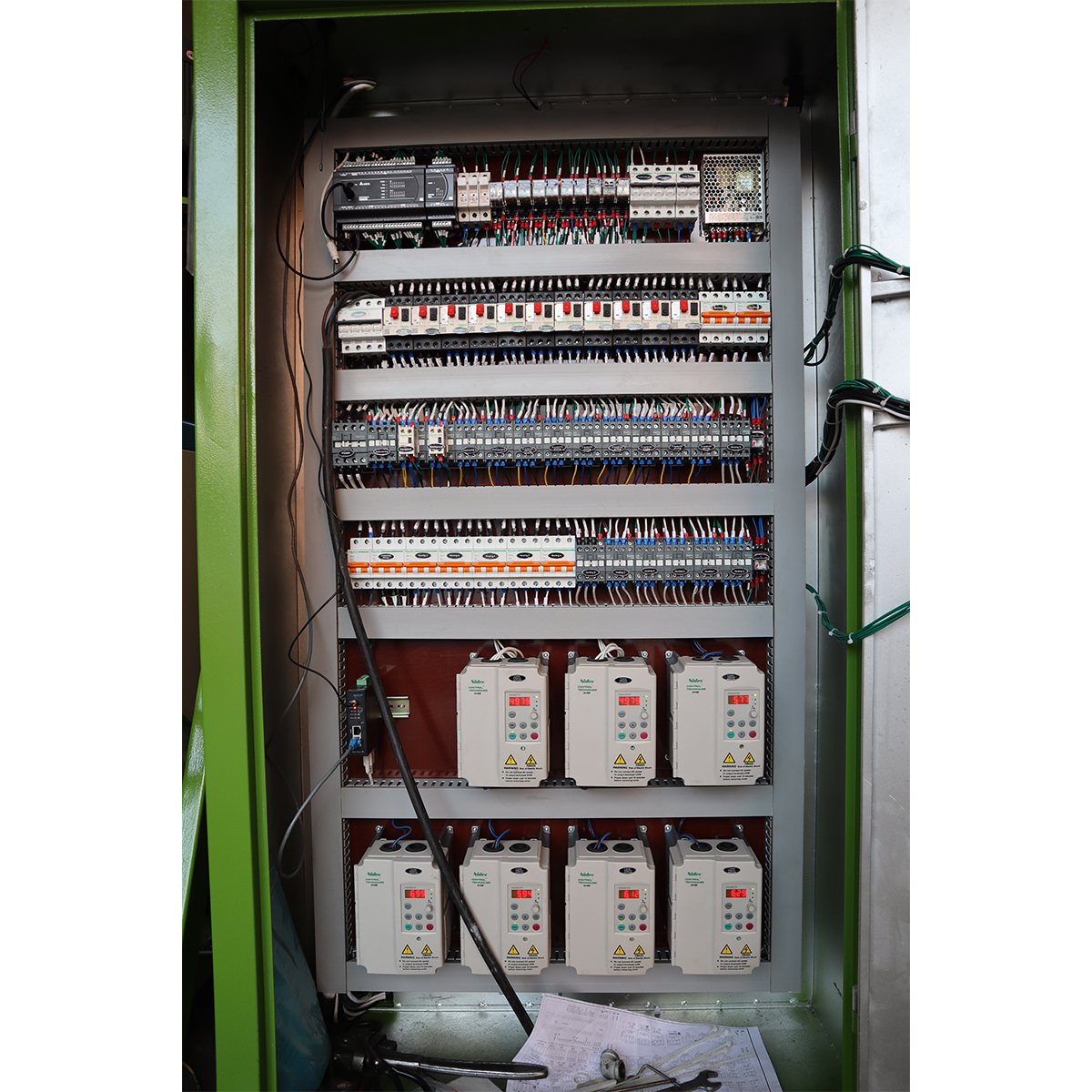

Electrical cotrol system:
Composed of Power switch, air switch,A.C. Contactor and whole machine engine power, heat lamp control element line,digital display temperature controller, digital display manometer, digital display tachometer, PC programmable controller(pouring time and automatic cleaning) to keep machine in good condition.manometer equipped with overpressure alarm to keep metering pump and material pipe from damage due to overpressure.

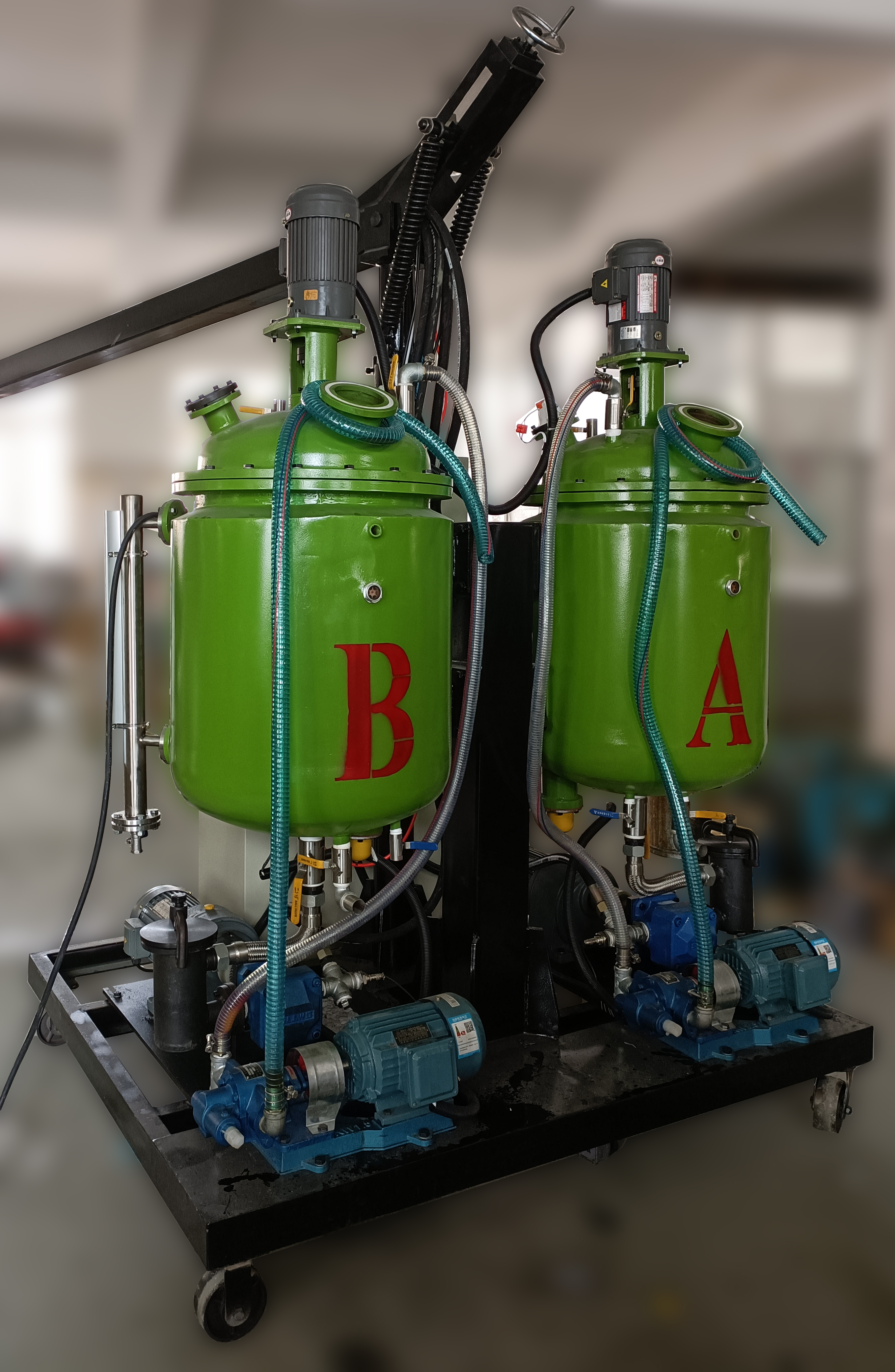

Material Tank:
Double interlining heating material tank with insulation outer layer, heart rapidly, low energy consumption. Liner, upper and low head all use stainless 304 material, upper head is precision machinery sealing equipped to make sure the air tight agitation.
|
Item |
Technical parameter |
|
Foam application |
Wood Imitation Cornice |
|
Raw material viscosity(22℃) |
POL ～3000CPS ISO ～1000MPas |
|
Injection flow rate |
130-500g/s |
|
Mixing ratio range |
100:50～150 |
|
Mixing head |
2800-5000rpm, forced dynamic mixing |
|
Tank Volume |
120L |
|
Input power |
Three-phase five-wire 380V 50HZ |
|
Rated power |
About 12KW |
|
Swing arm |
Rotatable 90°swing arm, 2.3m (length customizable) |
|
Volume |
4100(L)*1300(W)*2300(H)mm, swing arm included |
|
Color( customizable) |
Cream-colored/orange/deep sea blue |
|
Weight |
About 1000Kg |

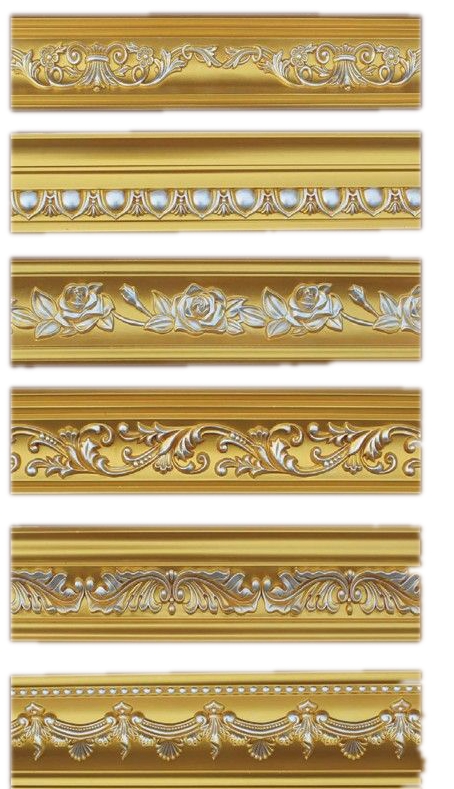

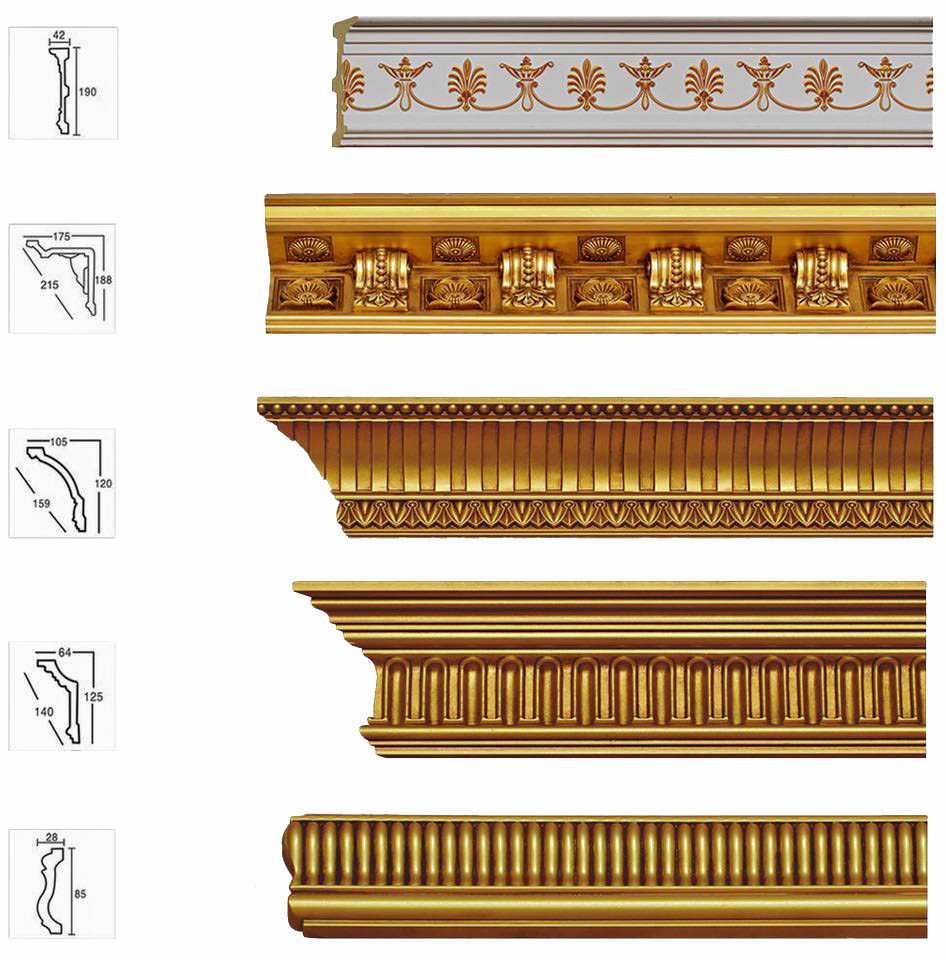

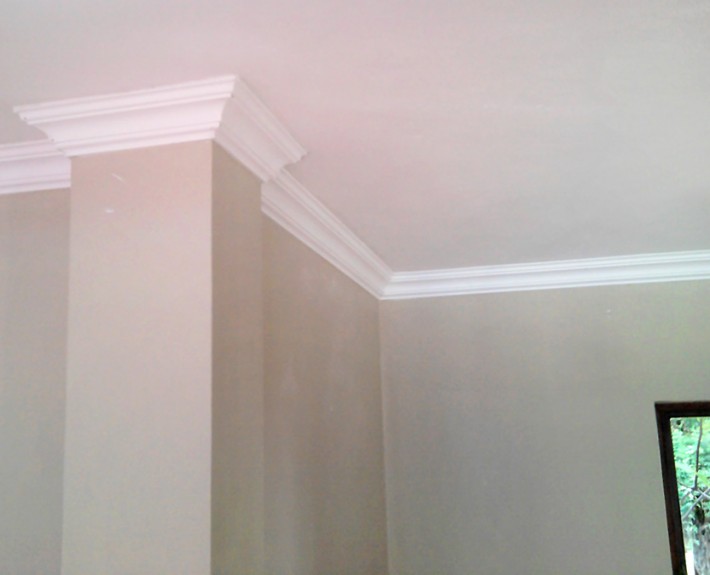

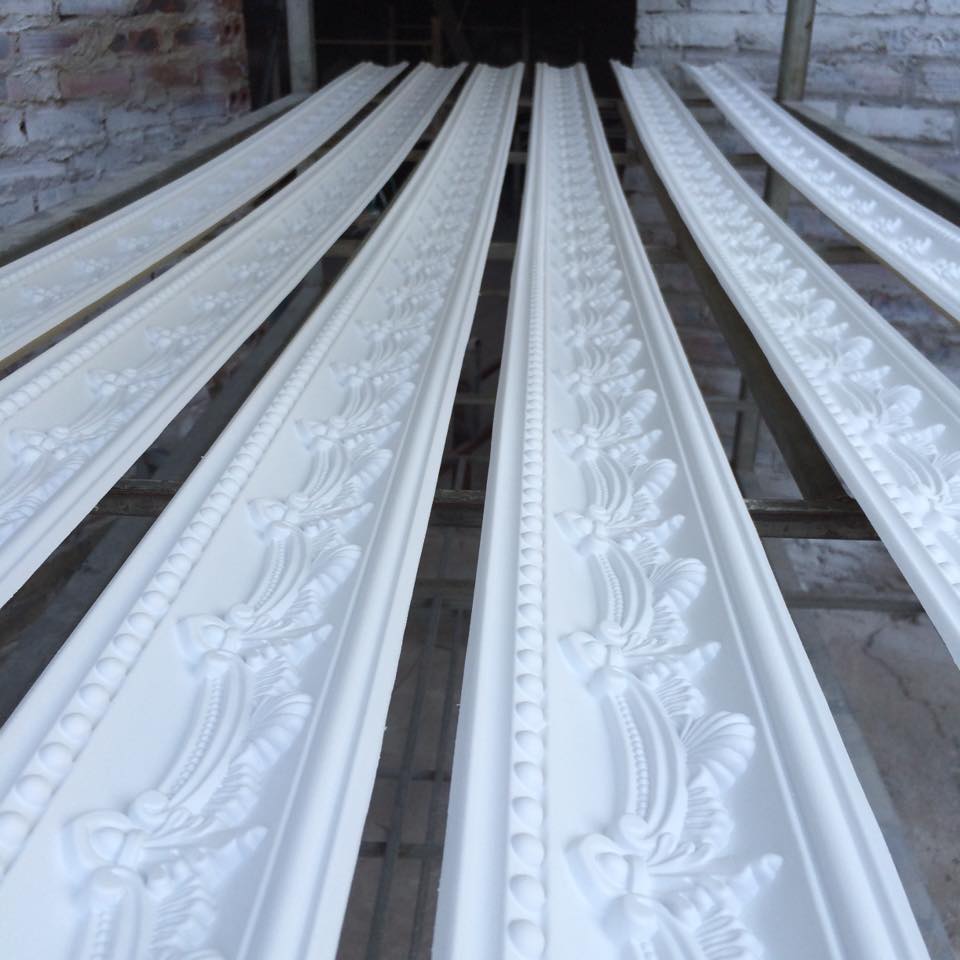

The pu line is resistant to moth, moisture, mildew, acid and alkali, will not be cracked or deformed by weather changes, washable, long service life, flame retardant, non-spontaneous, non-combustible, and can be automatically extinguished when it leaves the fire source. PU decorative lines are exquisite in shape and tend to be European-style, so they are widely used in various European-style buildings.
Related products
-

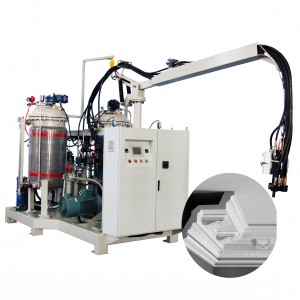

Decorative Cornice Foaming Polyurethane Crown M...
Polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer’s request various pours out of the machine. This polyurethane foaming machine uses two raw materials, polyurethane and Isocyanate. This type of PU foam machine can be used in various industries, such as daily necessities, automobile decoration, medical equipment, sports industry, leather footwear, packaging industry, furniture industry, military industry.
-

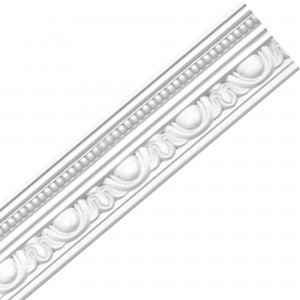

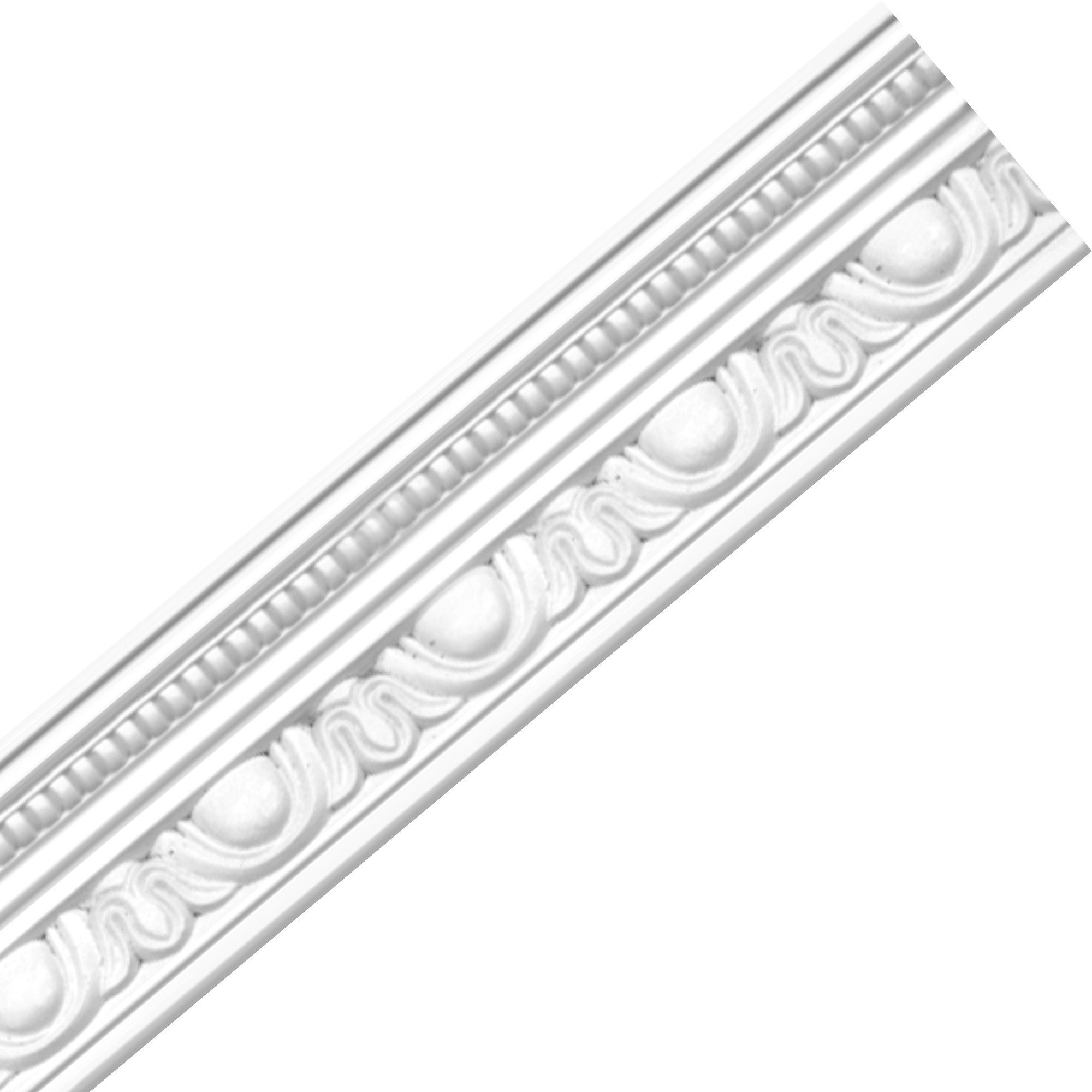

PU Cornice Mold
