Polyurethane Elastomer TDI System Casting Machine for CPU Scrapers

Short Description:


Introduction

Features

Specification

Application

Product Tags

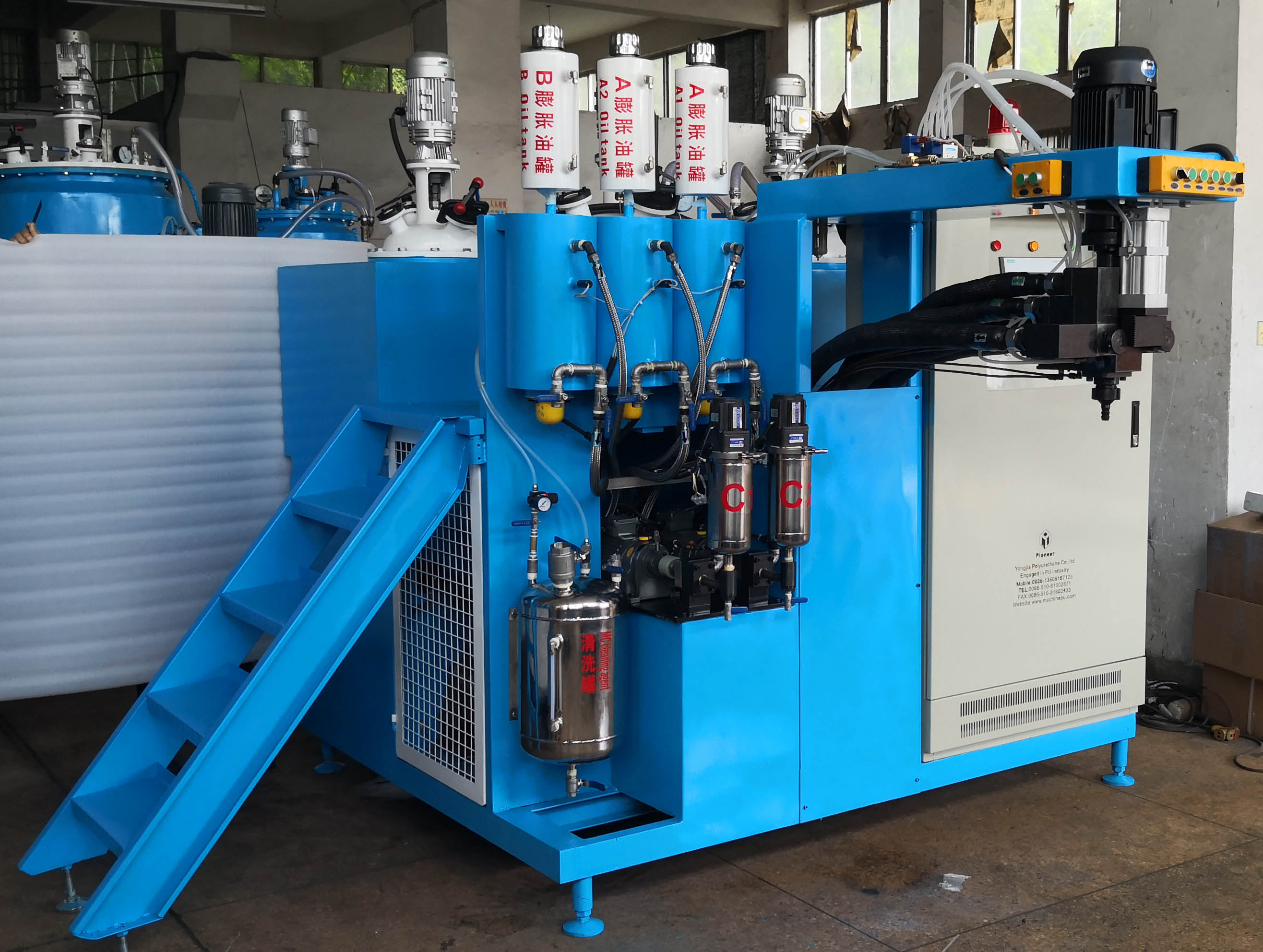

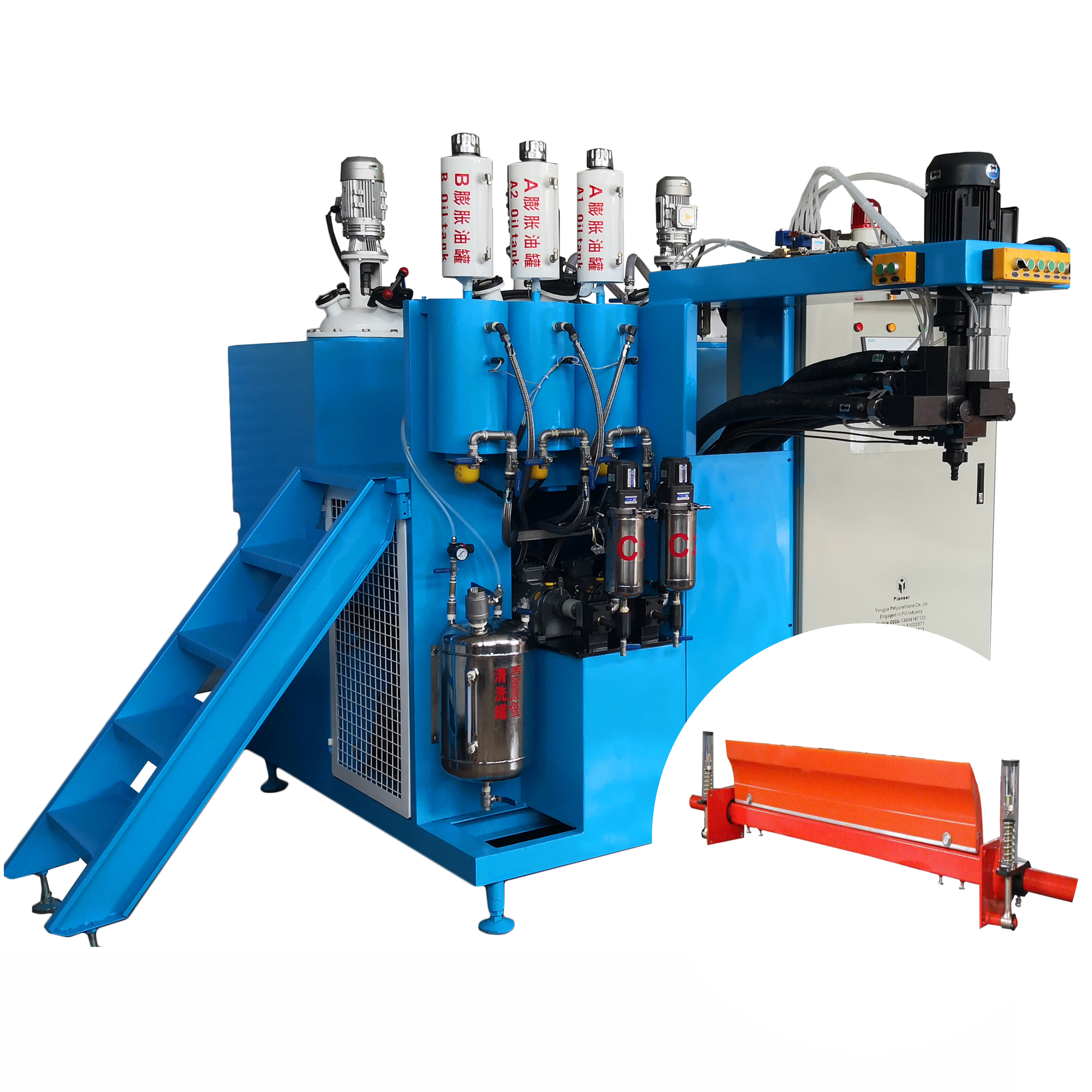

Polyurethane elastomer casting machine is mainly used to produce polyurethane products, such as polyurethane puff, insole, sole, rubber roller, rubber wheel and other products. It is mixed with two different polyurethane raw material A and B and casting into the mold for molding. Compared with manual pouring, the polyurethane elastomer casting machine has stable pouring quality and higher production efficiency.


  • Previous:
  • Next:

  • The polyurethane elastomer casting machine can be used for the production of CPU products such as TDI, MDI and other prepolymer amine cross-linking or alcohol cross-linking systems. Compared with traditional manual casting, the polyurethane elastomer casting machine has the following advantages:

    1. The ratio is accurate and the measurement is stable. The high-precision temperature and pressure-resistant metering pump and precision transmission are used to adjust and display the device. The measurement accuracy is within 1%.

    2. Mix evenly without bubbles. A special structure of high-speed mixing head is used. When the viscosity and ratio of the two components are greatly different, the mixing can be ensured evenly, so that the products produced are free of bubbles.

    3. The temperature is stable, accurate and controllable.

    dav

    No.

    Item

    Technical Parameter

    1

    Injection Pressure

    0.1-0.6Mpa

    2

    Injection flow rate

    1000-3500g/min

    3

    Mixing ratio range

    100:1020adjustable

    4

    Injection time

       0.599.99S (correct to 0.01S)

    5

    Temperature control error

    ±2℃

    6

    Repeated injection precision

    ±1%

    7

    mixing head

    Around 4800rpm, forced dynamic mixing

    8

    Tank volume

    A200L     B30L

    9

    Metering pump

     AJR20     BJR2.4   S0.6

    10

    compressed air requirement

    dry, oil freeP0.6-0.8MPa

    Q600L/minCustomer-owned

    11

    Vacuum requirement

    P6X10-2Pa

    speed of exhaust8L/S

    12

    Temperature control system

    Heating: 15KW

    13

    Input power

    three-phrase five-wire380V 50HZ

    14

    Rated power

    20KW

    15

    swing arm

    Fixed arm, 1 meter

    16

    Volume

    about 3200*2000*2500(mm)

    17

    Color (selectable)

    deep blue

    18

    Weight

     1500Kg

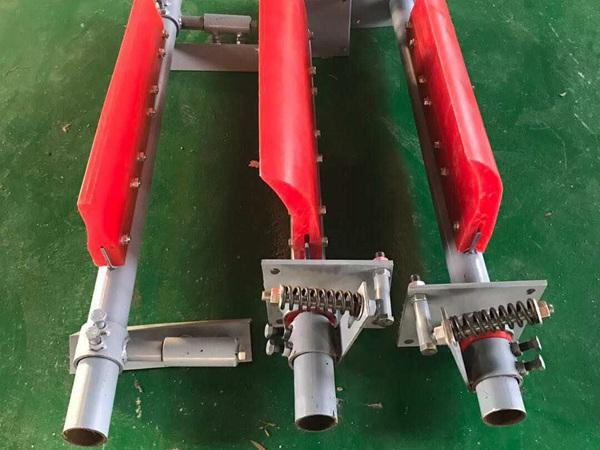

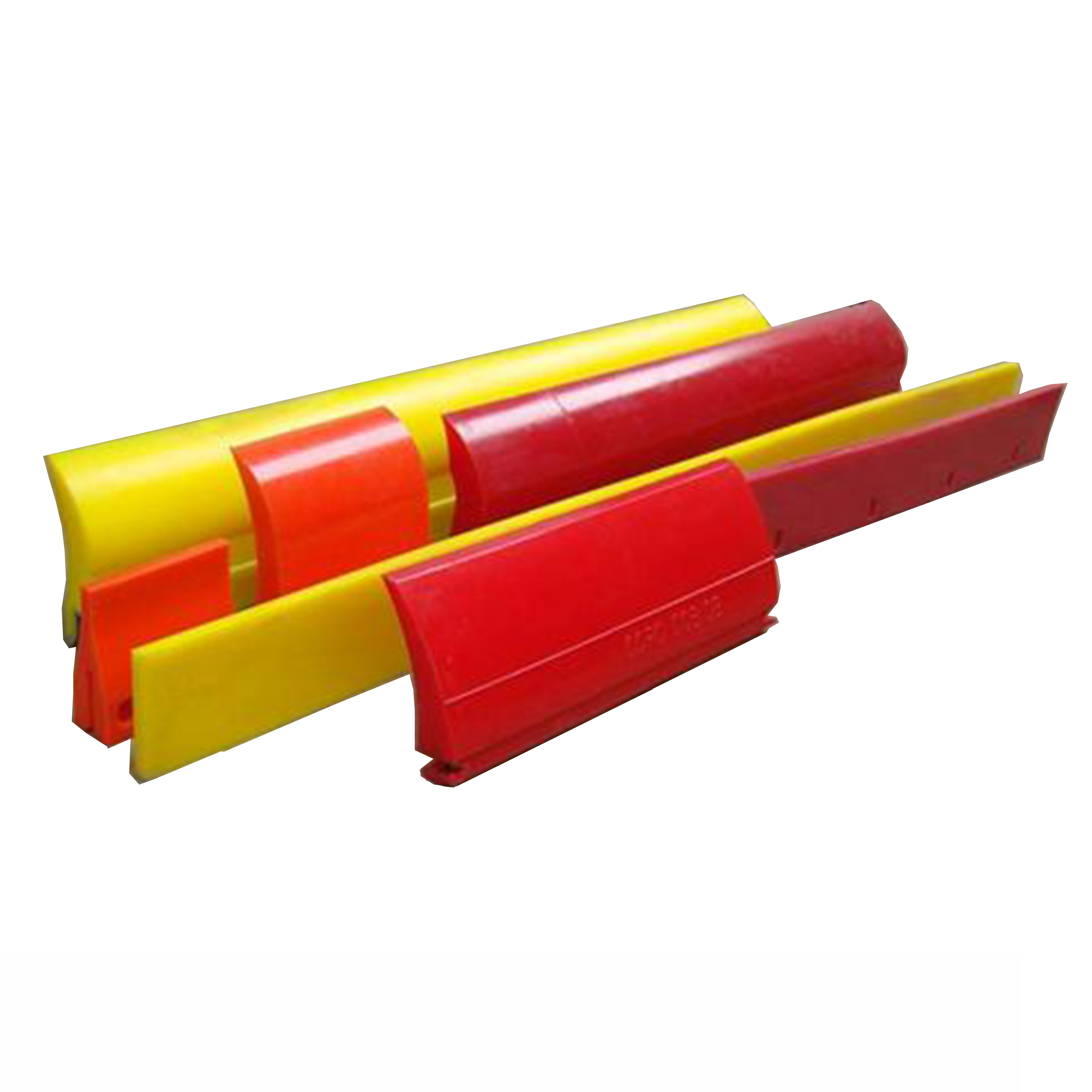

    Polyurethane scraper has high abrasion resistance, aging resistance, solvent resistance, and long service life. According to the different use environment, the hardness of the product is widely selected: ShoreA40-ShoreA95, choose different hardness and different materials for different working conditions. Polyurethane squeegee is also called PU squeegee. It is used on coal and chemical conveyor belts to remove adhered ash powder and powder materials, such as coal transportation, fertilizer transportation, and sand transportation.

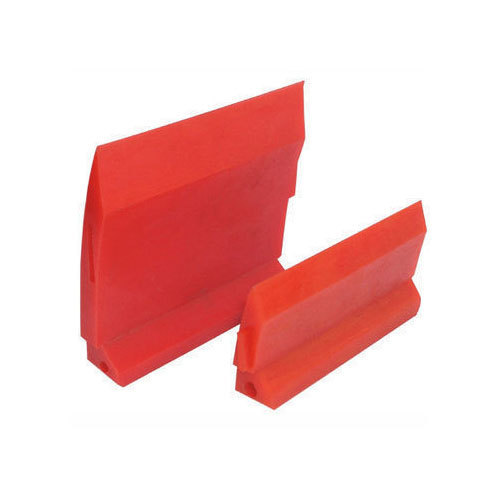

    polyurethane-scraper-blade-500x500timg (1)
