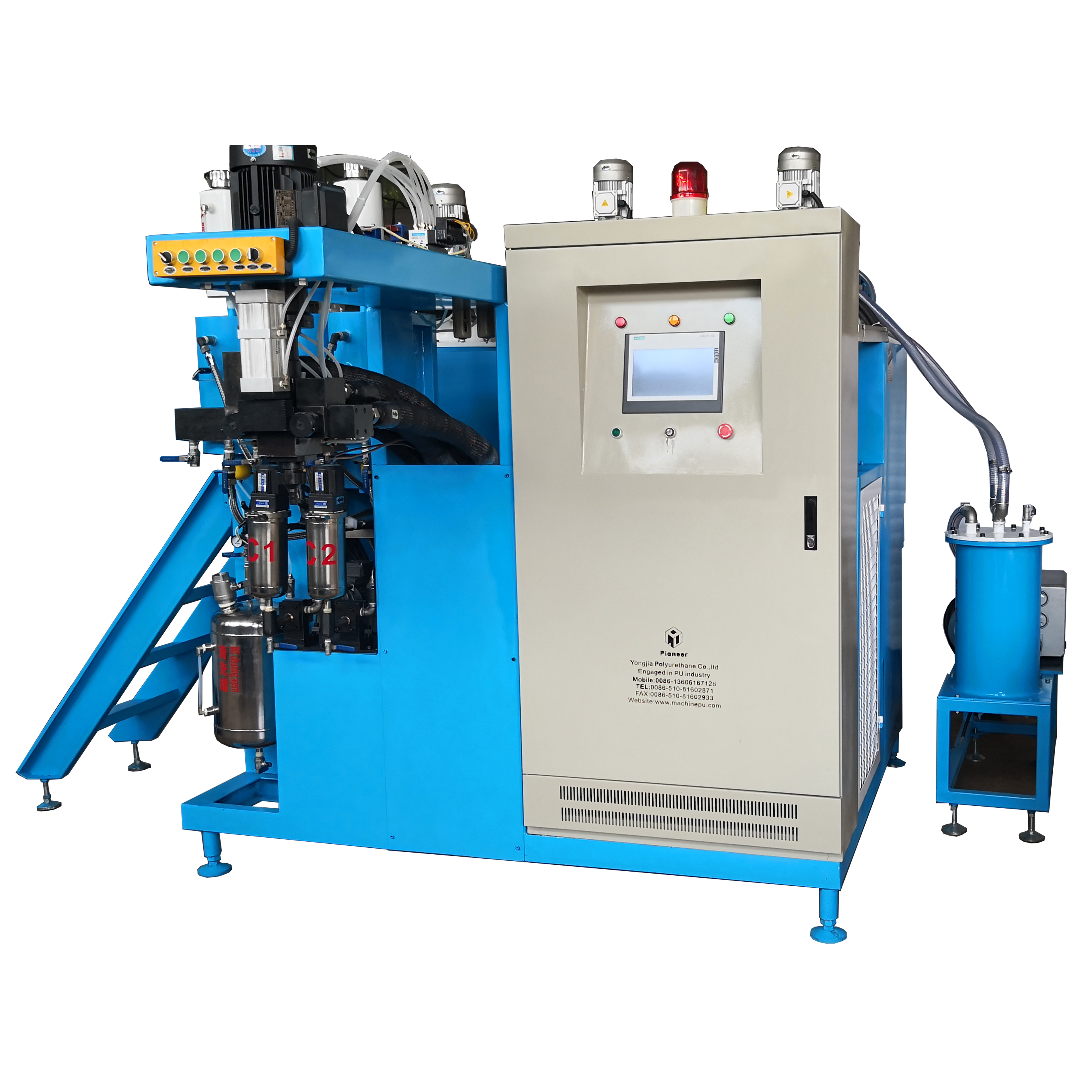

PU Elastomer Casting Machine Polyurethane Universal Wheel Making Machine

Short Description:

Casting type PU elastomer is used to produce MOCA or BDO as chain extender.PU elastomer casting machine has the features of easy operation, safety and wide application. It is suitable for manufacturing various CPUs such as seals, grinding wheels, rollers, sieves, impellers, OA machines.


Introduction

Details

Specification

Application

Product Tags

Casting type PU elastomer is used to produce MOCA or BDO as chain extender.PU elastomer casting machine has the features of easy operation, safety and wide application. It is suitable for manufacturing various CPUs such as seals, grinding wheels, rollers, sieves, impellers, OA machines, pulleys, buffers and other products.

Feature:

1. Metering pump: high temperature resistance, low speed, high accuracy, random error within ±0.5%.

2. Discharge quantity: Adopt frequency conversion motor with frequency conversion to regulate speed. With high pressure, high precision, fast proportional control is simple and quick.

3. Mixing device: high performance, adjustable pressure, accurate and synchronized discharge, uniform mixing. And the new mechanical structure seal, effectively solve the problem of reflux.

4. Vacuum device: with the characteristics of high efficiency. Special mixing head is used to ensure that the product is bubble-free.

5. Heat-conducting oil adopts electromagnetic heating method, high efficiency and energy saving; multi-point temperature control system to ensure stable temperature and random error <±2℃.

6. PLC and touch screen human-machine interface: with automatic cleaning and rinsing and air blowing function. High stability performance and operability, automatic distinction, diagnosis and alarm for abnormal conditions, and display of abnormal factors.


  • Previous:
  • Next:

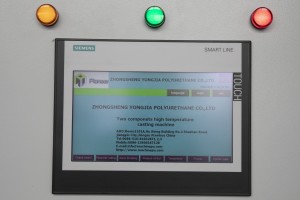

  • 1A4A9461

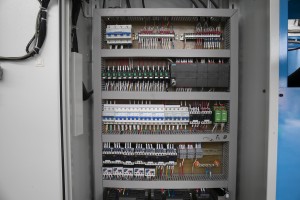

    1A4A9463

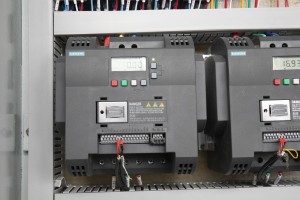

    1A4A9466

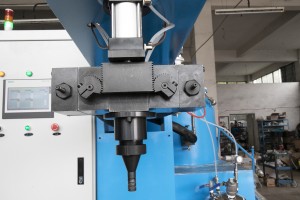

    1A4A9458

    Item

    Technical Parameter

    Injection Pressure

    0.01-0.1Mpa

    Injection flow rate

    85-250g/s 5-15Kg/min

    Mixing ratio range

    100:10~20(adjustable)

    Injection time

    0.599.99S (correct to 0.01S)

    Temperature control error

    ±2℃

    Repeated injection precision

    ±1%

    Mixing head

    Around 6000rpm, forced dynamic mixing

    Tank volume

    250L /250L/35L

    Metering pump

    JR70/ JR70/JR9

    Compressed air requirement

    Dry, oil free P:0.6-0.8MPa Q:600L/min(Customer-owned)

    Vacuum requirement

    P:6X10-2Pa Speed of exhaust:15L/S

    Temperature control system

    Heating: 31KW

    Input power

    Three-phrase five-wire,380V 50HZ

    Rated power

    45KW

    Swing arm

    Fixed arm, 1 meter

    Volume

    About 2000*2400*2700mm

    Color (selectable)

    Deep blue

    Weight

    2500Kg

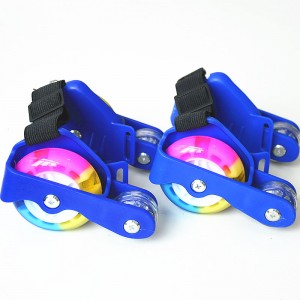

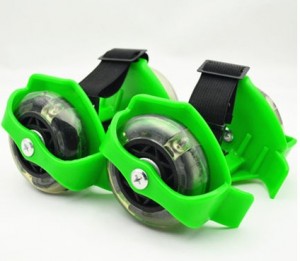

    Pu elastomer casting machine is suitable for producing CPU wheels, casters, rollers, sieve plates, impellers, sealing rings, bushings, shock absorbers, insoles, fork wheels, luggage wheels, dumbbells, etc.

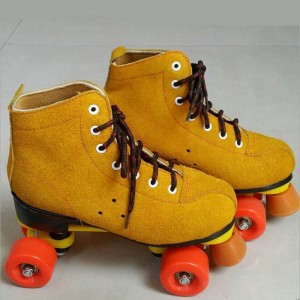

    16e343636de119176834bae3fe5d7cc8 big_b0bd40c95019449cd56de7f39caeb5c8 TB2TwBlqVXXXXb4XpXXXXXXXXXX_!!686806563
