Solar Insulation Pipeline Polyurethane Processing Equipment

Short Description:


Introduction

Details

Specification

Applications

Video

Product Tags

olyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer’s request various pours out of the machine.
This polyurethane foaming machine uses two raw materials, polyurethane and Isocyanate. This type of PU foam machine can be used in various industries, such as daily necessities, automobile decoration, medical equipment, sports industry, leather footwear, packaging industry, furniture industry, military industry.

PU Polyurethane Foam Pipeline Production Equipment

Pipelines are commonly used equipment in industrial production and are widely used in petroleum, natural gas, refining, chemical, light industry and other industries. As a pipeline insulation material, PU rigid foam is widely used in pipeline insulation of crude oil transportation pipelines and petrochemical industries, and has successfully replaced materials with high water absorption such as perlite.





  • Previous:
  • Next:

  • Product Features of High Pressure PU Machine:

    1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
    2.Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
    3.Low speed high precision metering pump, accurate ratio, random error within ±0.5%;
    4.Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
    5.High-performance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime;
    6.Adopting PLC and touch screen man-machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors.

     QQ图片20171107104618

    Detailed Images

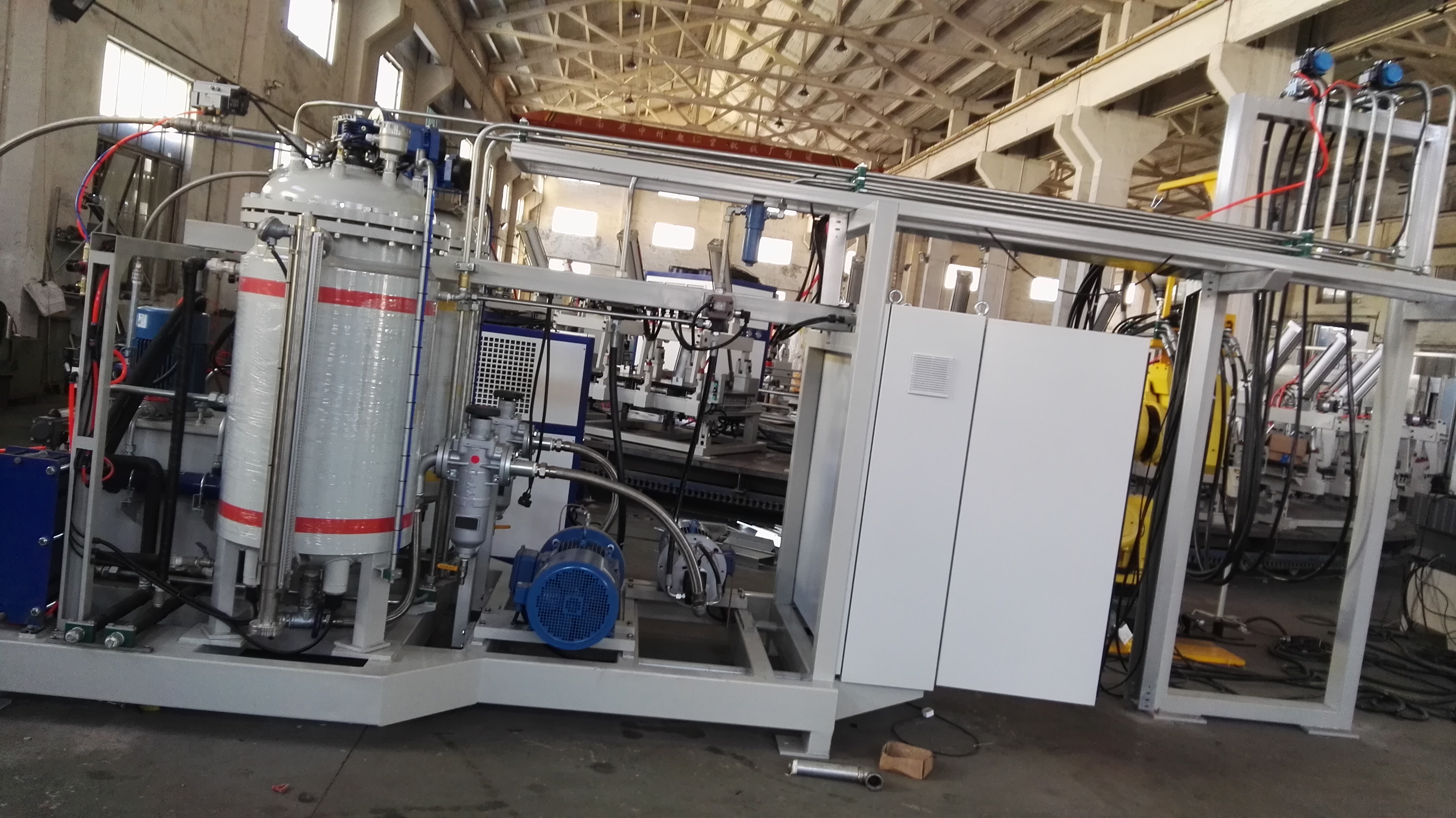

    Material tank

    This is the storage tank A and B tank of the polyurethane high pressure machine. Polyurethane and Isocyanate raw materials are separately installed.
    Material of the tank: SS304
    Size of feeding flange: φ150
    Capacity: 250L
    Quantity: 2

    Mixing head

    The mixing head adopts floating mechanical seals, and its high shear mixing screw head, which can mix two materials (Polyurethane and Isocyanate) with better performance.The raw materials are stirred at high speed in the mixing chamber by stirring blades to achieve a mixing effect, so that the liquid is uniformly sprayed to form a desired product.

    QQ图片20171107104122

    Electrical control system

    1. Fully controlled by SCM (Single Chip Microcomputer).
    2. Using PCL touch screen computer. Temperature,pressure, revolving speed display system.
    3. Alarm function with acoustic warning.

    No. Item Technical parameter
    1 Foam application Flexible Foam
    2 Raw material viscosity(22℃) POLY ~2500MPasISO ~1000MPas
    3 Injection pressure 10-20Mpa(adjustable)
    4 Output (mixing ratio 1:1) 500~2500g/min
    5 Mixing ratio range 1:3~3:1(adjustable)
    6 Injection time 0.5~99.99S(correct to 0.01S)
    7 Material temperature controlling error ±2℃
    8 Repeat injection accuracy ±1%
    9 Mixing head Four oil house,double oil cylinder
    10 Hydraulic system Output: 10L/minSystem pressure 10~20MPa
    11 Tank volume 500L
    15 Temperature control system Heat: 2×9Kw
    16 Input power Three-phase five-wire 380V

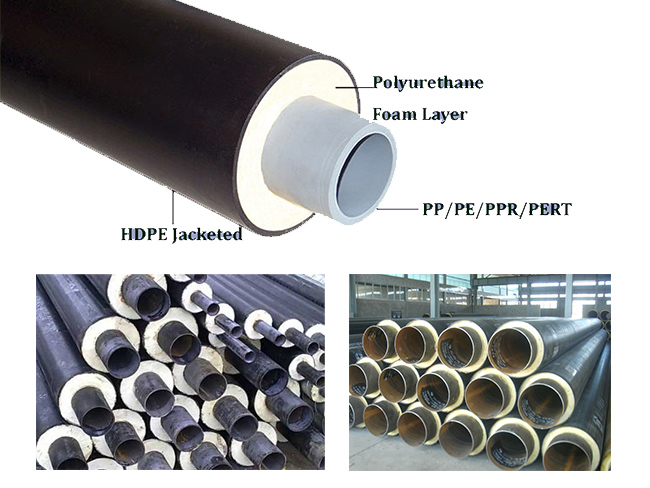

    Polyurethane insulation pipeline, also called insulation direct buried pipeline, is composed of working steel pipe, foam insulation layer, and polyethylene plastic outer protective pipe, which are used to transport the medium, and are sequentially combined outwards through equipment.
    pipe

    High Pressure PU Polyurethane Foam

    Injection Machine For Pipe Insulation
