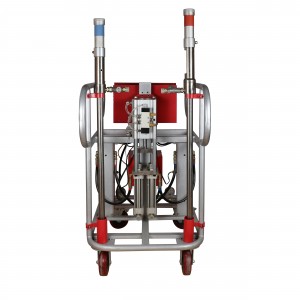

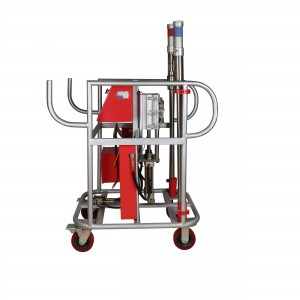

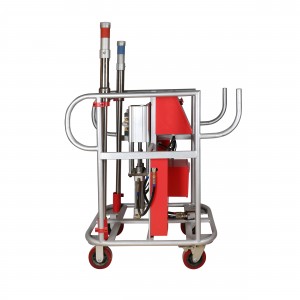

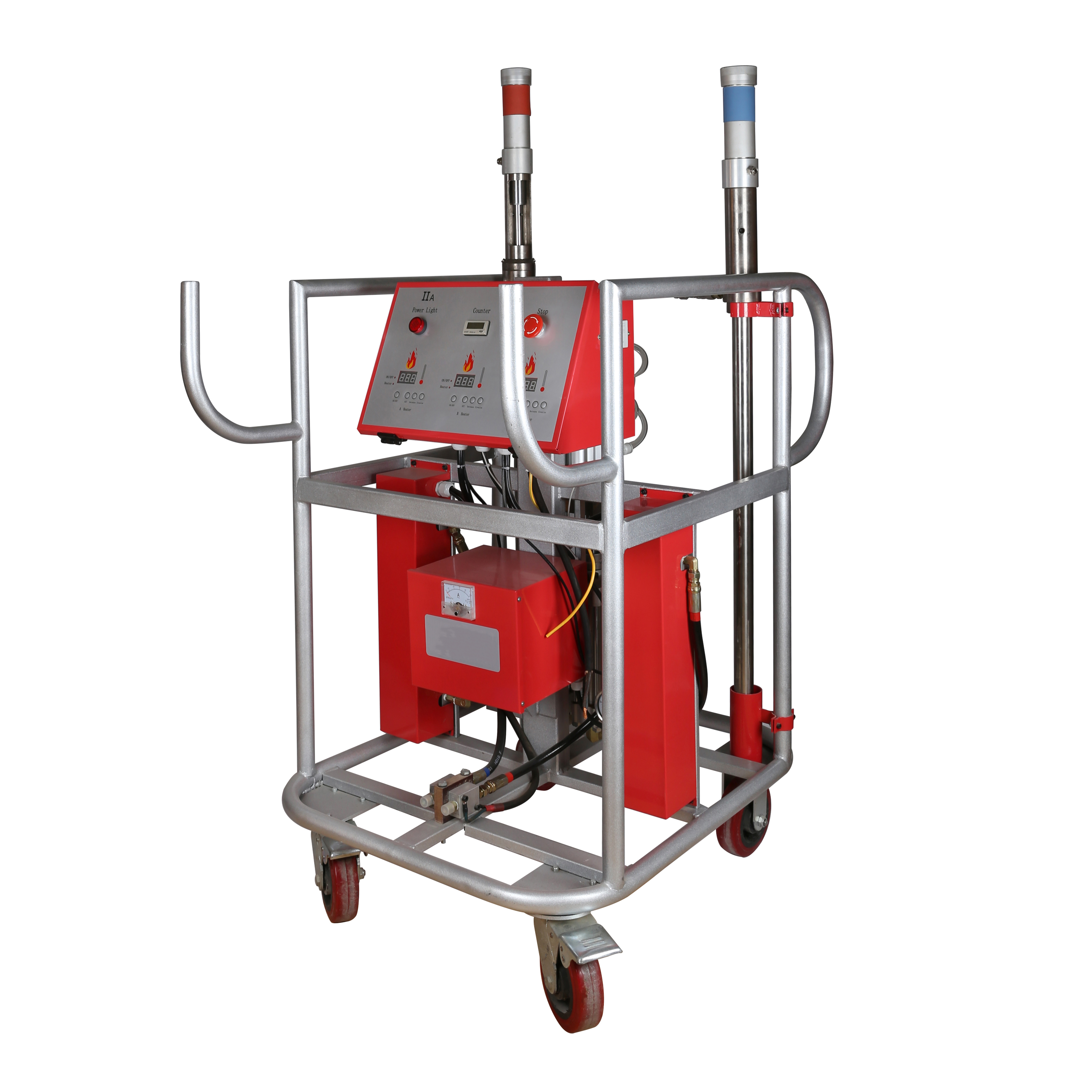

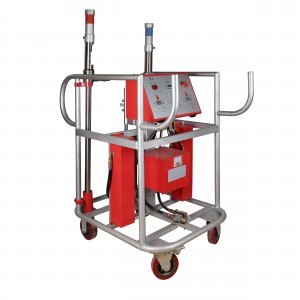

JYYJ-2A PU Pneumatic Spraying Machine For Insulation
The JYYJ-2A polyurethane spraying machine is designed for polyurethane material spraying and coating.
1. Work efficiency can reach 60%or more, far greater than the 20% efficiency of the pneumatc machine.
2. Pneumatics drive less troubles.
3. Working pressure up to 12MPA and very stable, large displacement up to 8kg/mint.
4. Machine with soft start, the booster pump is equipped with an overpressure valve. When the pressure exceeds the set pressure, it will automatically release pressure and protect the machine.
| Parameter | Power source | 1- phase 220V 45A |
| Heating power | 17KW | |
| Driven mode | Horizontal hydraulic | |
| Air source | 0.5-0.8 MPa ≥0.9m³/min | |
| Raw output | 12 kg/min | |
| Maximum output pressure | 25MPA | |
| Poly and ISO material output ratio | 1:1 | |
| Spare parts | Spray gun | 1 Set |
| Heating hose | 15 meters | |
| Spray gun connector | 2 m | |
| Accessories box | 1 | |
| Instruction book | 1 |
