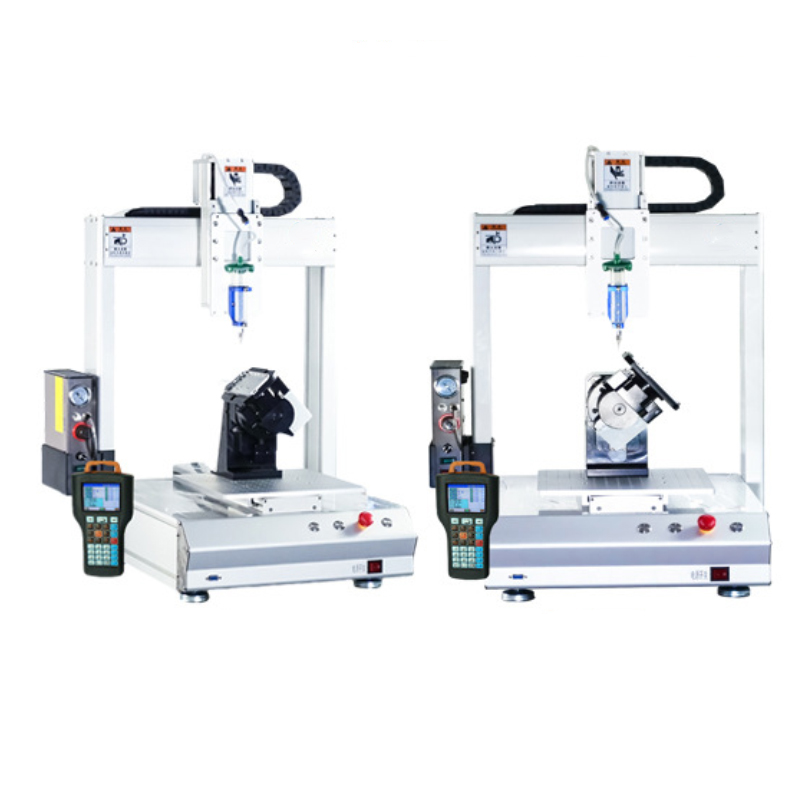

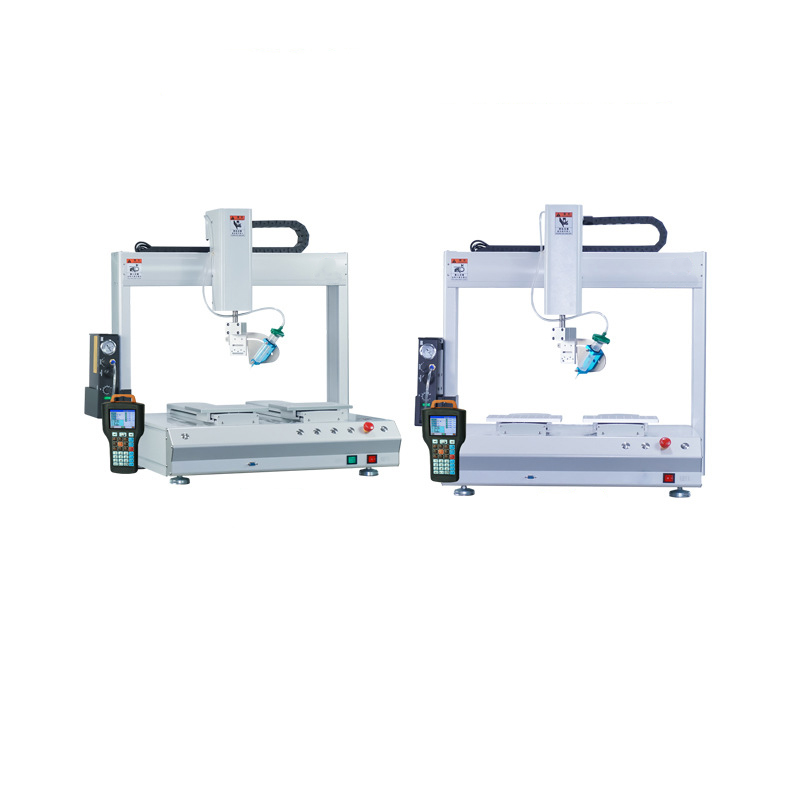

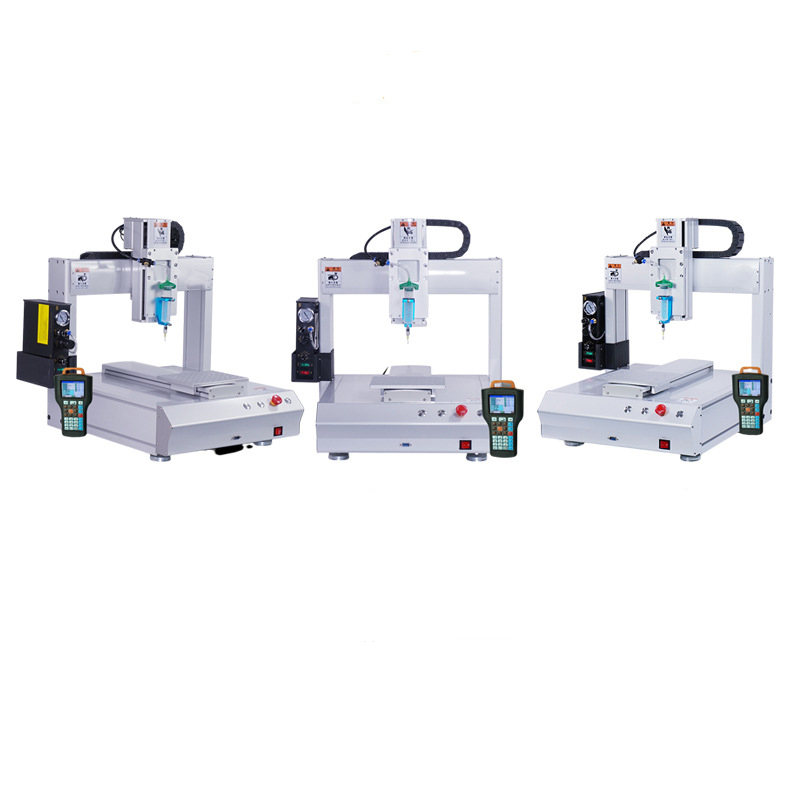

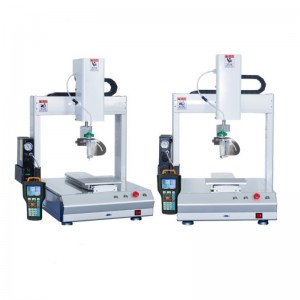

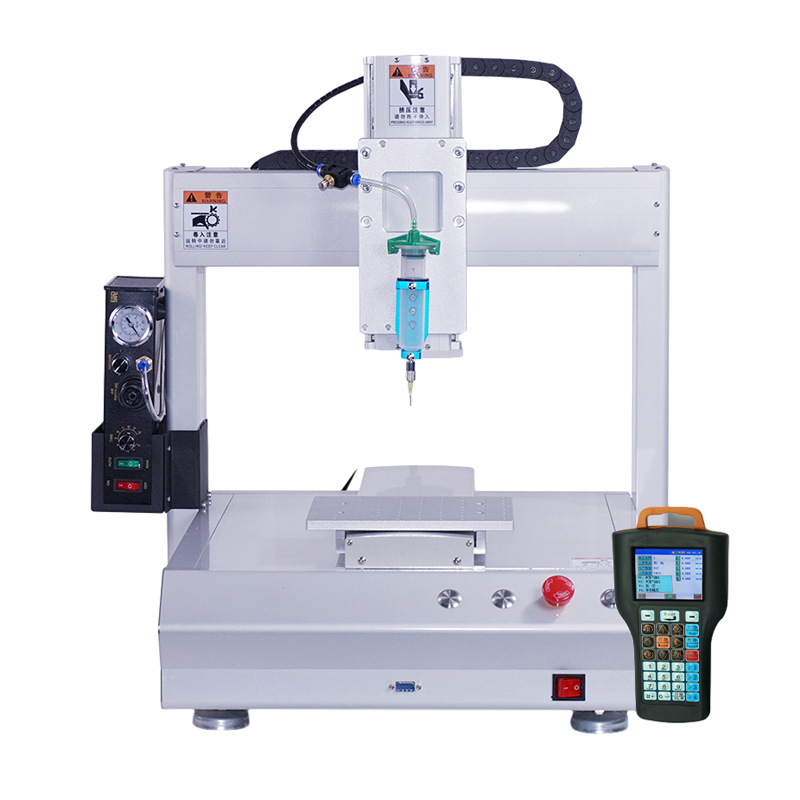

Fully Automatic Syringe Dispensing Machine Pproduct LOGO Filling Color Filling Machine

Short Description:


Introduction

Specification

Application

Product Tags

Feature

  1. High Precision: Syringe dispensing machines can achieve extremely high liquid dispensing accuracy, ensuring precise and error-free adhesive application every time.
  2. Automation: These machines are often equipped with computer control systems, enabling automated liquid dispensing processes that enhance production efficiency.
  3. Versatility: Syringe dispensing machines can accommodate various liquid materials, including adhesives, colloids, silicones, and more, making them versatile in application.
  4. Adjustability: Users can adjust dispensing speed, thickness, and patterns as needed to adapt to the requirements of different projects.
  5. Reliability: These devices are designed for stability, ensuring consistent coating quality and reducing material wastage and rework needs.
  6. Wide Application: Syringe dispensing machines find widespread use in electronic encapsulation, PCB assembly, precision assembly, medical device manufacturing, and various other industries.

主图-07




  • Previous:
  • Next:

  • Model Dispensing robot
    Trip 300*300*100 / 500*300*300*100 mm
    Programing mode Import teaching programming or graphics
    Movable graphics track Point ,line, are, circle ,curve, multiple lines, spiral, ellipse
    Dispensing needle Plastic needle/TT needle
    Dispensing cylinder 3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC
    Minimum discharge 0.01ml
    The glue frequency 5 times/SEC
    Load X/Y axle load 10kg
    Z axle load 5kg
    Axial dynamic speed 0~600mm/sec
    Resolving power 0.01mm/Axis
    Repeated positioning accuracy Screw drive 0.01 ~0.02
    synchronous belt drive 0.02 ~0.04
    Program record mode At least 100 groups, 5000Points each
    Display mode LCD teaching box
    Motor system Japan precision micro stepping motor
    Drive mode Guide Taiwan upper silver linear guide rail
    Wire rod Taiwan silver bar
    Belt Italy Lartey synchronous belt
    X/Y/Z axis synchronous belt for standard configuration, Z axis screw rod is optional, X/Y/Z axis screw rod for customization
    Motion filling function Three dimensional space any route
    Input power Full voltage AC110~220V
    External control interface RS232
    Motor control shaft number 3 axis
    Axis range X axis 300(Customized)
    Y axis 300 (Customized)
    Z axis 100(Customized)
    R axis 360°(Customized)
    Outline size(mm) 540*590*630mm / 740*590*630mm
    Weight (kg) 48kg / 68kg





    1. Electronic Encapsulation and Assembly: In electronics manufacturing, syringe dispensing machines are used for precise application of adhesives, conductive pastes, or encapsulation materials. They ensure reliable connections of electronic components and provide excellent insulation.
    2. PCB Manufacturing: During the production of printed circuit boards (PCBs), syringe dispensing machines are used to apply solder paste, protective coatings, and markings, ensuring the performance and reliability of the PCBs.
    3. Medical Device Manufacturing: In the medical device field, these machines are employed for the assembly and encapsulation of medical equipment, ensuring compliance with stringent hygiene and quality standards.
    4. Automotive Industry: Syringe dispensing machines are used in automotive assembly to apply sealants, adhesives, and lubricants, ensuring the durability and performance of automotive components.
    5. Aerospace: In aerospace manufacturing, these machines are used to apply composite materials, sealants, and lubricants to meet extreme environmental and performance requirements.
    6. Precision Assembly: Syringe dispensing machines find applications in various precision assembly tasks, including the coating and fixation of optical equipment, instruments, electronic components, and micro-parts.
    7. Art and Craftsmanship: In the realm of art and craftsmanship, these machines are employed for the precise application of glue, paints, and decorative materials to create high-quality handmade products.



    QQ截图20230908150312



    Write your message here and send it to us

    Related products

    • PU Sandwich Panel Making Machine Gluing Dispensing Machine

      PU Sandwich Panel Making Machine Gluing Dispens...

      Feature Compact Portability: The handheld design of this gluing machine ensures exceptional portability, allowing for easy maneuvering and adaptability to diverse work environments. Whether within the workshop, along assembly lines, or in areas requiring mobile operations, it effortlessly meets your coating needs. Simple and Intuitive Operation: Prioritizing user experience, our handheld gluing machine not only boasts lightweight convenience but also ensures straightforward and intuitive oper...

    • Low Pressure PU Foaming Machine

      Low Pressure PU Foaming Machine

      PU low pressure foaming machine is newly developed by Yongjia company based on learning and absorbing advanced techniques abroad, which is widely employed in the production of automotive parts, automotive interior, toys, memory pillow and other kinds of flexible foams like integral skin, high resilience and slow rebound , etc. This machine has high repeat injection precision, even mixing, stable performance, easy operation, and high production efficiency, etc. Features 1.For sandwich type ma...

    • Fully Automatic Hot Melt Adhesive Dispensing Machine Electronic PUR Hot Melt Structural Adhesive Applicator

      Fully Automatic Hot Melt Adhesive Dispensing Ma...

      Feature 1. High-Speed Efficiency: The Hot Melt Glue Dispensing Machine is renowned for its high-speed adhesive application and rapid drying, significantly enhancing production efficiency. 2. Precise Gluing Control: These machines achieve high-precision gluing, ensuring every application is accurate and uniform, eliminating the need for secondary processing. 3. Versatile Applications: Hot Melt Glue Dispensing Machines find applications in various industrial processes, including packaging, cart...

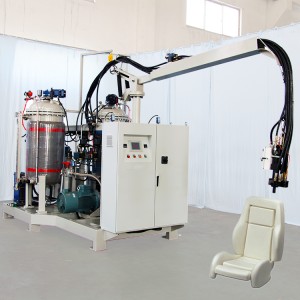

    • Motorcycle Seat Bike Seat Making Machine High Pressure Foaming Machine

      Motorcycle Seat Bike Seat Making Machine High P...

      Feature High pressure foaming machine is used for automobile interior decoration, exterior wall thermal insulation coating, thermal insulation pipe manufacturing, bicycle and motorcycle seat cushion sponge processing. High pressure foaming machine has excellent thermal insulation performance, even better than polystyrene board. High pressure foaming machine is a special equipment for filling and foaming of polyurethane foam. The high-pressure foaming machine is suitable for the processing of ...

    • Polyurethane Low Pressure Foam Filling Machine For  Door Garage

      Polyurethane Low Pressure Foam Filling Machine ...

      Description Market users most polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer’s request various pours out of the machine Feature 1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving; 2.Adding material sample test system, which can be switched freely without affecting normal production, saves...

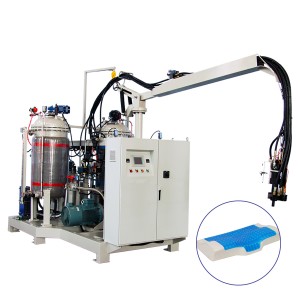

    • Polyurethane Low Pressure Foaming Machine Integral Skin Foam Making Machine
