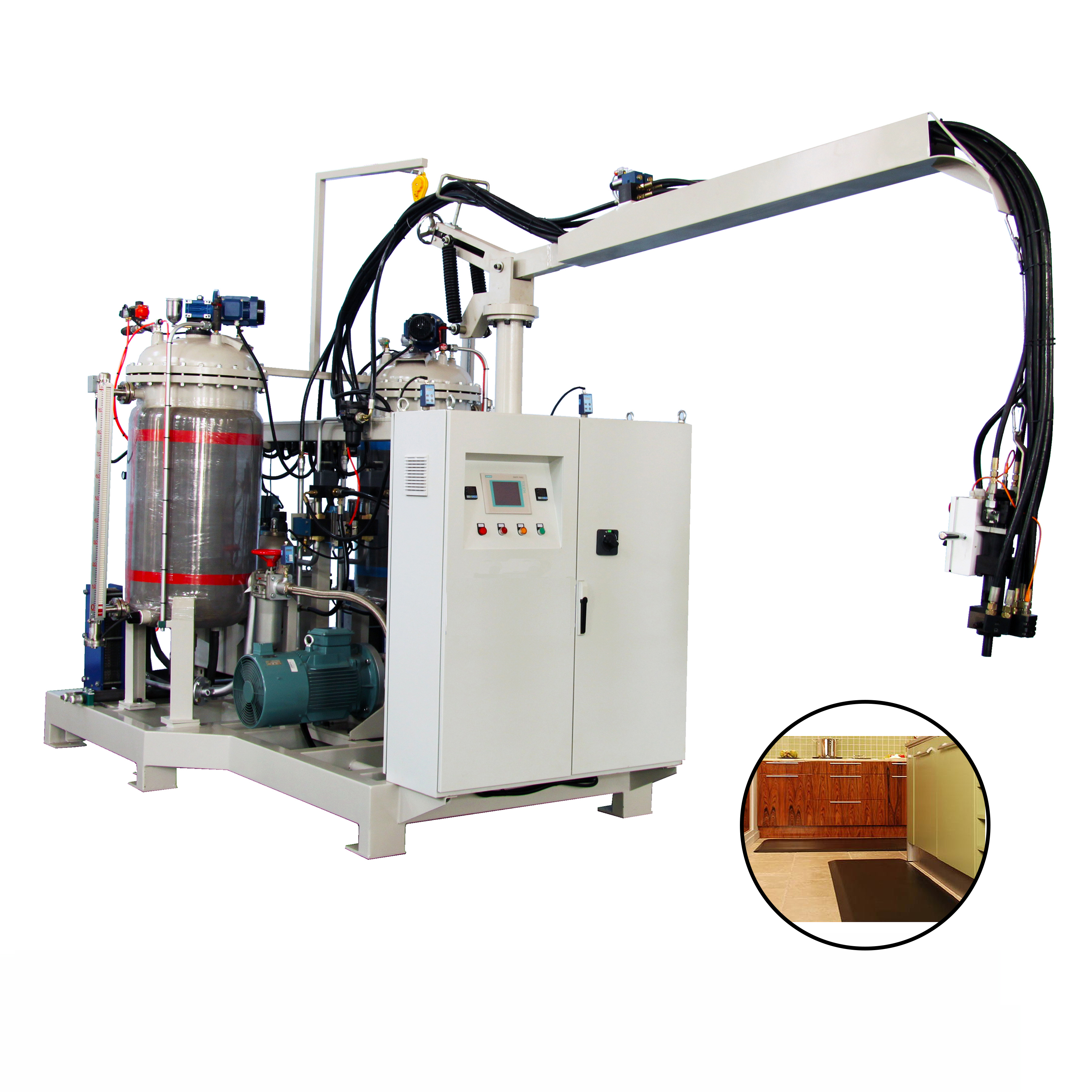

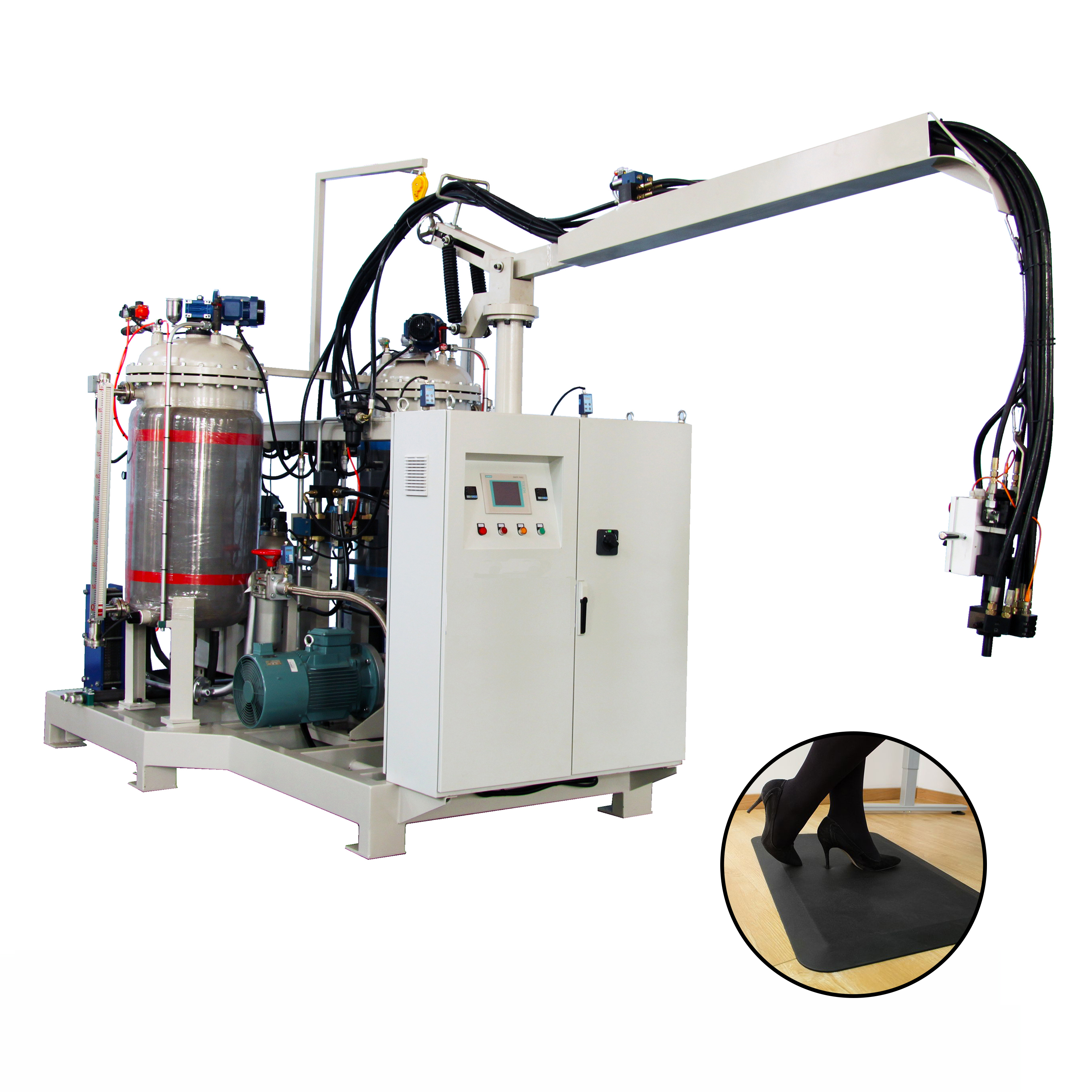

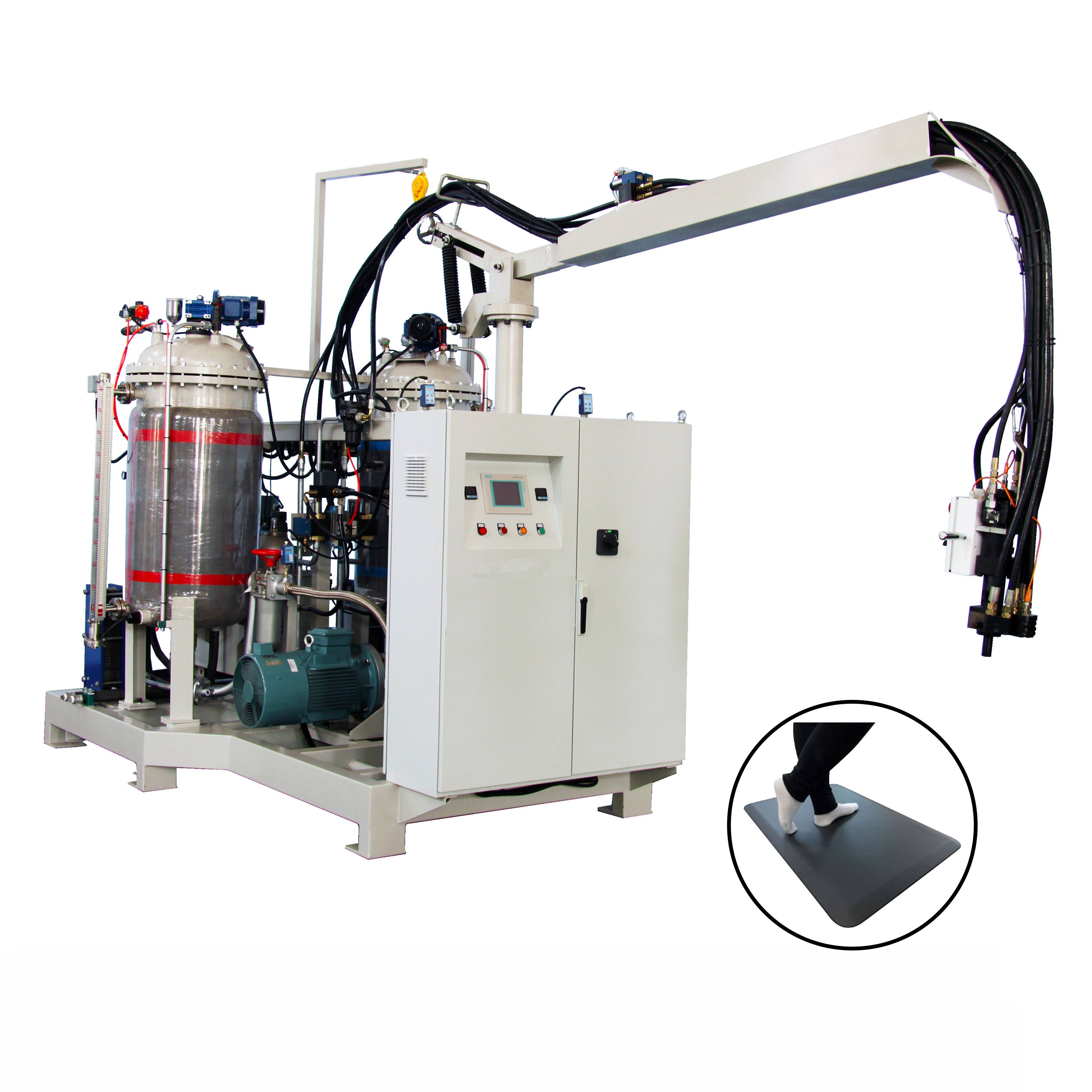

How To Make Anti-fatigue Floor Mats With Polyurethane Foam Injection Machine

Short Description:


Introduction

Details

Specification

Application

Video

Product Tags

Material injection mixing head can freely move forward and backward, left and right, up and down;

Pressure needle valves of black and white materials locked after balanced to avoid pressure difference

Magnetic coupler adopts high-tech permanent magnet control, no leakage and temperature rising

Automatic gun cleaning after injection

Material injecting procedure provides 100 work stations, weight can be set directly to meet the production of multi-products

Mixing head adopts double proximity switch control, which can realize precise material injection.

Automatic switch from frequency converter soft start to high and low frequency, low-carbon , energy saving, environmental protection, greatly reduce the energy consumption

Full digital, modular integration control all process, accurate, safe, intuitive, intelligent and humanization

QQ图片20171107104618




  • Previous:
  • Next:

  • A set of high pressure control device to adjust and control the working pressure, the pressure is set within 6MPa to 22MPa, when it is over the range, the equipment stop and alarm with displaying the fault message of too high or too low pressure.



    High/low pressure cyclical switch unit control the high/low cyclical switch of the two components, to enable components to form low energy circle and extend machine’s service life. The equipment has 4 sets of high and low pressure switching unit for sharing.

    dav

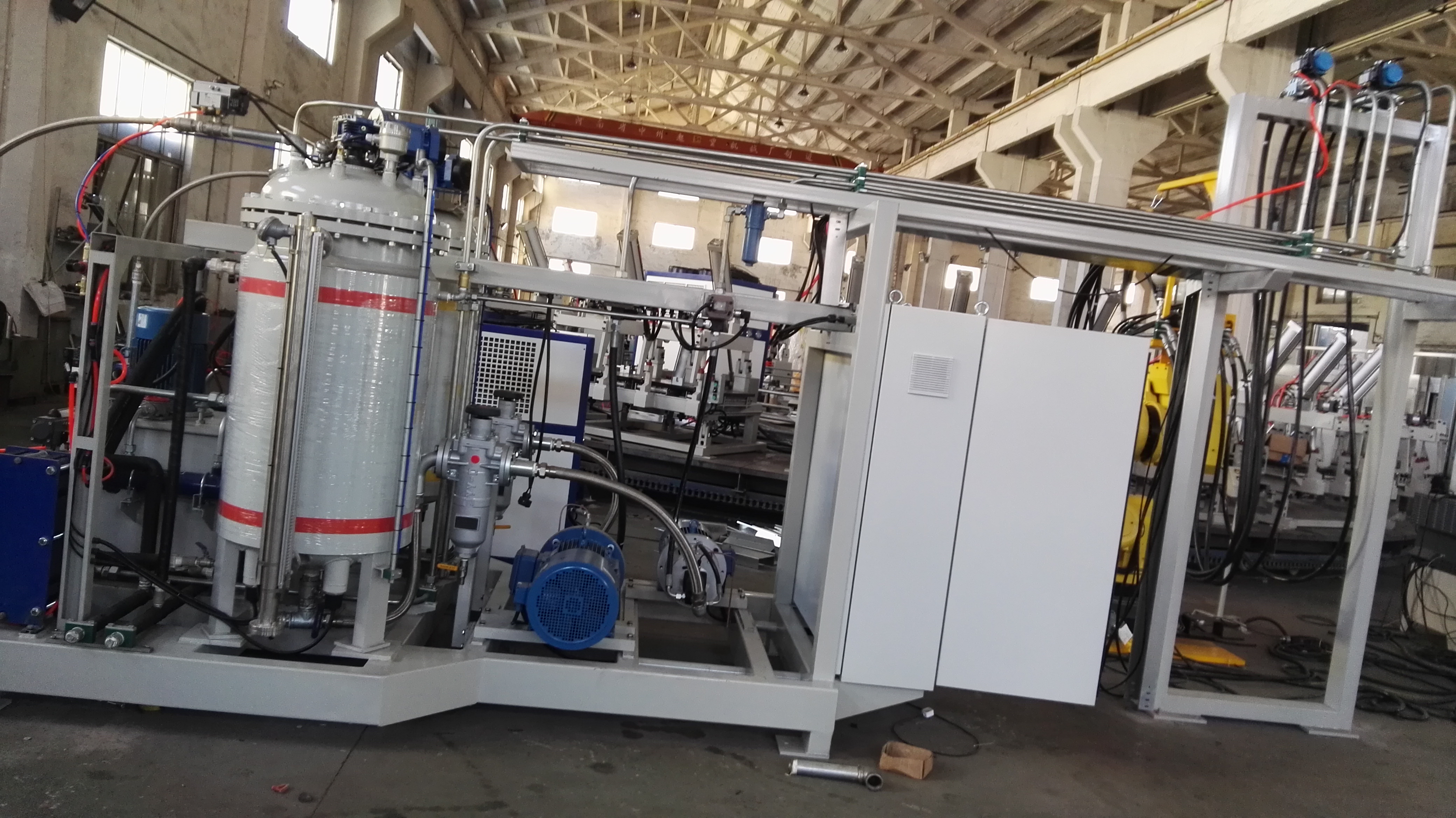

    Hard and flexible pipe form the bracket and mixing head, pipeline layout and length are confirmed according to customers’ s site plan. Material pipes adopt imported high strength pressure pipe to avoid raw materials products quality from being affected by the secondary pollution in the process of transporting.

    No.

    Item

    Technical Parameter

    1

    适用泡沫种类

    Foam application

    PU

    2

    适用原料粘度(22℃

    Raw material viscosity22℃

    POL2500mPas

      ISO 1000mPas

    3

    注射压力

    Injection pressure

    1020Mpa (adjustable)

    4

    注射流量(混合比11

    Injection Output

    (mixing ratio 1:1)

    160-860g/s

    5

    混合比范围Mixing ratio range

    1:55:1adjustable

    6

    注射时间Injection time

    0.599.99Scorrect to 0.01S

    7

    料温控制误差Material temperature control error

    ±2℃

    8

    重复注射精度

    Repeated injection accuracy

    ±1%

    9

    混合头Mixing head

     Homemade, four oil hoses, double oil cylinders

    10

    液压系统

    Hydraulic system

    Output   10L/min

    System pressure   1020MPa

    11

    料罐容积Tank volume

    280L

    12

    聚醚多元醇计量泵

    POL metering pump

    Gelanrex 11KW

    A2VK-28

    13

    异氰酸酯计量泵

    ISO metering pump

    Gelanrex 7.5KW

    A2VK-12

    14

    压缩空气用量Compressed air required

    Dry, oil free  P: 0.7Mpa

                   Q: 600NL/min

    15

    温控系统Temperature control system

    5HP

    16

    输入电源Input power

    Three-phase five-wire380V 50HZ

    Pu in the natural rubber Pu floor mat meaning is polyurethane material. This material is an excellent material for making mats. It is non-toxic, tasteless, and non-slip, not easy to rot, there is an environment-friendly material.

    AIRLIFT-Gray-Anti-Fatigue-Comfort-Mat-for-Stand-Up-Desks-Kitchens-Non-Slip-Waterproof-Polyurethane-Set elite anti-fatigue kitchen comfort mat Medical_box_bottom_left

    Polyurethane PU Desk Kitchen Standing Anti-fatigue Mats DIY
