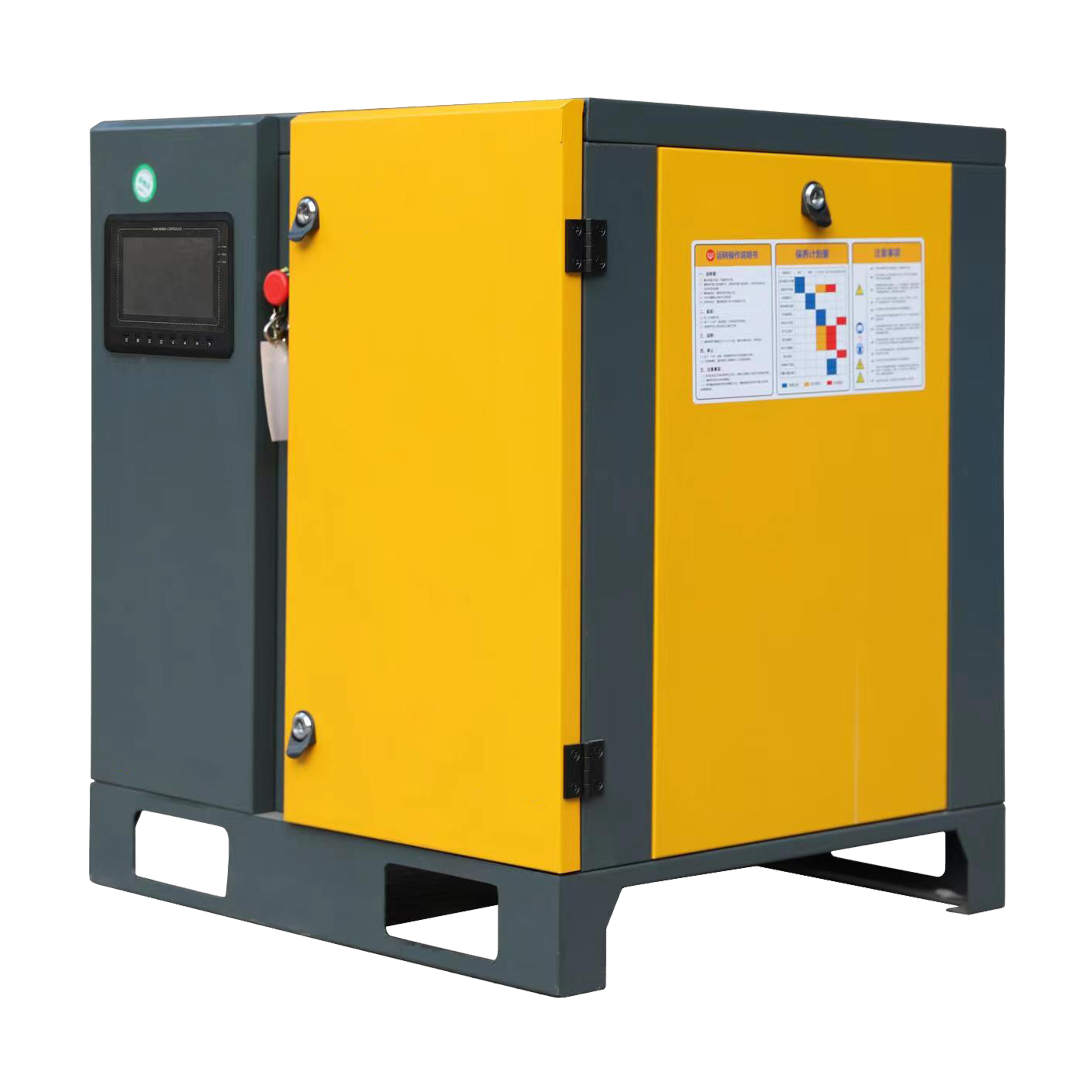

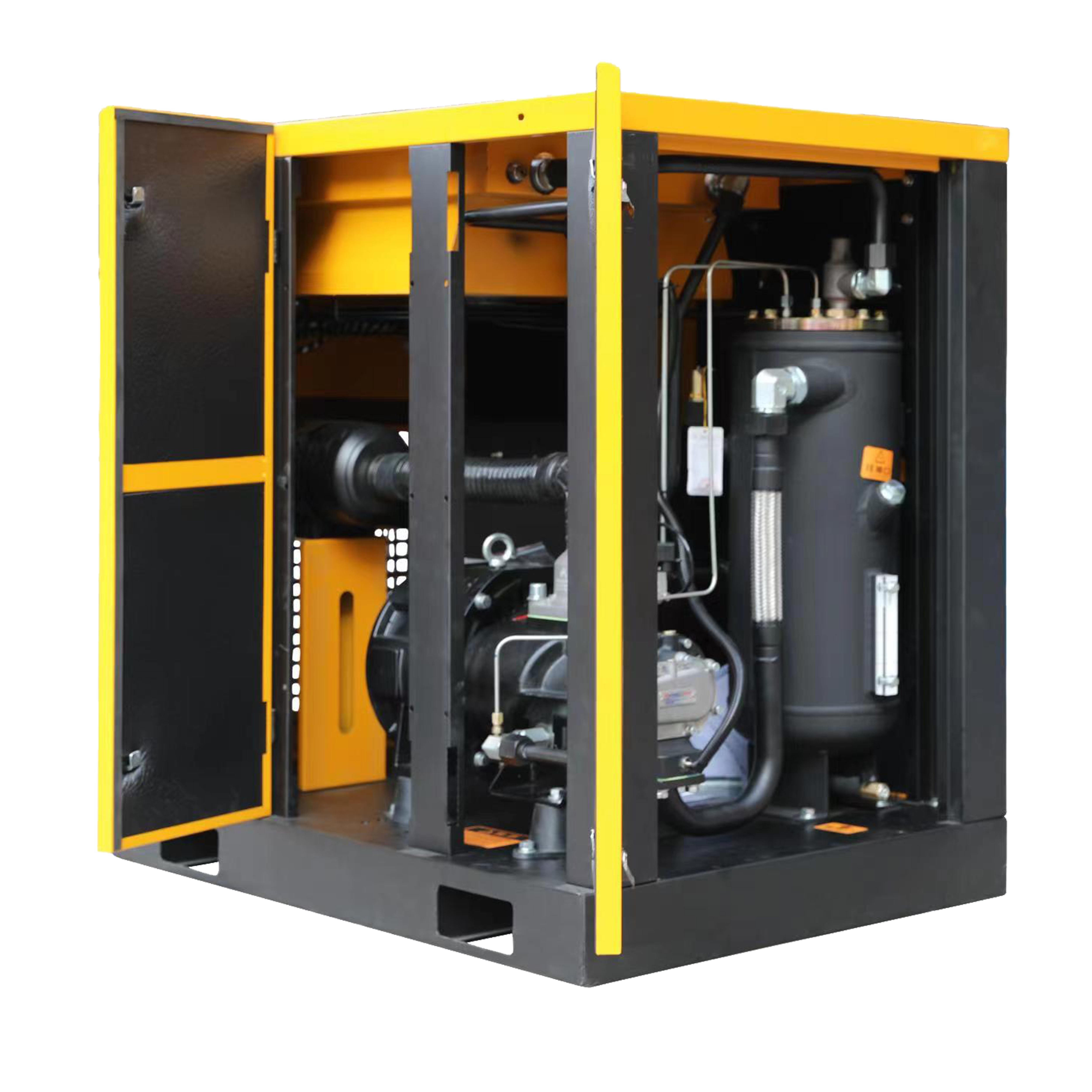

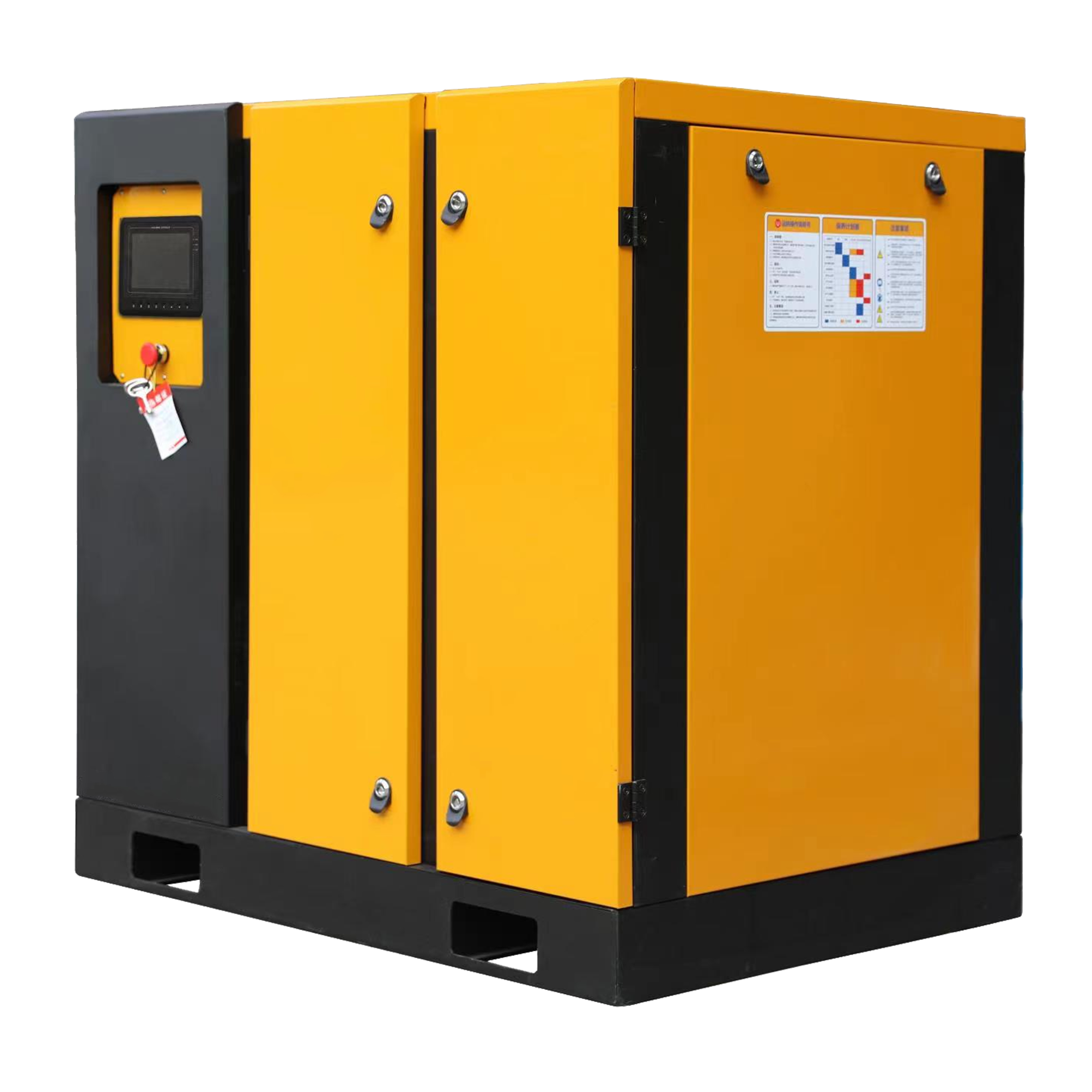

15HP 11KW IP23 380V50HZ Fixed speed PM VSD Screw Air Compressor Industrial Equipments
Feature
- Compressed Air Supply: Air compressors intake air from the atmosphere and, after compressing it, push it into an air tank or supply pipeline, providing high-pressure, high-density air.
- Industrial Applications: Air compressors are widely used in manufacturing, construction, chemical, mining, and other industries. They are used to operate pneumatic equipment, for tasks such as spraying, cleaning, packaging, mixing, and various industrial processes.
- Energy Efficiency and Environmental Friendliness: Modern air compressors are often designed for high efficiency and energy savings to reduce energy consumption. This helps reduce energy waste, lower production costs, and minimize environmental impact.
- Different Types: There are several types of air compressors, including screw compressors, piston compressors, centrifugal compressors, among others. Each type is suitable for different applications and working conditions.
- Maintenance and Care: Regular maintenance and care are essential to ensure the efficient operation of air compressors, including filter replacement, lubrication, and inspection of cylinders and valves.
Specification
| MODEL | 10ZV | 15ZV | 20ZV | 25ZV | 30ZV |
| Power(KW) | 7.5 | 11 | 15 | 18.5 | 22 |
| Capacity(m³/Min/MPa) | 1.3/0.7 | 1.65/0.7 | 2.5/0.7 | 3.2/0.7 | 3.8/0.7 |
| 1.2/0.8 | 1.6/0.8 | 2.4/0.8 | 3.0/0.8 | 3.6/0.8 | |
| 0.95/1.0 | 1.3/1.0 | 2.1/1.0 | 2.7/1.0 | 3.2/1.0 | |
| 0.8/1.2 | 1.1/1.2 | 1.72/1.2 | 2.4/1.2 | 2.7/1.2 | |
| Lubricant(L) | 10 | 18 | 18 | 18 | 18 |
| Noise(db(A)) | 62±2 | 65±2 | 65±2 | 68±2 | 68±2 |
| Drive Method | Y-Δ /Frequency Soft Start | ||||
| Eletric(V/PH/HZ) | 380V/50HZ | ||||
| Length | 900 | 1080 | 1080 | 1280 | 1280 |
| Width | 700 | 750 | 750 | 850 | 850 |
| Height | 820 | 1000 | 1000 | 1160 | 1160 |
| Weight(KG) | 220 | 400 | 400 | 550 | 550 |
Air compressors are widely used in manufacturing, construction, chemical, mining, and other industries. They are used to operate pneumatic equipment, for tasks such as spraying, cleaning, packaging, mixing, and various industrial processes.
