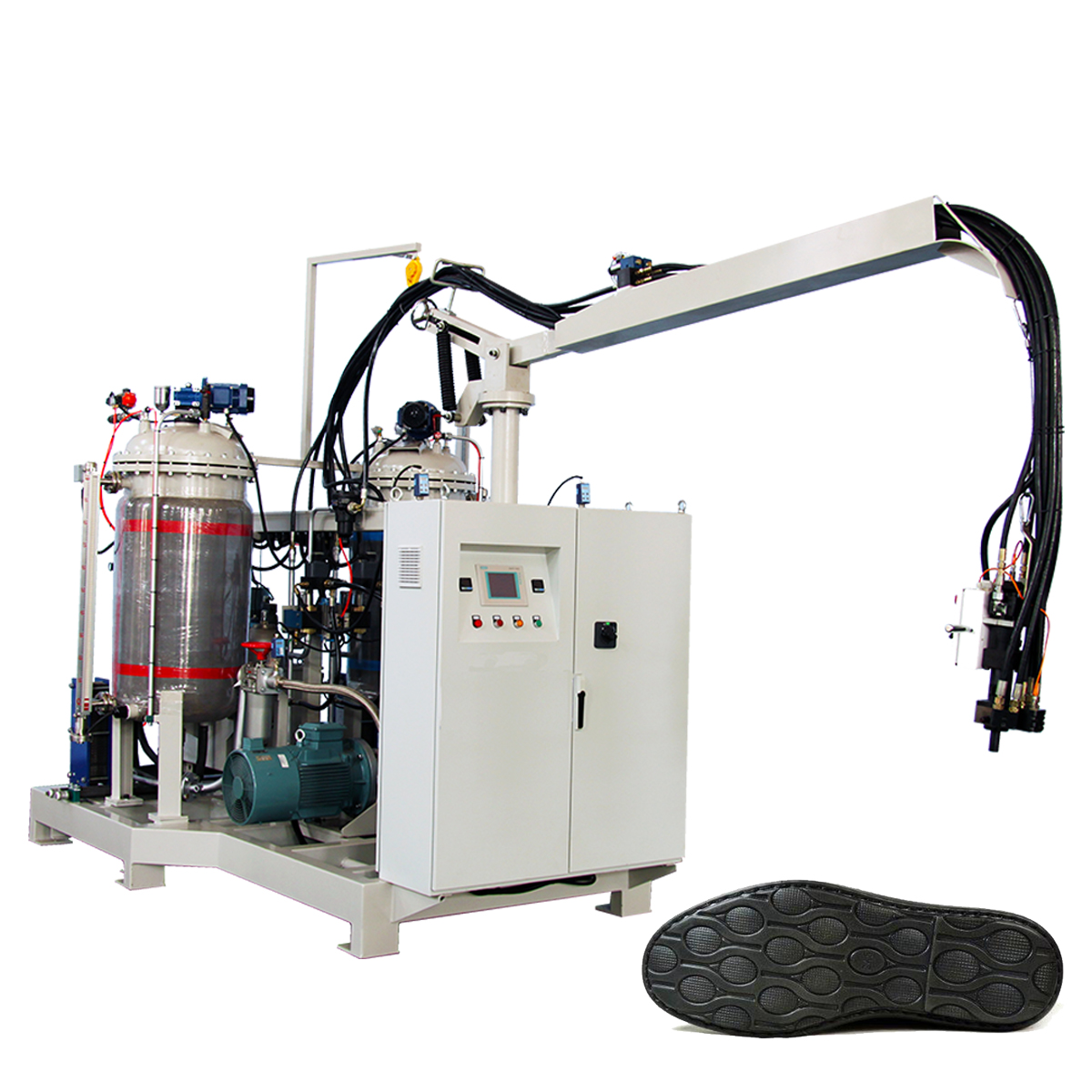

Polyurethane Foam Casting Machine High Pressure Machine For Shoe Insole

Short Description:


Introduction

Detail

Specification

Applications

Product Tags

Feature

Polyurethane high pressure foaming machine is a high-tech product independently developed by our company in combination with the application of polyurethane industry at home and abroad. The main components are imported from abroad, and the technical performance and safety and reliability of the equipment can reach the advanced level of similar products at home and abroad. It is a kind of polyurethane plastic high-pressure foaming equipment that is very popular among users at home and abroad. It is mainly suitable for producing all kinds of high-rebound, slow-rebound, self-skinning and other polyurethane plastic molding products. Such as: car seat cushions, sofa cushions, car armrests, sound insulation cotton, memory pillows and gaskets for various mechanical appliances, etc.

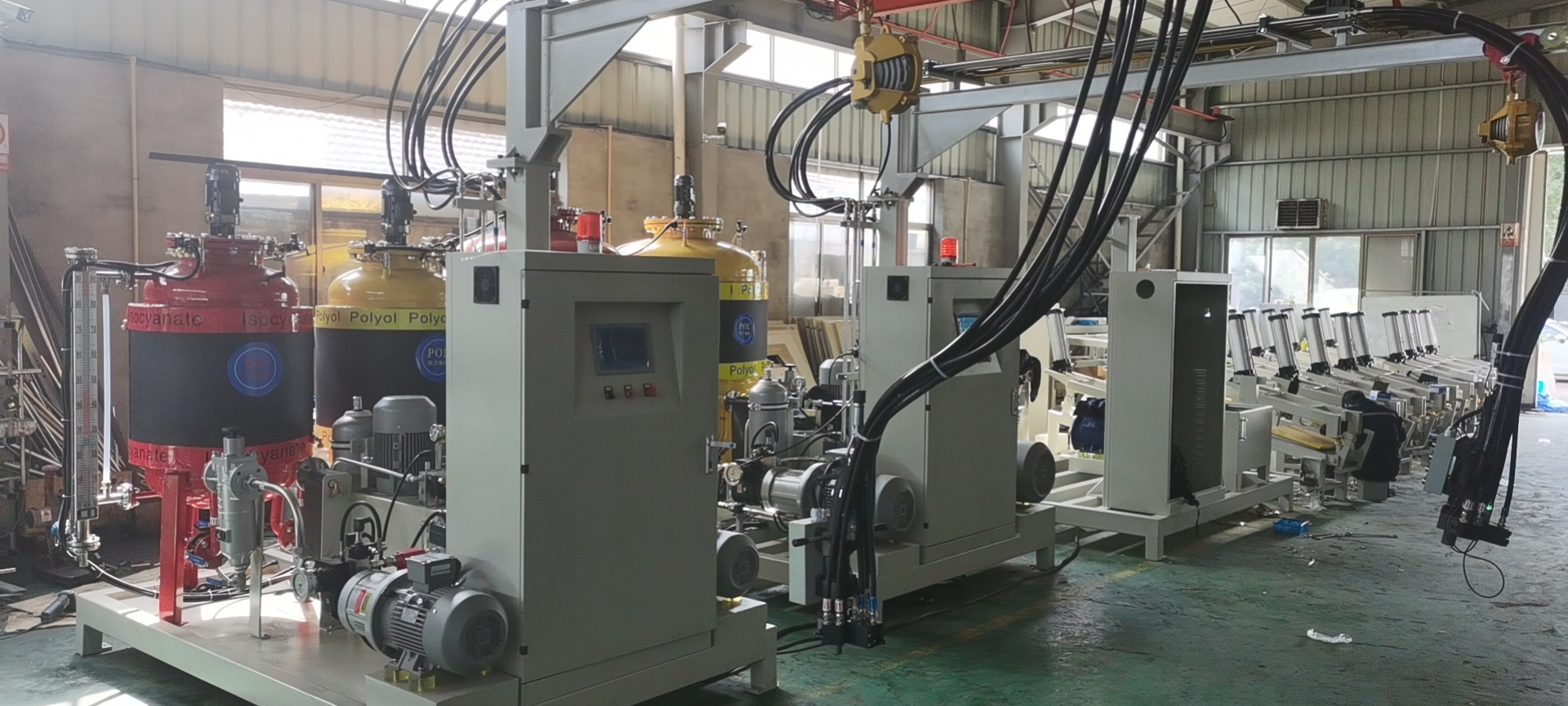

overall-picture (1)


  • Previous:
  • Next:

  • 1.Measuring unit:

    1) The motor and the pump are linked by a magnetic coupling
    2) The metering pump has a digital pressure gauge to control the discharge pressure
    3) Equipped with double protection of mechanical and safety relief valve

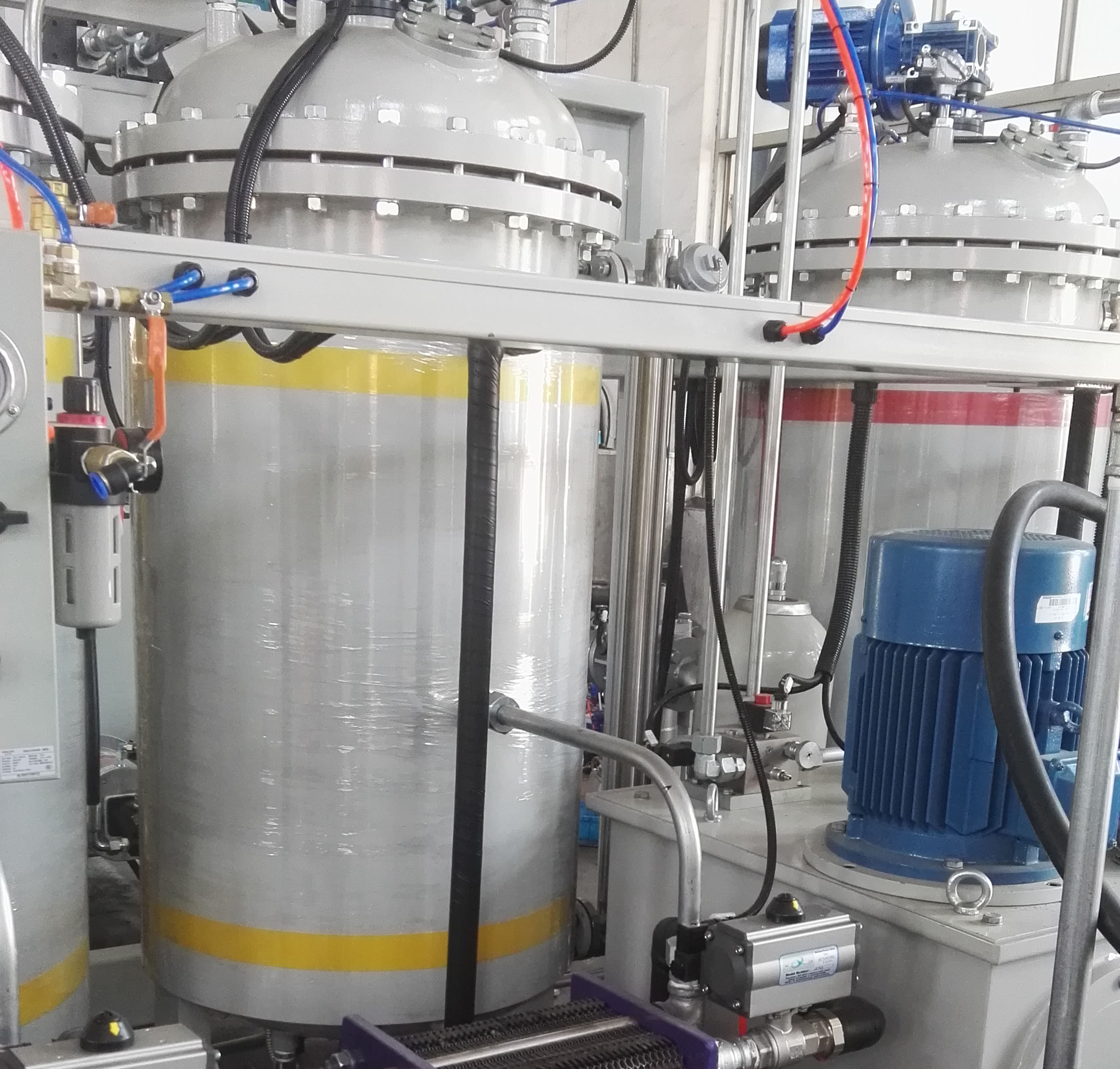

    2. Component storage and temperature regulation:
    1) Pressurized sealed double-layer tank with visual level gauge
    2) Digital pressure gauge is used for pressure control,
    3) Resistance heater and cooling water solenoid valve for component temperature adjustment (optional for chiller)

    3. Electrical control system:
    1) The whole machine is controlled by PLC
    2) Color touch screen control panel, friendly and simple interface, can realize functions such as parameter setting, status display and pouring time
    3) Alarm function, sound and light alarm with text display, failure shutdown protection

    高压机+镜框2 dav

    Applicable Industries: Manufacturing Plant Condition: New
    Product Type: Foam Net Machine Type: Foam Injection Machine
    Voltage: 380V Dimension(L*W*H): 4100(L)*1250(W)*2300(H)mm
    Power (kW): 9kW Weight (KG): 2000 KG
    Warranty: 1 YEAR After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
    Key Selling Points: Automatic After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
    Strength 1: Self-cleaning Filter Strength 2: Precise Metering
    Feeding System: Automatic Control System: PLC
    Foam Type: Rigid Foam Output: 16-66g/s
    Tank Volume: 250L Power: Three-phase Five-wire 380V
    Name: Liquid Filling Machine Port: Ningbo For Liquid Filling Machine
    High Light:

    250L High Pressure PU Foaming Machine

    66g/s polyurethane foam injection machine

    Perfusion High Pressure PU Foaming Machine

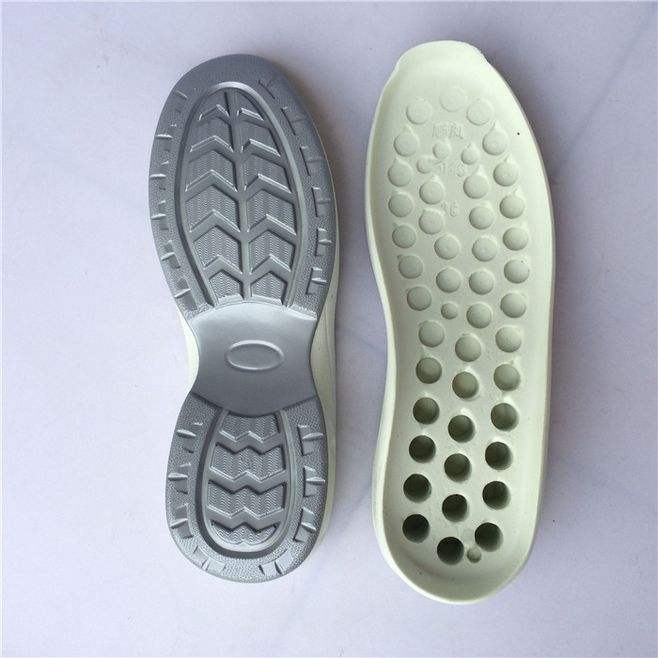

    Polyurethane high pressure foaming machines are widely used in the production of shoes, soles, slippers, sandals, insoles, etc. Compared with ordinary rubber soles, polyurethane soles have the characteristics of light weight and good wear resistance. Polyurethane soles use polyurethane resin as the main raw material, which solves the problems that the plastic soles and recycled rubber soles are easy to break and the rubber soles are easy to open. By adding various additives, the polyurethane sole has been greatly improved in terms of wear resistance, oil resistance, electrical insulation, anti-static and acid and alkali resistance.

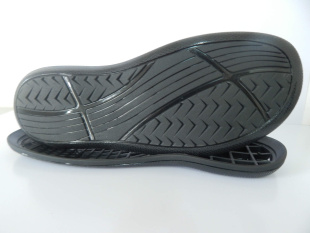

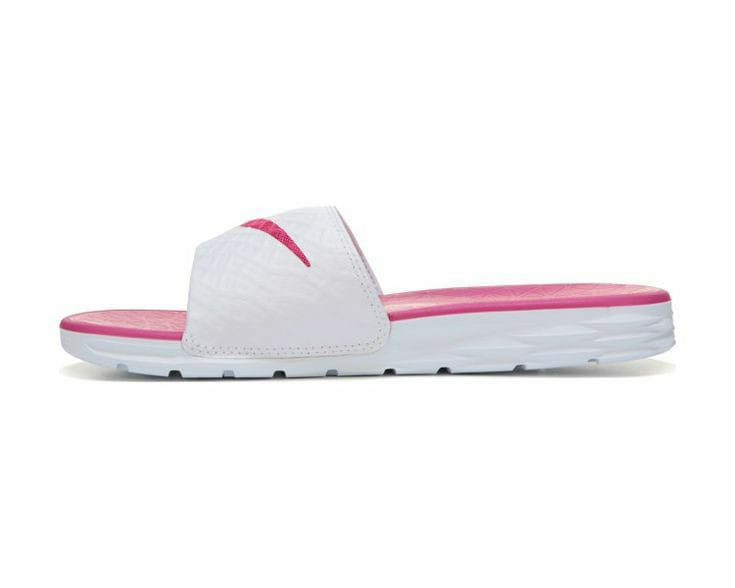

    5ff41f7f26a7f timg u=871776169,423059602&fm=21&gp=0Cp0kIBZ4t_1401337821
