PU Insulation Board Sandwich Panel Production Line

Short Description:


Introduction

Details

Specification

Application

Video

Product Tags

Feature

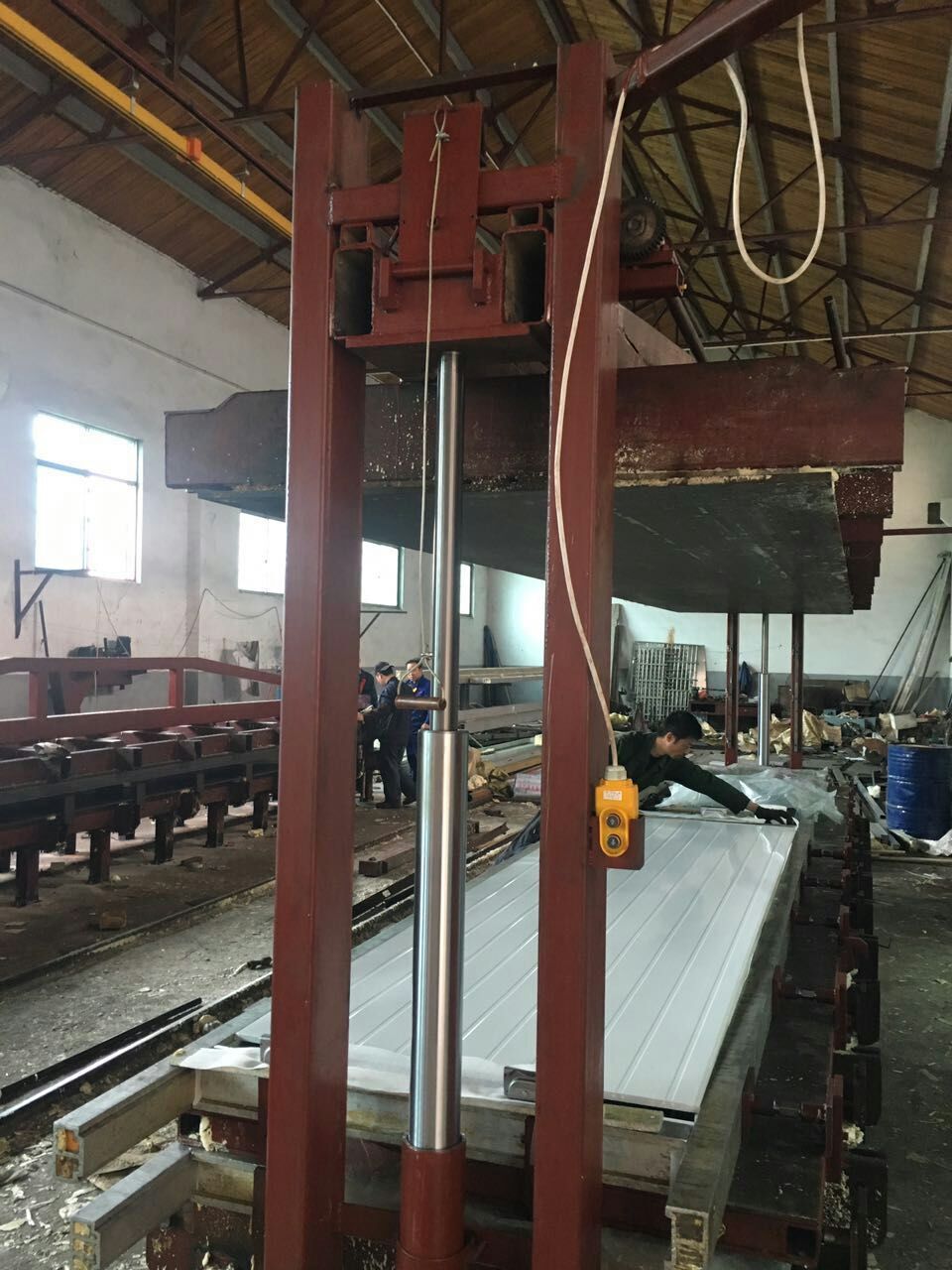

The production line of the machine to absorb a variety of advantages of the press,the company designed and manufactured by our company series two into two out of the press is mainly used in the production of sandwich panels,laminating machine mainly is composed of a machine frame and load template, clamping way adopts hydraulic driven,carrier template water heating mold temperature machine heating, ensure the curing temperature of 40 DEGC.Laminator can tilt the whole of 0 to 5degrees.For the convenience of the workpiece material and to take action and move up and down template to automatically import and laminating machine; the layer four mobile template can be alternated between production and improve the production efficiency.

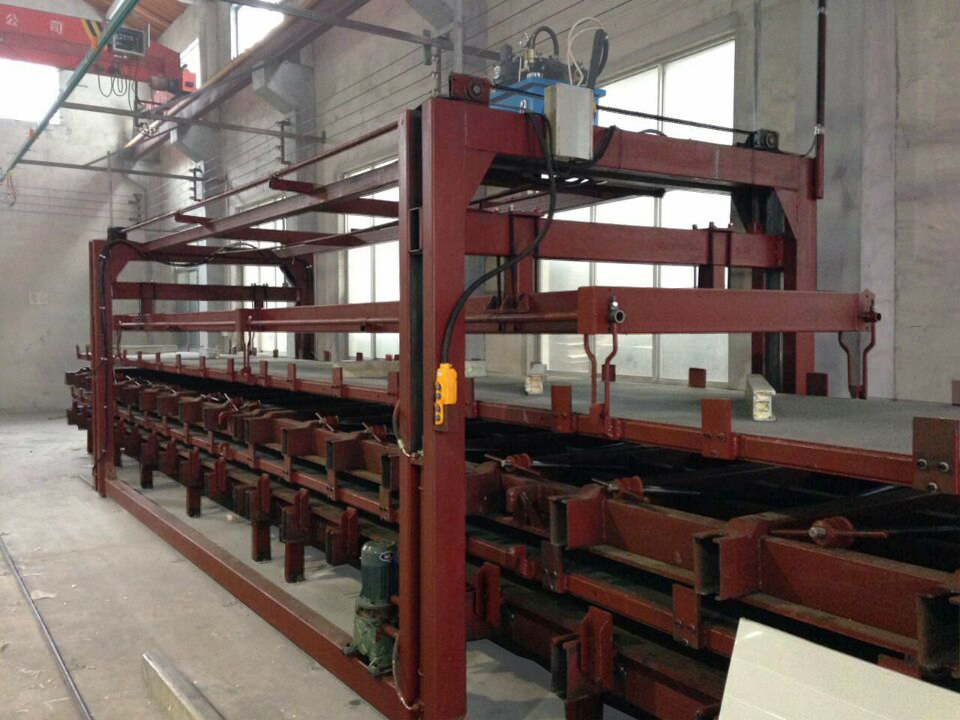

cold room panel production line

The quality of the polyurethane cold storage board is very important for the cold storage, because the cold storage is different from the ordinary warehouse, the temperature in the cold storage is generally relatively low, and the air temperature, humidity, and environmental requirements are relatively Therefore, when choosing a polyurethane cold storage board, we must pay attention to choose a polyurethane cold storage board with better temperature control. The products in the cold storage deteriorate, or the refrigeration compressor of the cold storage works frequently, which wastes more resources and increases the cost. Choosing the right plate can better maintain the cold storage.

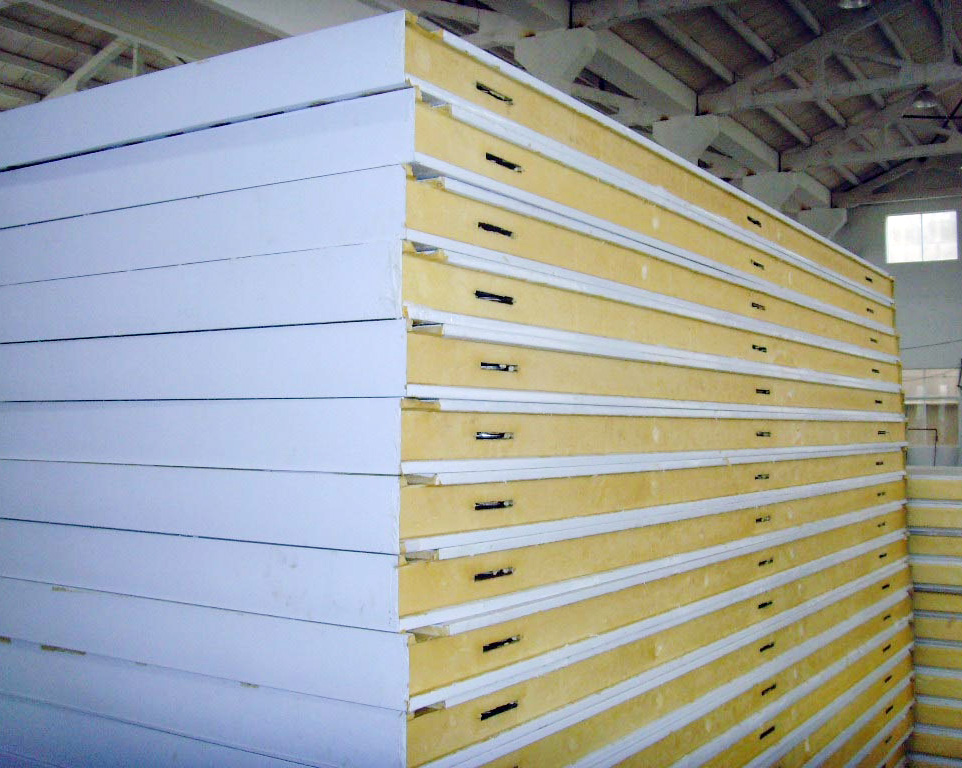

20150511153647_332


  • Previous:
  • Next:

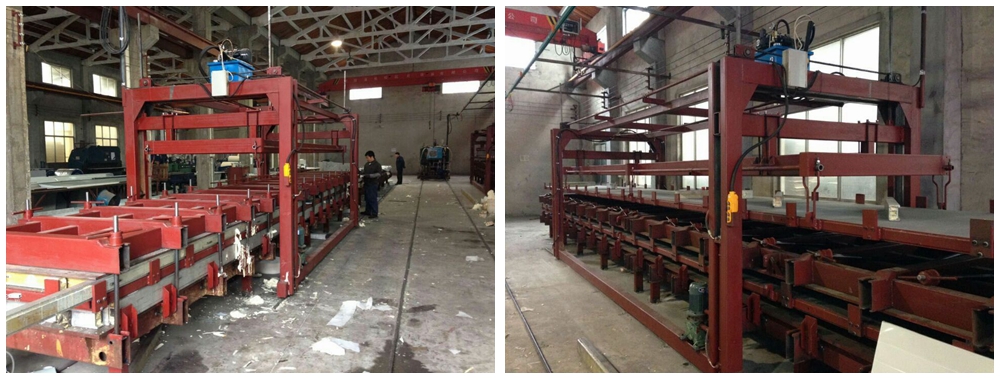

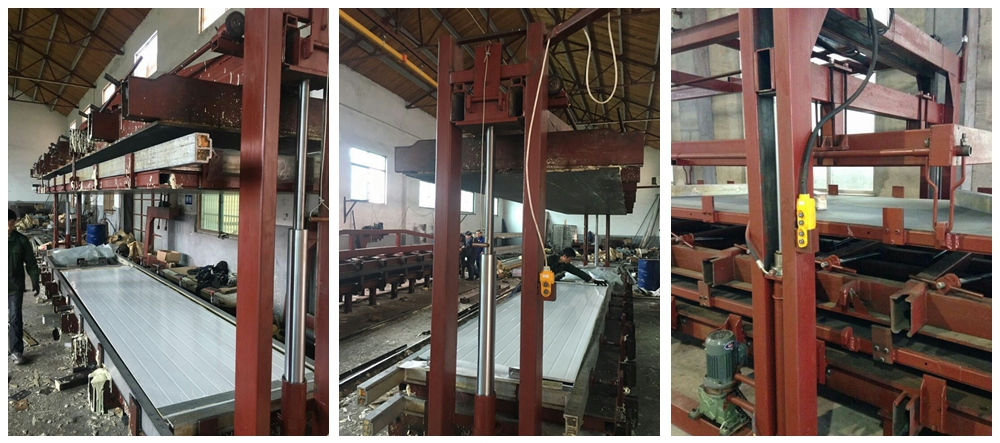

  • cold room panel production line 1 cold room panel production line 2 QQ图片20160905135849

    Laminating machine parts

    number of plies

    2+2

    Load the template size

    12500*1200mm

    mould height

    250mm

    clamping force

    280kgf

    working oil pressure

    15mpa

    Heat the water pressure

    0.2mpa

    water temperature

    85℃

    voltage

    380V/50HZ

    power

    120kw

    weight

    60T

    Travelling form

    Upper mobile template operation level

    1052mm

    speed of mobile template driven

    360mm/s

    lower speed of mobile template driven

    693mm

    Track component

    orbit altitude

    170mm

    Track length

    40500mm

    Number of sets of orbit

    2sets

    lay direction

    Laminating machine around both ends

    The polyurethane cold storage board uses lightweight polyurethane as the inner material of the cold storage board. The advantage of polyurethane is that the thermal insulation performance is very good. The exterior of the polyurethane cold storage board is composed of pvc color steel plate and stainless steel plate. The large temperature difference between the inside and outside leads to the spread of temperature, which makes the cold storage more energy-saving and improves the working efficiency of the cold storage.

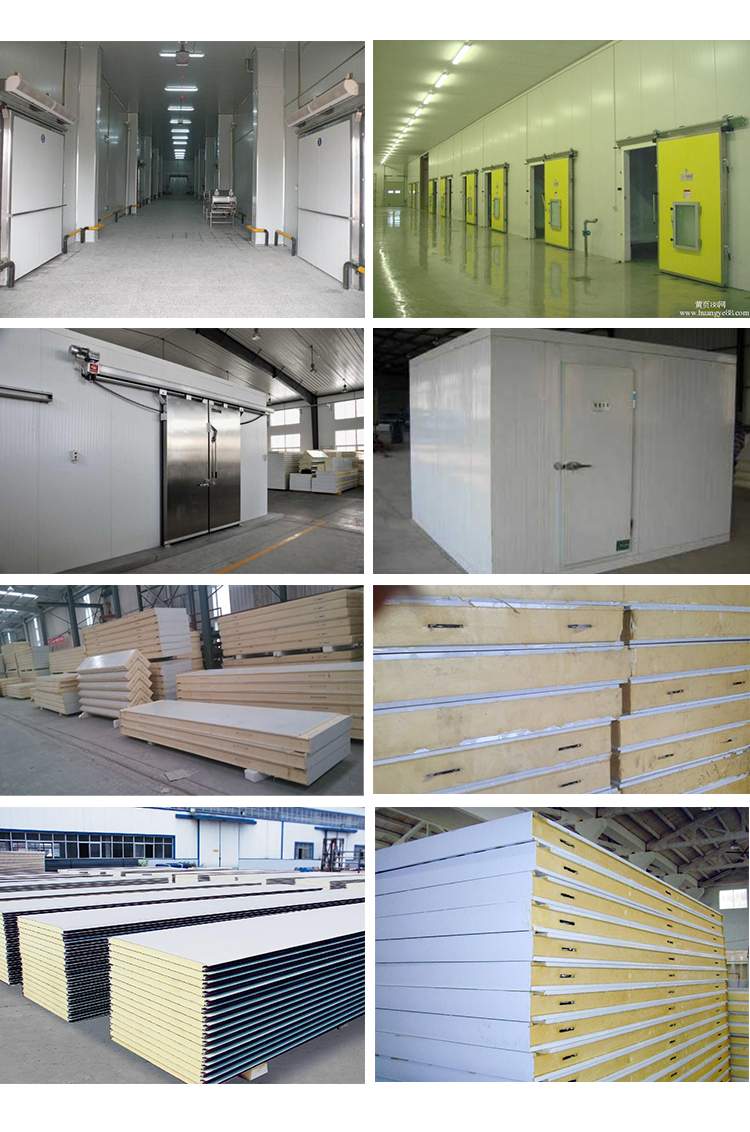

    application
