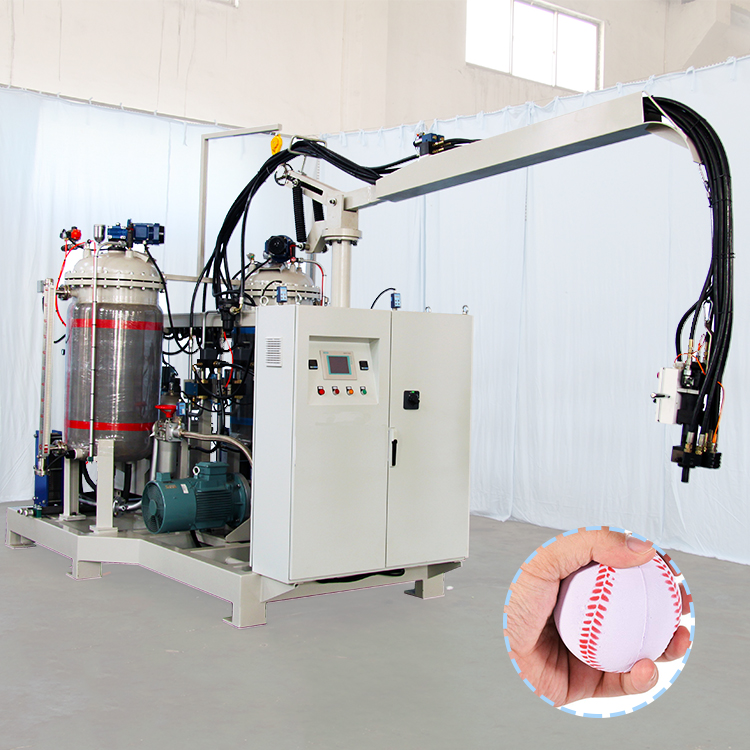

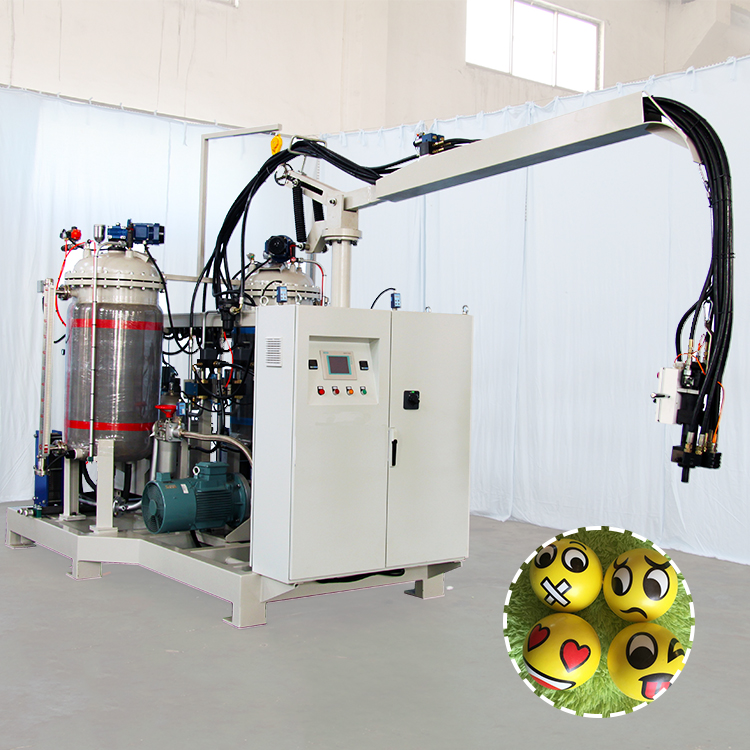

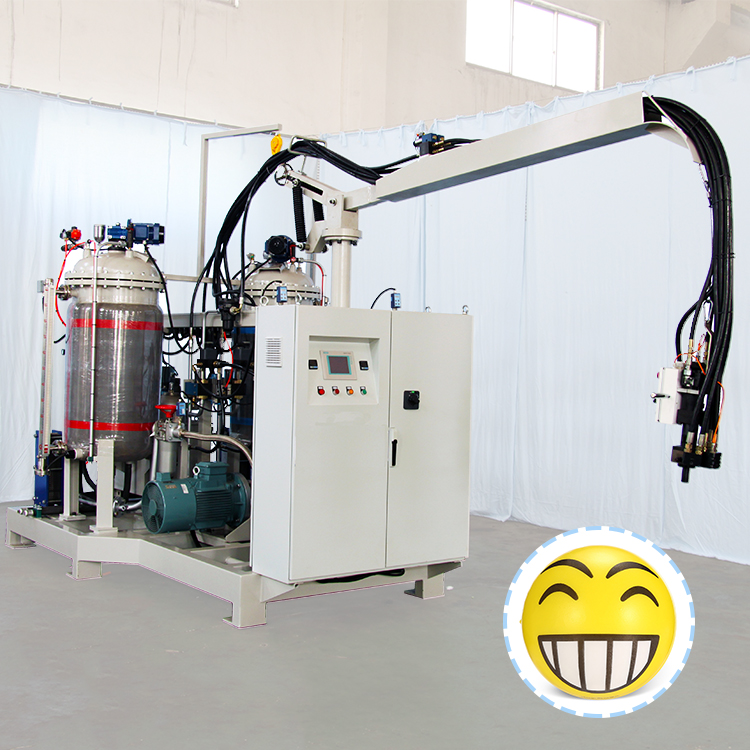

Polyurethane High Pressure Foaming Filling Machine For Stress Ball

Short Description:


Introduction

Detail

Specification

Application

Product Tags

Feature

This polyurethane foaming machine can be used in various industries, such as daily necessities, automobile decoration, medical equipment, sports industry, leather and footwear, packaging industry, furniture industry and military industry.

①The mixing device adopts a special sealing device (independent research and development), so that the stirring shaft running at high speed does not pour material and does not channel material.

②The mixing device has a spiral structure, and the unilateral mechanism gap is 1mm, which greatly improves the product quality and the equipment stability.

③High-precision (error 3.5~5‰) and high-speed air pump are used to ensure the accuracy and stability of the material metering system.

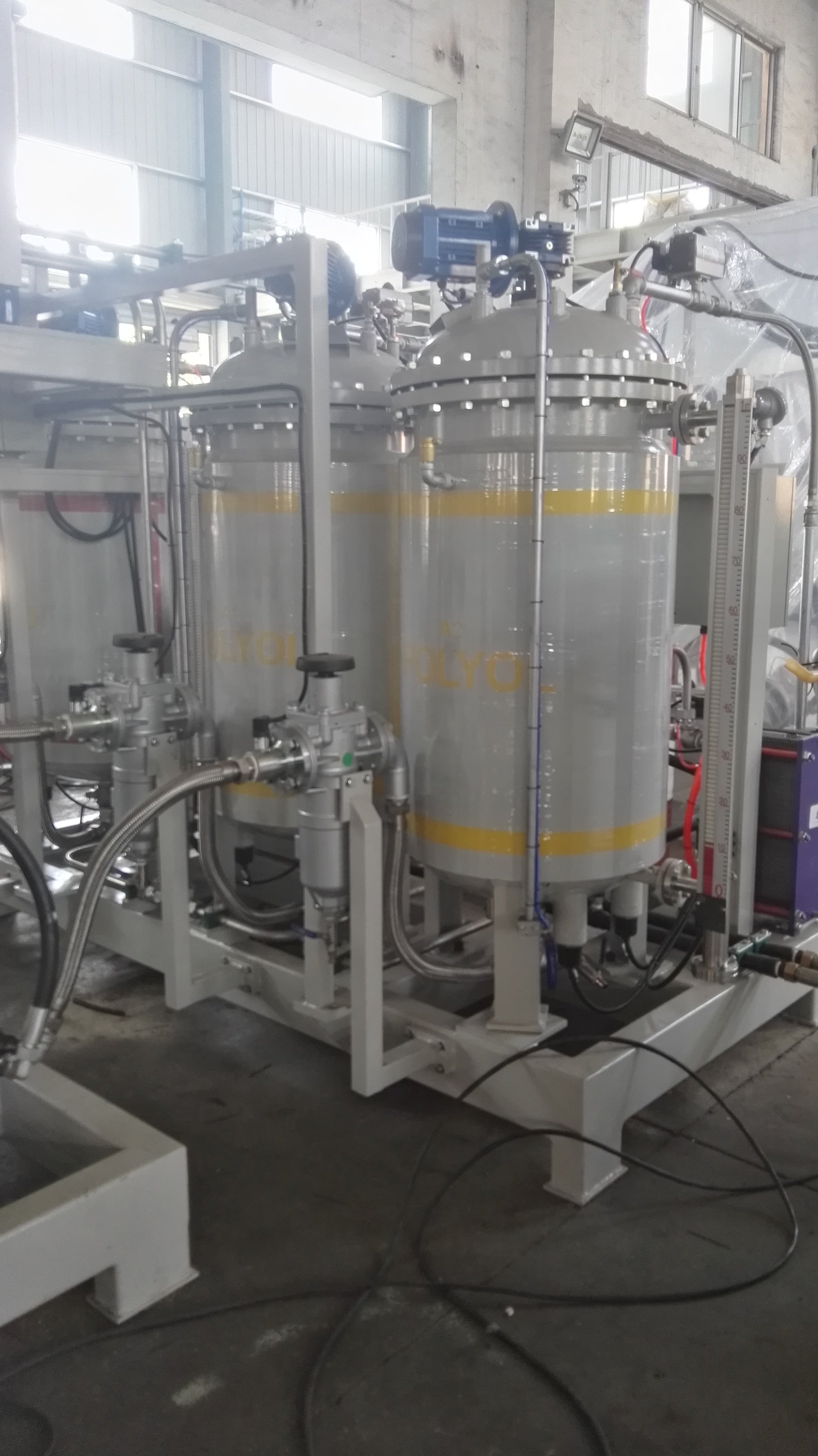

⑤ The raw material tank is insulated by electric heating to ensure the stability of the material temperature.

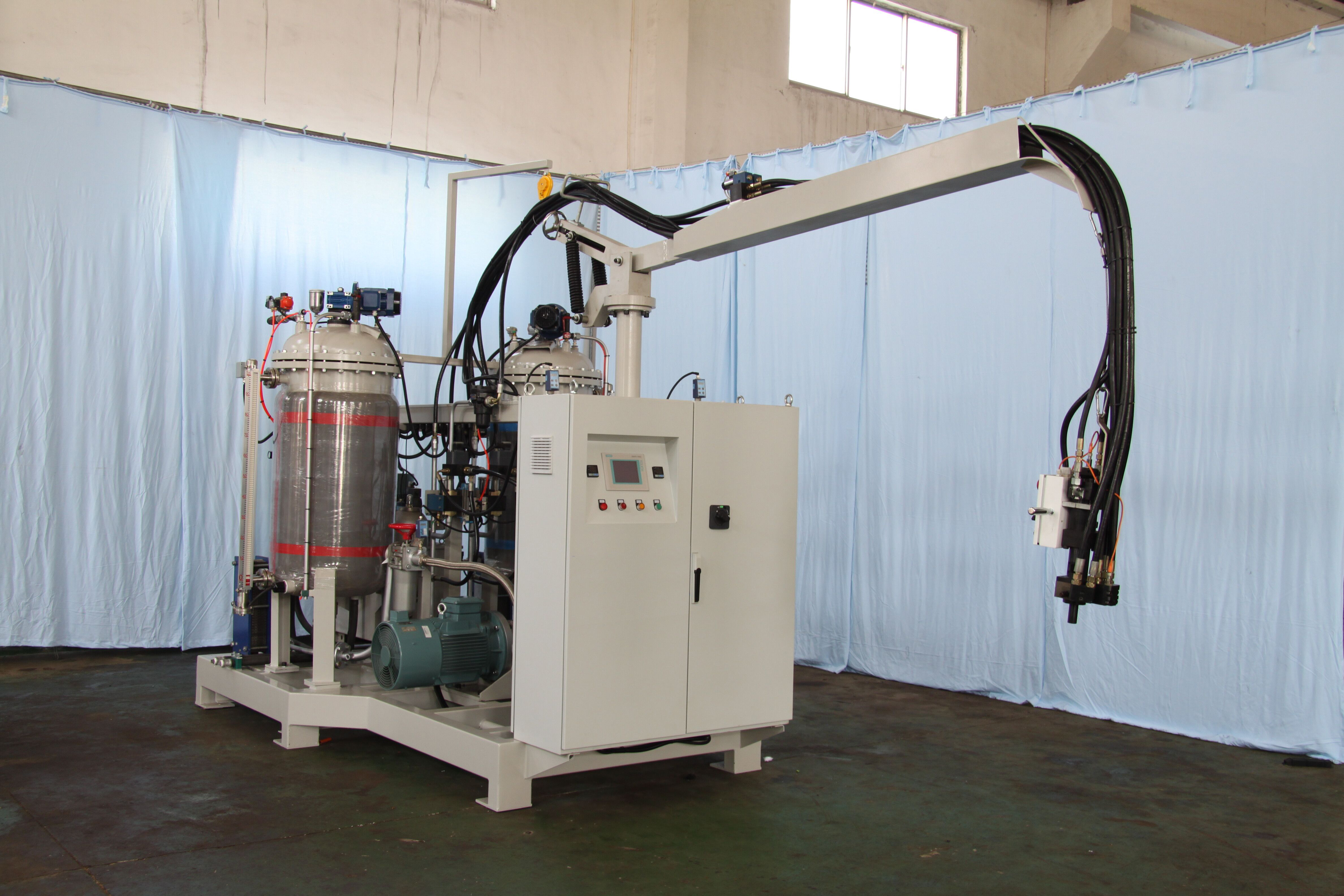

high pressure foam machine


  • Previous:
  • Next:

  • QQ图片20171107104022 QQ图片20171107104100 QQ图片20171107104518 dav

    Item Technical parameter
    Foam application Flexible Foam
    Raw material viscosity(22℃) POLY ~2500MPasISO ~1000MPas
    Injection pressure 10-20Mpa(adjustable)
    Output (mixing ratio 1:1) 10~50g/min
    Mixing ratio range 1:5~5:1(adjustable)
    Injection time 0.5~99.99S(correct to 0.01S)
    Material temperature controlling error ±2℃
    Repeat injection accuracy ±1%

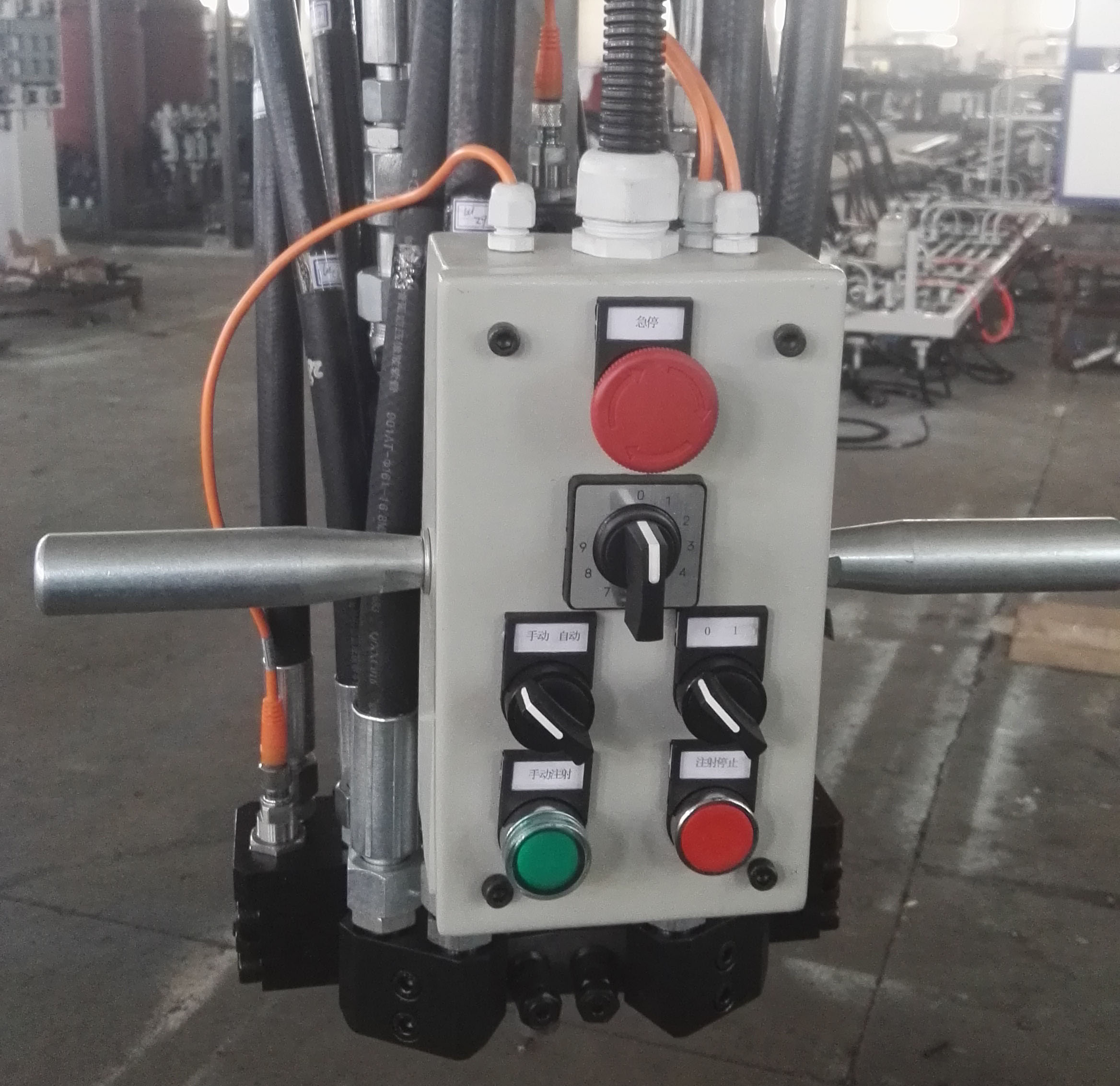

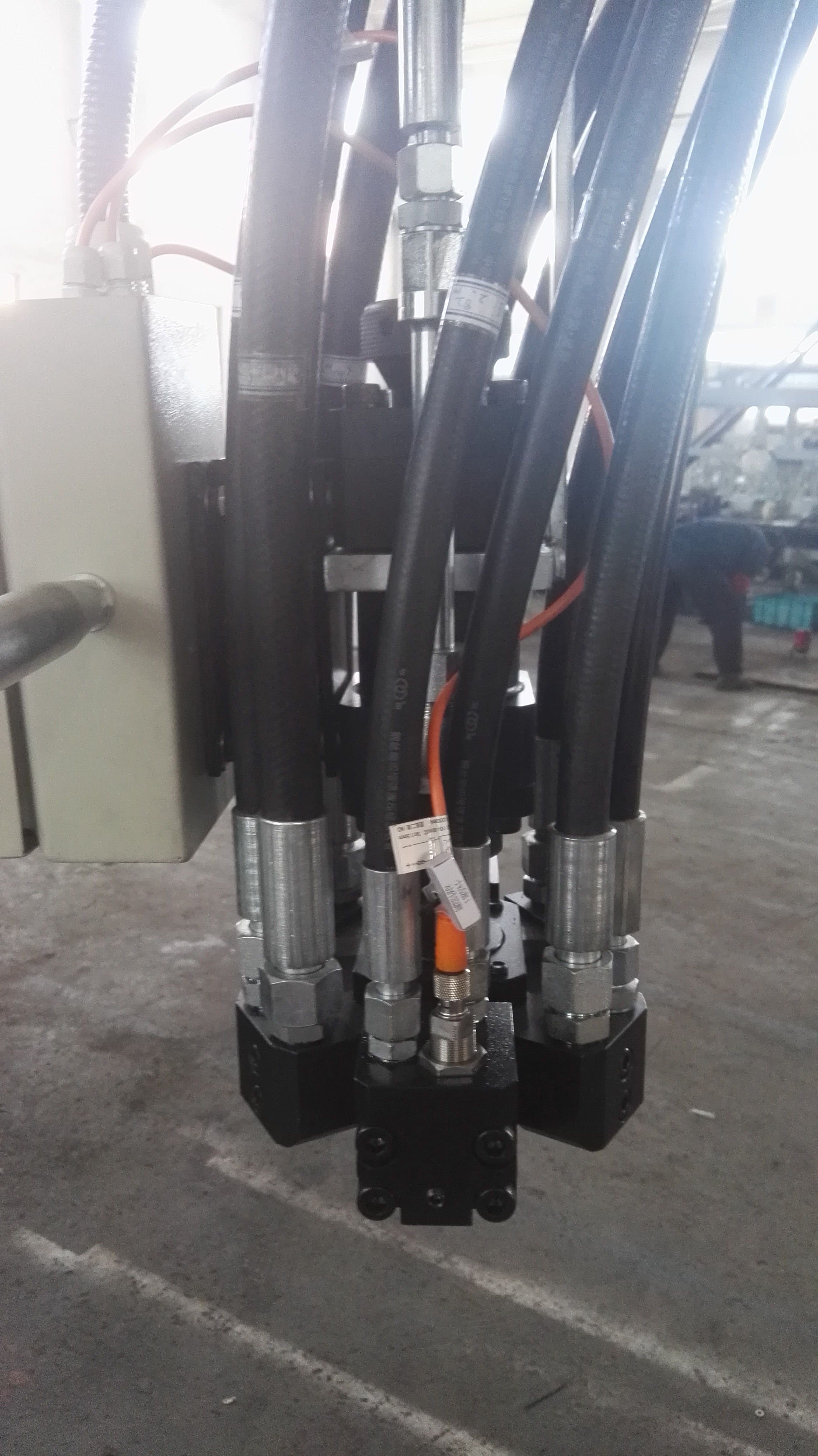

    Mixing head Four oil house,double oil cylinder
    Hydraulic system Output: 10L/minSystem pressure 10~20MPa
    Tank volume 500L
    Temperature control system Heat: 2×9Kw
    Input power Three-phase five-wire 380V

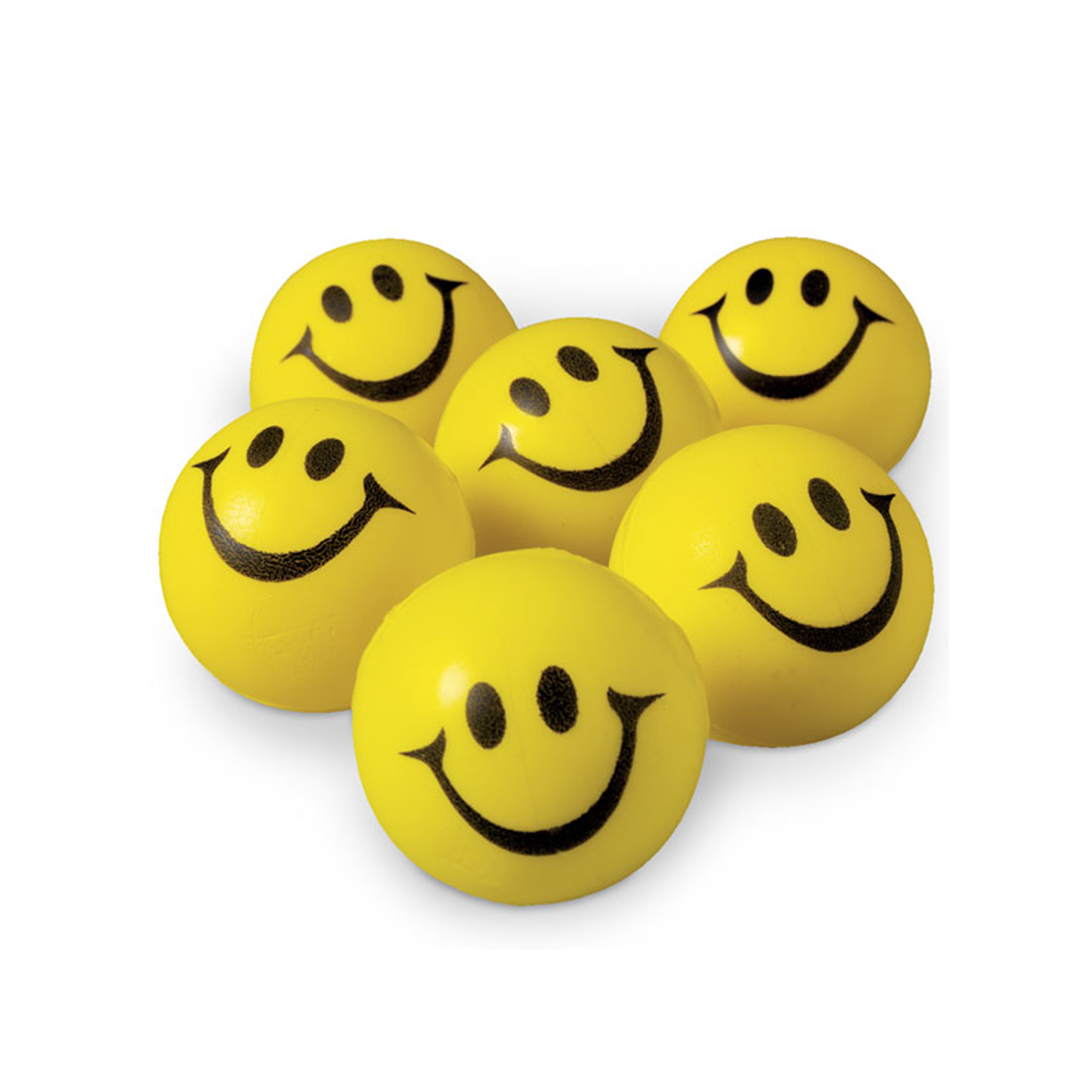

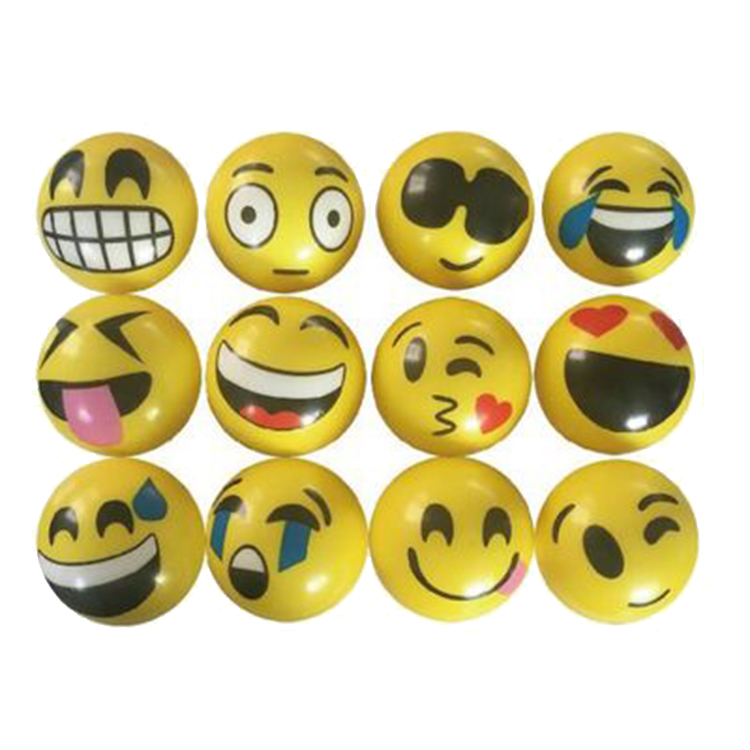

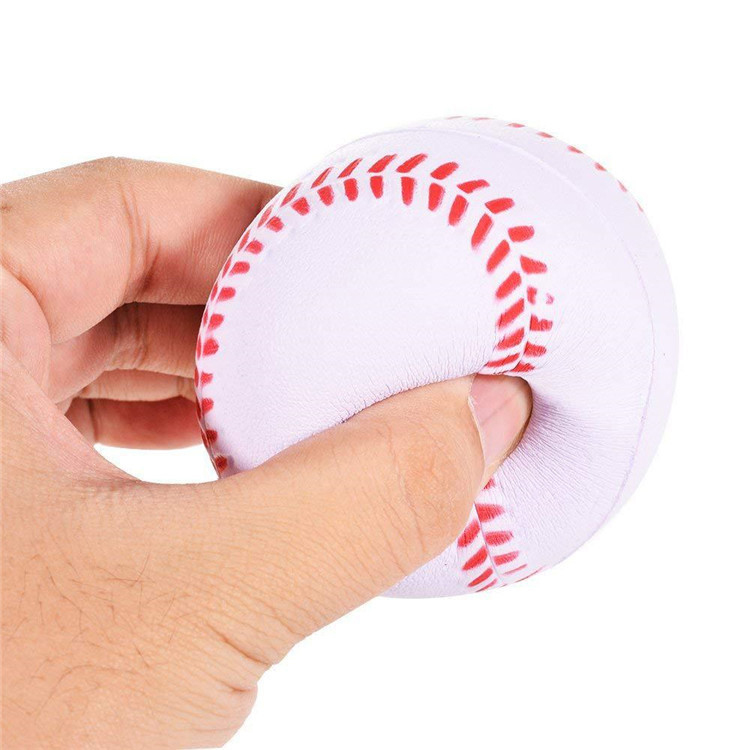

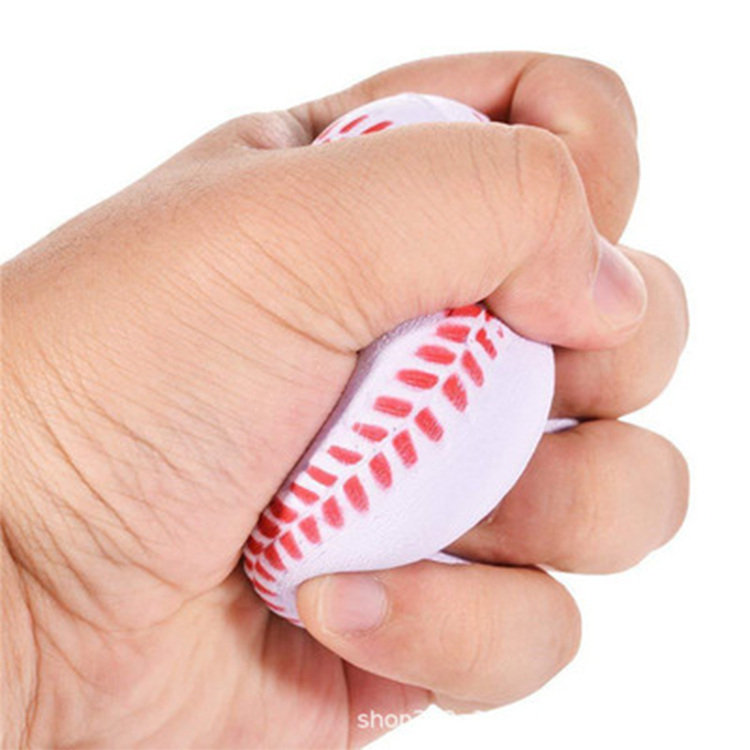

    polyurethane ball2 polyurethane ball8 polyurethane ball10 polyurethane ball11 stress ball4 stress ball6
