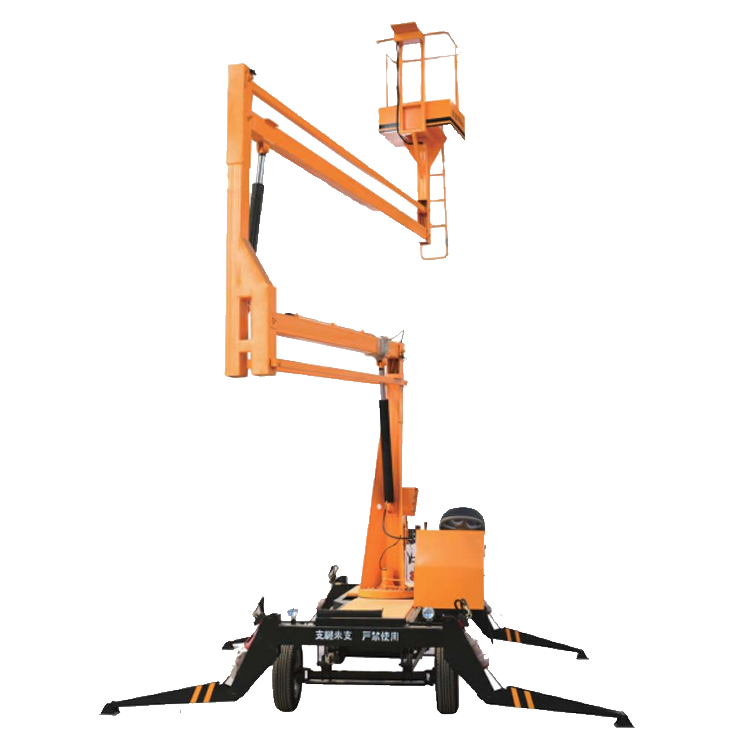

Ordinary Curved Arm Aerial Working Platform Curved Arm Llifting Platform Series

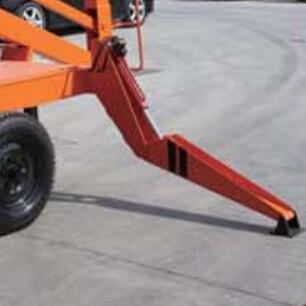

Self- -drive Articulating Lit for indoor and ouldoor work With self walking, self supporing legs, simple operation, easy to use, large operating surface, in particular, can Cross a certain obstace or a lift can be carried out at the characteristics of multi- point aerial work. Widely used in roads, docks, stadiums, shopping malls, residential property, factories and workshops and large- scale operation. Power can choose diesel engine, batlr, diesel electric dual- use.
| Product name | Load/KG | Size：length, width and height（mm) |
platform size/ |
Platform height/m |
Weight/kg |
Working radius | Diesel engine/battery power |
| 8 meters(Diesel engine) Curved arm lifting platform |
230 |
3800*1800*2600 |
1000*700 |
8 |
1800 |
Lifting to 6.5m, working radius 3.2m |
Diesel engine 15hp |
| 10 meters(Diesel engine) Curved arm lifting platform |
230 |
3800*1800*2600 |
1000*700 |
10 |
1800 |
Lifting to 6.5m, working radius 3.2m |
Diesel engine 15hp |
| 12 meters(Diesel engine) Curved arm lifting platform |
230 |
3800*1800*2900 |
1000*700 |
12 |
1900 |
Lifting to 8m, working radius |
Diesel engine 15hp |
| 14 meters(Diesel engine) Curved arm lifting platform |
200 |
5200*1800*2900 |
1000*700 |
14 |
2200 |
Lifting to 9m, working radius |
Diesel engine 15hp |
| 8 meters (battery) Curved arm lifting platform |
230 |
3800*1800*2600 |
1000*700 |
8 |
1800 |
Lifting to 6.5m, working radius 3.2m |
battery 80ah* 5 pcs |
| 10 meters (battery) Curved arm lifting platform |
230 |
3800*1800*2600 |
1000*700 |
10 |
1800 |
Lifting to 6.5m, working radius 3.2m |
battery 80ah* 5 pcs |
| 12 meters (battery) Curved arm lifting platform |
230 |
3800*1800*2900 |
1000*700 |
12 |
1900 |
Lifting to 8m, working radius |
battery 80ah* 5 pcs |
| 14 meters (battery) Curved arm lifting platform |
200 |
5200*1800*2900 |
1000*700 |
14 |
2200 |
Lifting to 9m, working radius |
battery 80ah* 5 pcs |
