Polyurethane Low Pressure Foam Filling Machine For Door Garage
Description
Market users most polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer’s request various pours out of the machine
Feature
1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
2.Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
3.Low speed high precision metering pump, accurate ratio, random error within 卤0.5%;
4.Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;

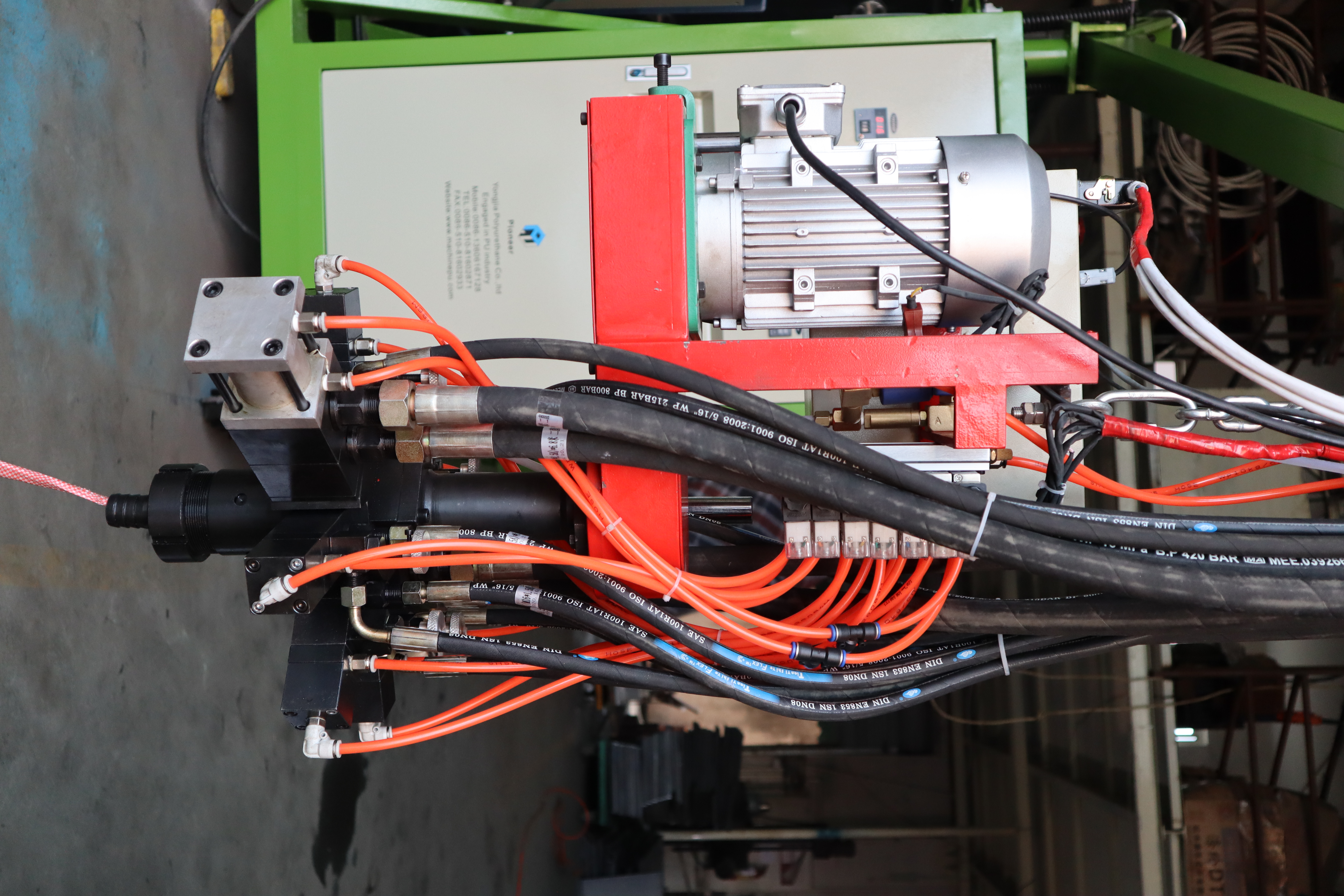

5.High-performance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime;

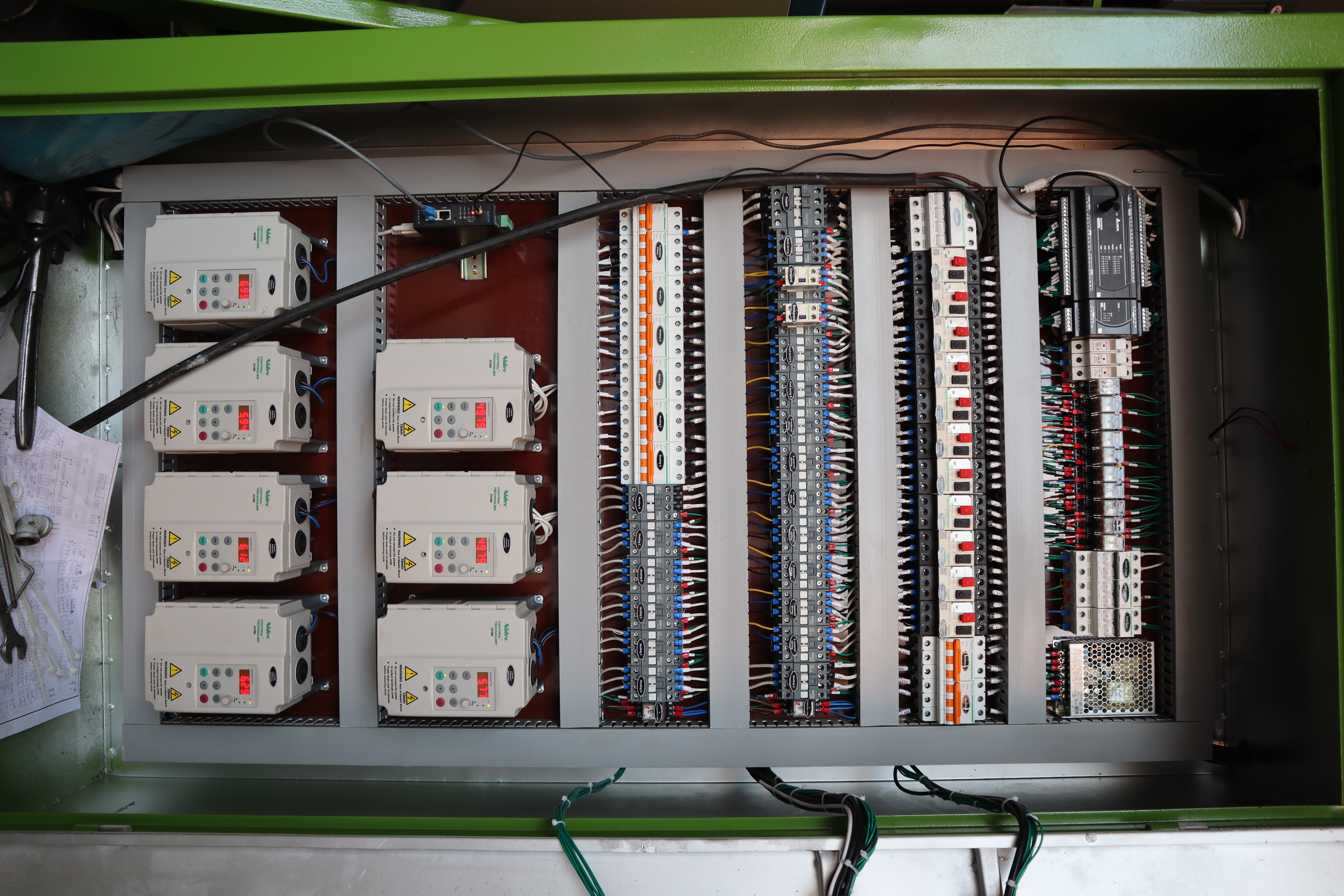

6.Adopting PLC and touch screen man-machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors;
| No. | Item | Technical parameter |

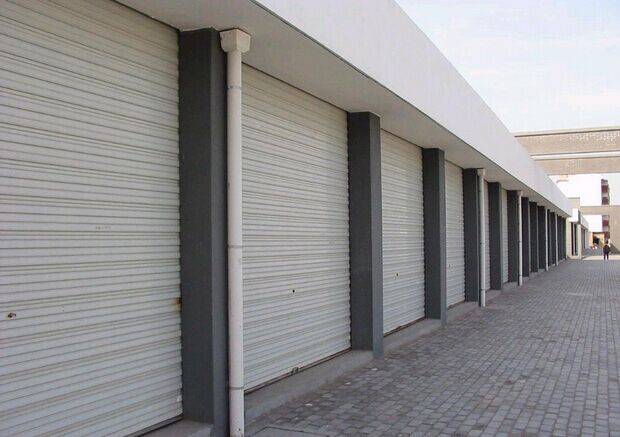

| 1 | Foam application | Rigid Foam Shutter Door |
| 2 | Raw material viscosity(22℃) | POL ～3000CPS ISO ～1000MPas |
| 3 | Injection flow rate | 6.2-25g/s |
| 4 | Mixing ratio range | 100:28～48 |
| 5 | Mixing head | 2800-5000rpm, forced dynamic mixing |
| 6 | Tank Volume | 120L |
| 7 | Input power | Three-phase five-wire 380V 50HZ |
| 8 | Rated power | About 11KW |
| 9 | Swing arm | Rotatable 90°swing arm, 2.3m (length customizable) |
| 10 | Volume | 4100(L)*1300(W)*2300(H)mm, swing arm included |
| 11 | Color( customizable) | Cream-colored/orange/deep sea blue |
| 12 | Weight | About 1000Kg |
