Polyurethane Elastomer Casting Machine For High Quality Ceramic

Short Description:


Introduction

Detail

Specification

Application

Product Tags

1. Precision metering pump

High temperature resistant, low speed high precision, accurate measurement, random error <±0.5%

2. Frequency converter

Adjust material output, high pressure and precision, simple and rapid ratio control

3. Mixing device

Adjustable pressure, accurate material output synchronization and even mix

4. Mechanical seal structure

New type structure can avoid reflux problem

5. Vacuum device & Special mixing head

High-efficiency and ensure products no bubbles

6. Heat transfer oil with electromagnetic heating method

Efficient and energy saving

7. Multi-point temp. control system

Ensure stable temperature, random error <±2°C

8. PLC and touch screen man-machine interface

Control pouring, automatic cleaning flush and air purge, stable performance, high operability, which can automatically distinguish, diagnose and alarm abnormal situations as well as display abnormal factories

1A4A9456


  • Previous:
  • Next:

  • Pour head

    High-performance mixing device, adjustable pressure, accurate and synchronous raw material discharge, uniform mixing; new mechanical seal to ensure no material pouring;

    1A4A9458

    Metering pump Variable frequency motor

    High-temperature, low-speed, high-precision metering pump, accurate metering, and the accuracy error does not exceed ±0.5%; the raw material flow and pressure are adjusted by the frequency converter and the frequency conversion motor, with high precision and simple and fast proportional adjustment;

    1A4A9503

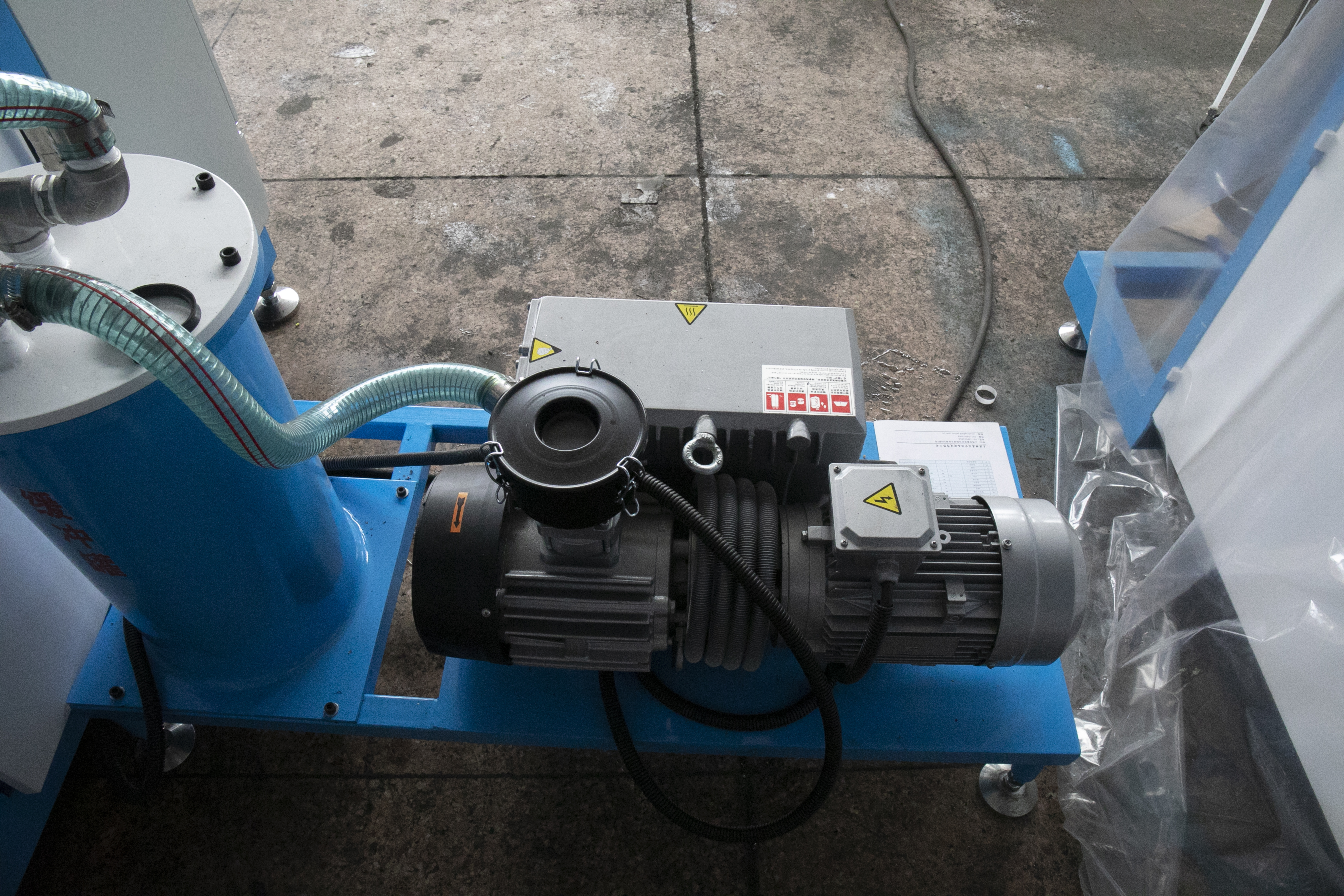

    Control System

    Using PLC, touch screen man-machine interface to control equipment pouring, automatic cleaning and air flushing, stable performance, strong operability, automatic identification, diagnosis and alarm when abnormal, abnormal factor display; can be loaded with remote control, forget cleaning function, automatic power failure Additional functions such as cleaning and discharging.

    1A4A9460

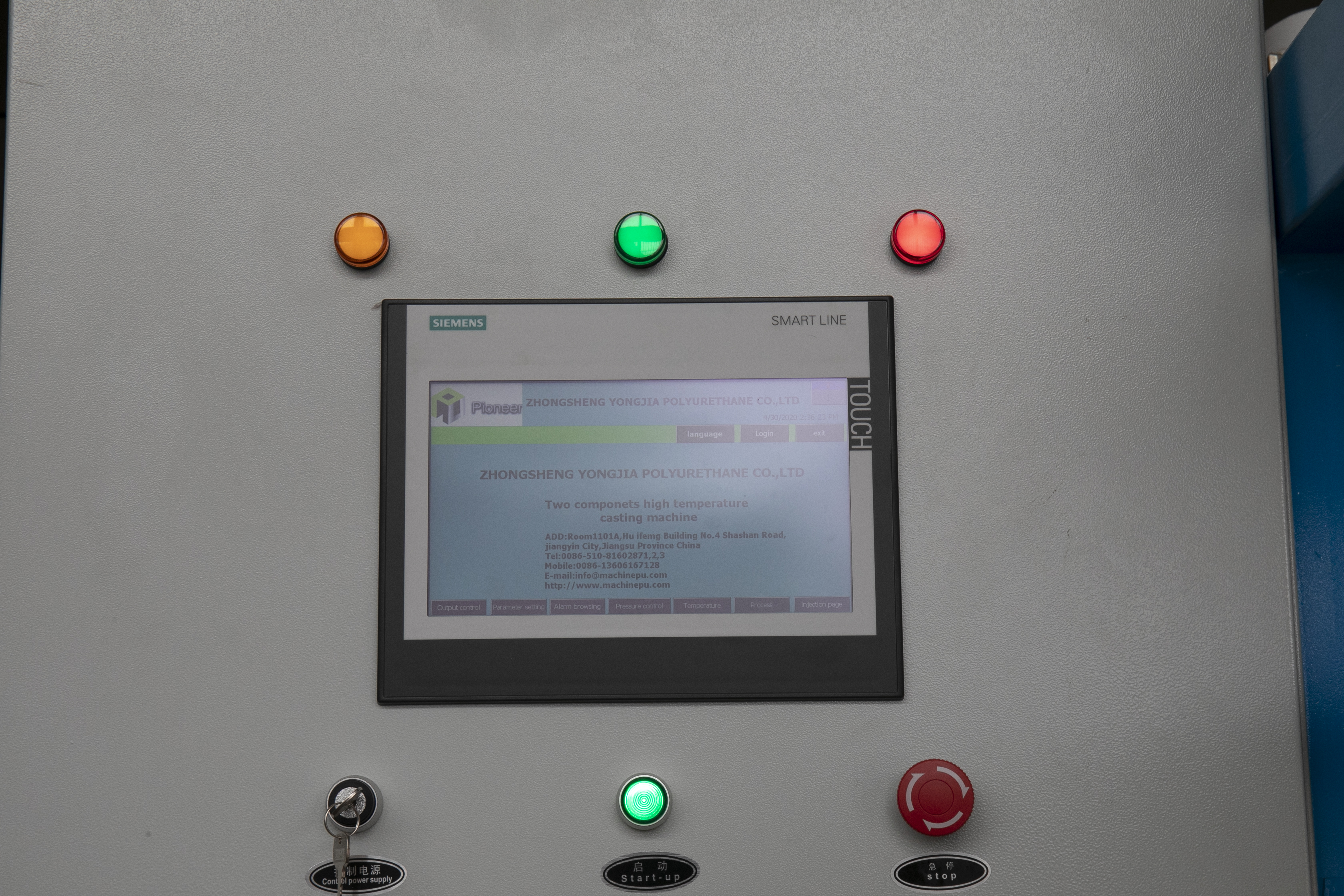

    Vacuum and stirring system
    Efficient vacuum defoaming device, combined with special stirring head, ensures that the product is free of bubbles;

    1A4A9499

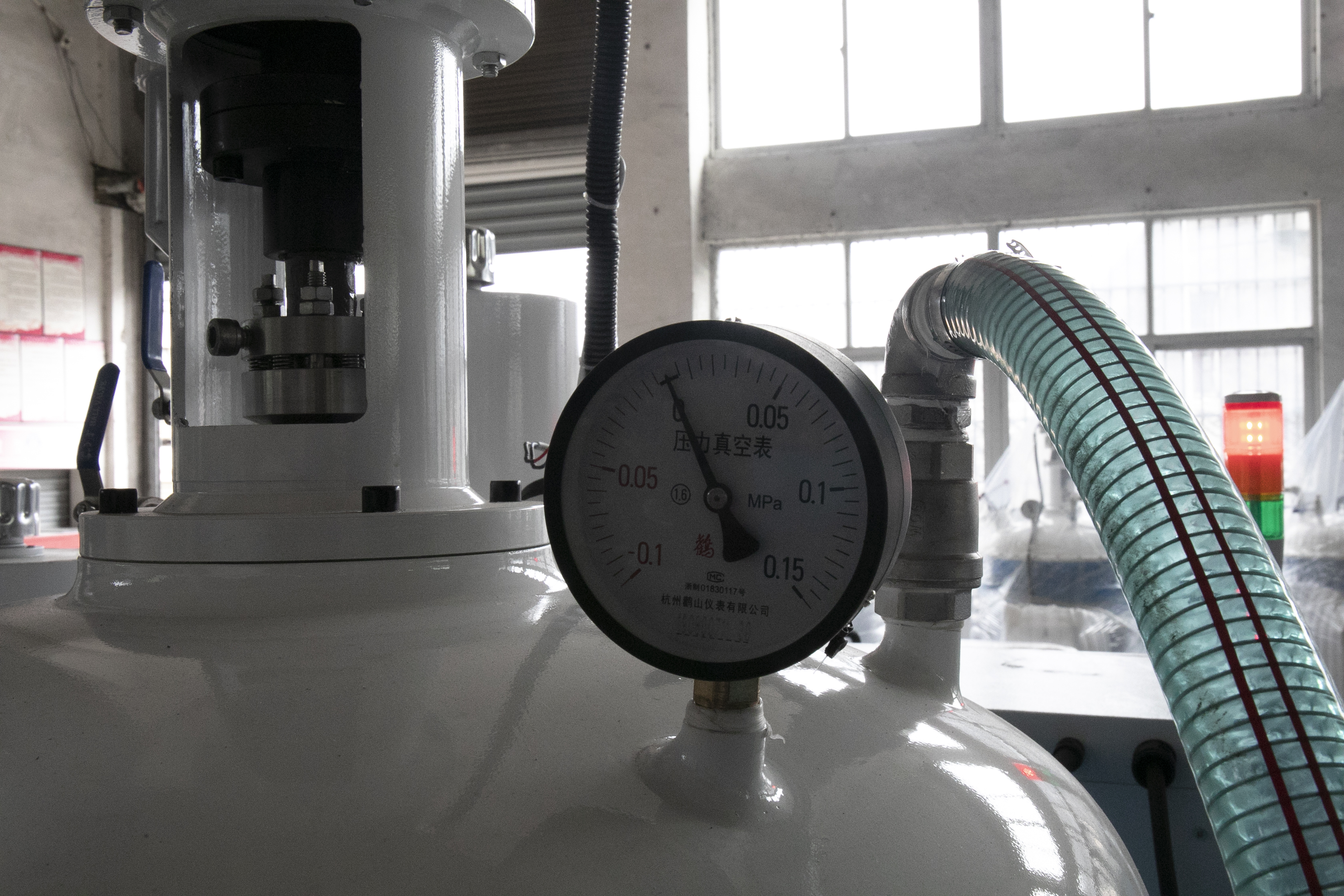

    Item Technical Parameter
    Injection Pressure 0.01-0.6Mpa
    Injection flow rate SCPU-2-05GD 100-400g/min

    SCPU-2-08GD 250-800g/min

    SCPU-2-3GD 1-3.5kg/min

    SCPU-2-5GD 2-5kg/min

    SCPU-2-8GD 3-8kg/min

    SCPU-2-15GD 5-15kg/min

    SCPU-2-30GD 10-30kg/min

    Mixing ratio range 100:8~20(adjustable)
    Injection time 0.5~99.99S (correct to 0.01S)
    Temperature control error ±2℃
    Repeated injection precision ±1%
    Mixing head Around 6000rpm, forced dynamic mixing
    Tank volume 250L /250L/35L
    Metering pump JR70/ JR70/JR9
    Compressed air requirement Dry, oil free  P:0.6-0.8MPa

    Q:600L/min(Customer-owned)

    Vacuum requirement P:6X10-2Pa

    Speed of exhaust:15L/S

    Temperature control system Heating: 31KW
    Input power Three-phrase five-wire,380V 50HZ
    Rated power 45KW

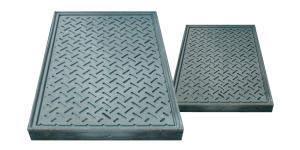

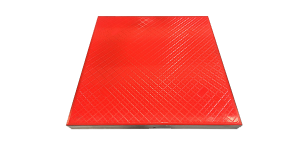

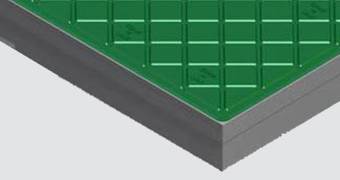

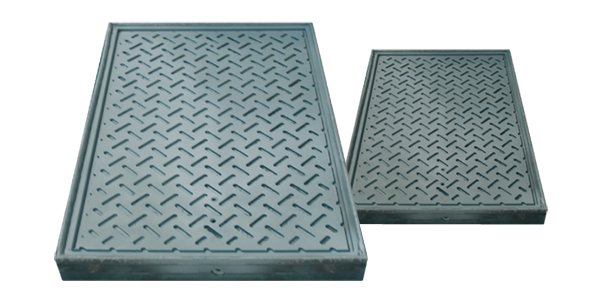

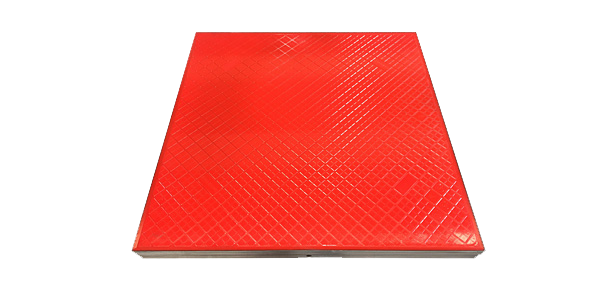

    5_tamponi-marca-tradizional foto_tampone_plus_web Tampone-isostaticoad-effetto-compensante
