Polyurethane Flexible Foam Car Seat Cushion Foam Making Machine

Short Description:

This production line is used to produce all type of polyurethane seat cushion. For example: car seat cushion, furniture seat cushion, motorcycle seat cushion, bicycle seat cushion, office chair, etc.


Introduction

Details

Specification

Application

Video

Product Tags

Product application:
This production line is used to produce all type of polyurethane seat cushion. For example: car seat cushion, furniture seat cushion, motorcycle seat cushion, bicycle seat cushion, office chair, etc.

ptr

Product component:
This equipment includes one pu foaming machine(can be low or high pressure foam machine) and one production line.It can be customized according to the products which the users need to produce.




  • Previous:
  • Next:

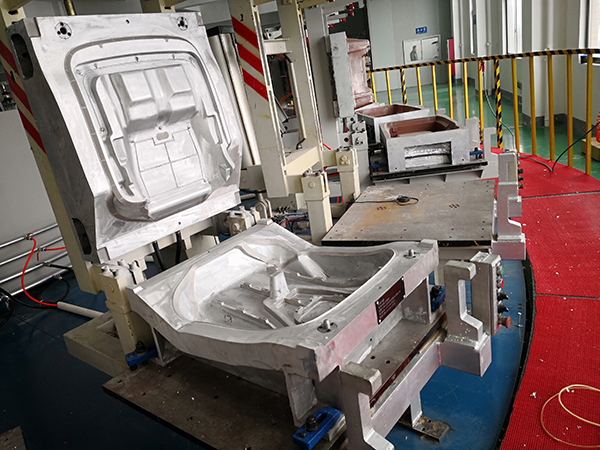

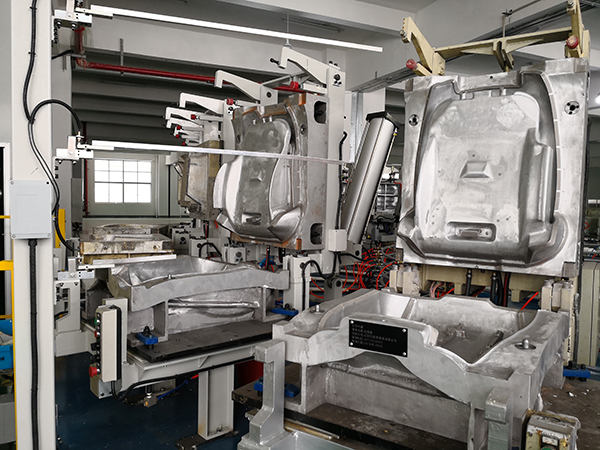

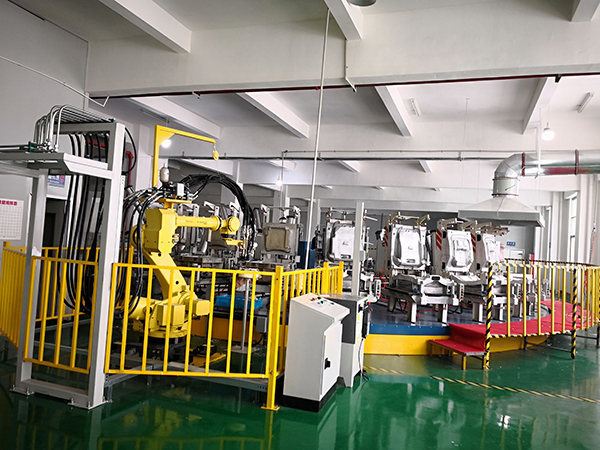

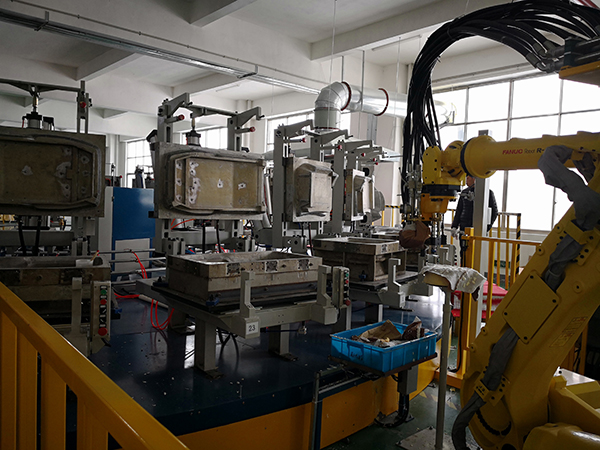

  • The foaming line is composed of 1 oval line with 37 conveyors, 36 carriers, 12 water heaters, 1 air compressor, safety system and electric control system.
    The oval line works in continue mode, moulds opened and closed by piping cam.

    ptr

    Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclsively adopted); single button operation for convenient operation; switching to a different density or color at any time; easy to maintain and operate.

    dav

    Control: Microcomputer PLC control; TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm devices. Imported frequency converter (PLC) can control the proportion of 8 different products.

    No. of Carriers: 36 set
    Take time:10-20s/Conveyor, frequency adjustable
    Mould weight load :36 x 2.2 ton max.
    Mould open and close system: Piping cam
    Mould carrier dimensions : Inner-1600 * 1050 *950 mm (Without box)
    Pitch of mould carriers mounting on conveyor: 2000 mm
    Chain Tightening: Hydraulic
    Mould Tilting arrangement after pouring:Yes
    3 pieces mould option in the carriers : Yes
    Pouring code method : software
    Mould temperature : 12 units 6Kw water heaters
    Air compress : 1 unit 7.5Kw compressor
    Carrier table size :1050 x 1600mm
    Clamping pressure : 100KN
    Safety system : Yes
    Electrical Control : Siemens

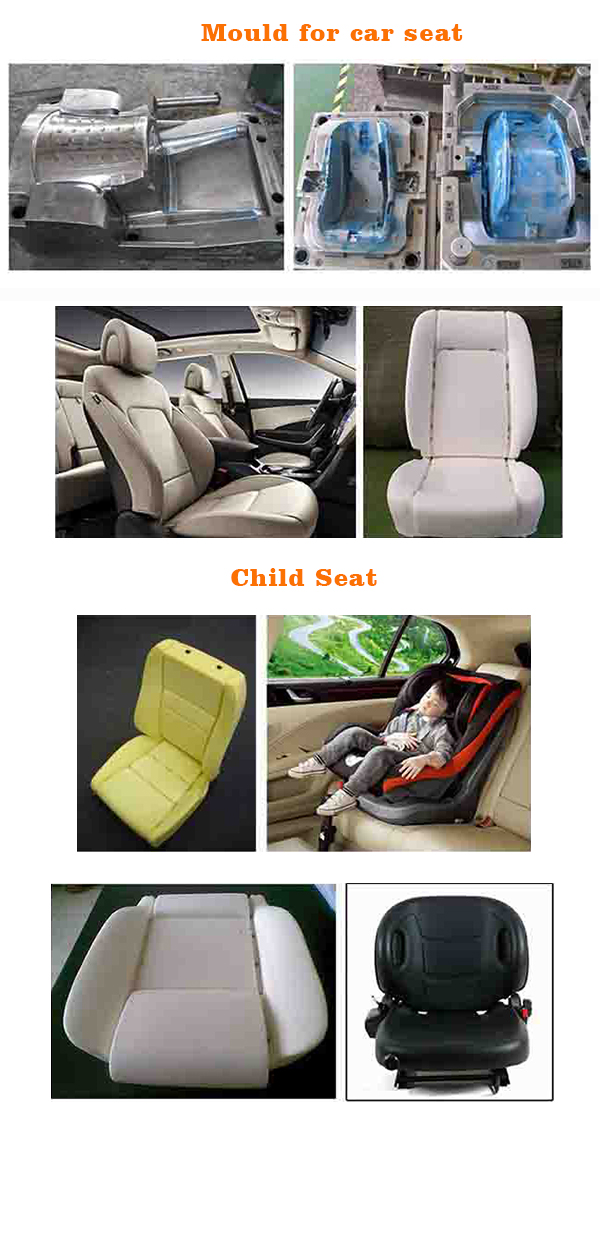

    This is one set of molded pu foaming production line, it can produce different types of sponges products. Its sponges products(high-resilient and viscoelastic) are mainly for high and medium level markets. For example, memory pillow,mattress, bus and car seat mat, bicycle and motorcycle seat mat, assembly chair, office chair, sofa and other one-time molded sponges.
