Electric Curved Arm Aerial Work Vehicle Self Propelled Curved Arm Lifting Platform
Feature

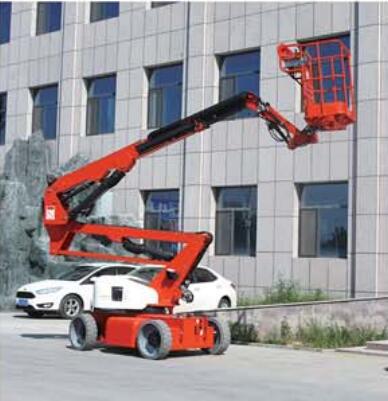

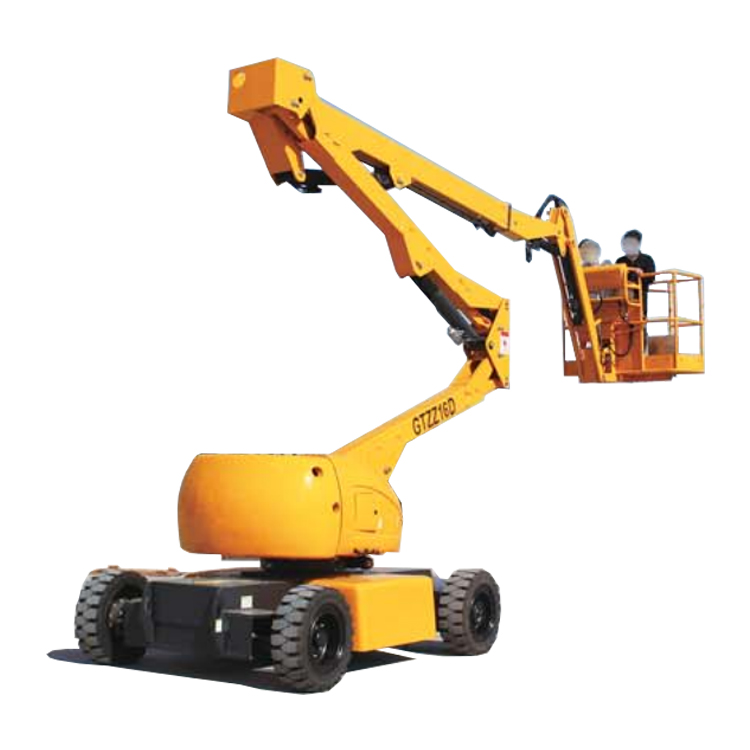

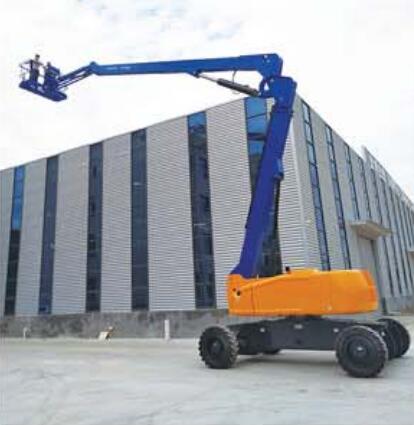

The power of the self- propelled crank arm aerial work platform is divided into diesel engine type, DC motor type, the liting arm has two sections, three sections, the liting height is from 10 meters to 32 meters, all models are full- height walking, the crank arm extends and lfts, and the turntable rotates 360°Diferent models are equipped with different power sources to meet the different requirements of indoor and outdoor. Driven by diesel engine or battery power, combined with effective geometric design and long spanning radius, this model can effectiely avoid ificult obstacles. The compact industrial design chassis and excellent in-situ zero tail swing rotation capability, so the self-propelled crank arm lifting work platform of less than 20 meters can be flexibly operated in a limited space. The self-propelled crank arm lfting platform is your ideal tool for high-altitude operations such as maintenance, installation and trimming.
| Product name |
Model |

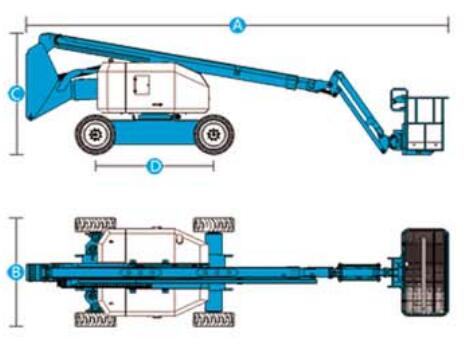

Load/kg | Size：length, width and height（mm) |
platform size/ |
Platform height/m |
Weight/kg |
Working radius(M) | Maximum crossing height（M) |
el engine/ battery p |
walking power/lifting power |
| 10m Self propelled curved arm lifting platform | FQPT-10D （battery） |
200 |
5500*1650*2350 |
1880*780 |
10 |
5100 |
5.3 |
5.1 |
2V×24/250AH |
4.5kw/DC48v/ 4kw/DC48v |
| 12m Self propelled curved arm lifting platform | FQPT-12D（battery） |
200 |
6300*1780*2350 |
1880*780 |
12 |
6100 |
5.8 |
5.7 |
2V×24/250AH |
4.5kw/DC48v/ 4kw/DC48v |
| 14m Self propelled curved arm lifting platform | FQPT-14D（battery） |
200 |
7000*1780*2350 |
1880*780 |
14 |
6900 |
8 |
7.6 |
2V×24/250AH |
4.5kw/DC48v/ 4kw/DC48v |
| 16m Self ropelled curved arm lifting platform | FQPT-16D（battery） |
200 |
7180*2040*2200 |
1880*780 |
16 |
7600 |
8.9 |
8.25 |
2V×24/250AH |
5.5kw/DC48v/ 4kw/DC48v |
| 18m Self propelled curved arm lifting platform | FQPT-18D（battery） |
200 |
8860*2250*2530 |
1880*780 |
18 |
9200 |
10.6 |
8.55 |
2V×24/250AH |
5kw/DC48V/ 5.5kw/DC48V |
