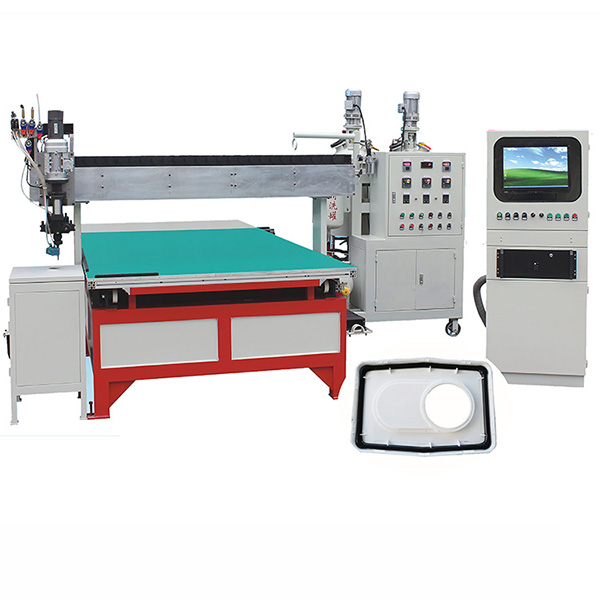

FIPG Cabinet Door PU Gasket Dispensing Machine

Short Description:

Automatic sealing strip casting machine is widely employed in the foaming production of electric cabinet door panel, automobile air filter gasket of electric box, air filter of auto, industry filter device and other seal from electrical and lighting equipment. This machine has high repeat injection


Introduction

Details

Specification

Application

Product Tags

Automatic sealing strip casting machine is widely employed in the foaming production of electric cabinet door panel, automobile air filter gasket of electric box, air filter of auto, industry filter device and other seal from electrical and lighting equipment. This machine has high repeat injection precision, even mixing, stable performance, easy operation, and high production efficiency.

Features
Independent development 5-Axis Linkage PCB boards, help produce various shapes product such as round, square, oval, prismatic, trapezoid etc. special shapes.
Adopt international brand servo motor for X/Y axis of worktable, PCB boards supply reimbursed time, ensure synchronization between casting and waling of mixing head.
Adopt high precision metering low speed metering pumps, variable frequency speed regulation, ratio accuracy, output error ≤ 0.5%.

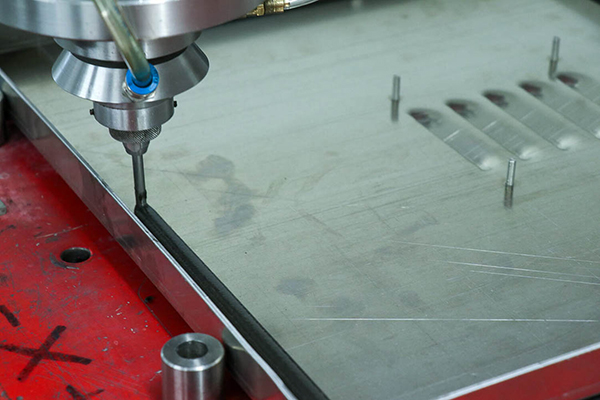

Adopt Rotary valve type mixing head to ensure synchronism of A/B component discharging. Mixing head will return to the beginning to clean and air push after casting works automatically.

002

003

005


  • Previous:
  • Next:

  • Material Tank:
    A、B component material tank
    Tank body with three layer structure: Inner tank is made of acid-resistant stainless steel (argon-arc welding); there is spiral baffle plate in the heating jacket, making heating evenly, To prevent water temperature from going too high so that the tank material polymerization kettle thickening. Out layer covered with PU foam insulation, the efficience is better than the asbestos, achieve the function of low energy consumption.

    X、Y working platform
    XY axis two-dimensional controlled by servo motor driving, so to achieve relative movement between pouring head and working platform, and the required casting line for products.

    Electrical control system
    Composed of power switch, air switch, AC contactor and the entire power, heating control elements circuit like heating and others. Equipment operation accomplished by digital display temperature controller, digital display pressure gage and PLC (pouring time and automatic cleaning), so as to ensure its well running.

    No.

    Item

    Technical Parameter

    1

    Foam Application

    High resilience sealing strip

    2

    Raw material viscosity(22℃)

    POL ~2500MPas

    ISO   ~1000MPas

    3

    Injection Pressure

    0.01-0.1Mpa

    4

    Injection Output
    3.1-12.5g/s(adjustable)

    5

    Mixing ratio range

    1:5

    6

    Injection time

    0.5~99.99S(correct to 0.01S)

    7

    Material temperature controlling error

    ±2℃

    8

    Repeat injection accuracy

    ±1%

    9

    Mixing head
    2800-5000rpm, forced dynamic mixing

    10

    Material tank volume

    120L

    11

    Metering pump

    JR3.6/JR2.4

    12

    Compressed air requirement

     dry, oil free  P:0.6-0.8Mpa

    Q:600NL/min(Customer-owned)

    13

    Temperature control system

    heat:3×6KW

    14

    Input power

    Three-phase five line, 380V 50HZ

    15

    Rated power

    18KW

    17

    Color( customizable)

    white

    Form-in-place liquid gaskets are increasingly used to reduce necessity in various sizes and shapes of the gaskets and to make better sealing properties of the gaskets, making them seamless.
    FIPG technology is widely used in automotive industry, electronic industry, electricity and lightening where required to reach a high sealing properties and IP protection.
    One of the main field is a manufacture of the electric cabinets, distribution boxes (DB boxes), electric enclosures. The doors of the boxes have different sizes and different dimensions of PU foamed sealing are required. It is possible to change dimensions of the cure-in-place gaskets in the range of 6mm to 20mm and modify density of the gaskets, depending of the doors dimensions and sealing properties in order to reach comfortable opening and closing of the doors of electric DB boxes with saving insulating requirements.

    005

    003

    004

    001
