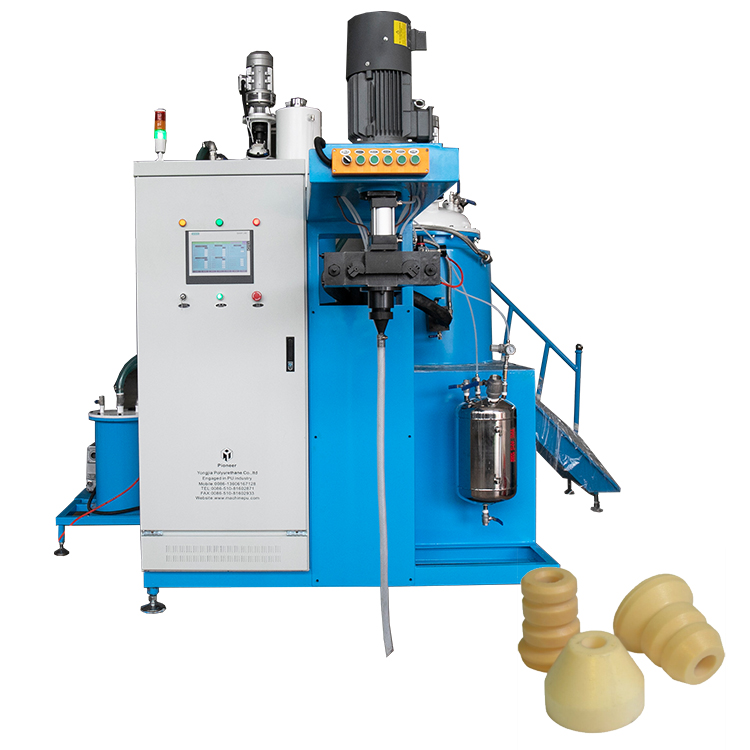

Polyurethane Absorber Bump Making Machine PU Elastomer Casting Machine

Short Description:

The elastomer casting machine mixes prepolymer (prepolymer heated to 80°C under vacuum defoaming) with chain extender or MOCA (chain extender MOCA heated to 115°C molten state), Stir and mix evenly under high temperature conditions, quickly pour it into a preheated mold at 100 C, then press and vulc


Introduction

Detail

Specification

Application

Product Tags

Feature
1. Using a low-speed high-precision metering pump (temperature resistance 300 °C, pressure resistance 8Mpa) and a constant temperature device, the measurement is accurate and durable.

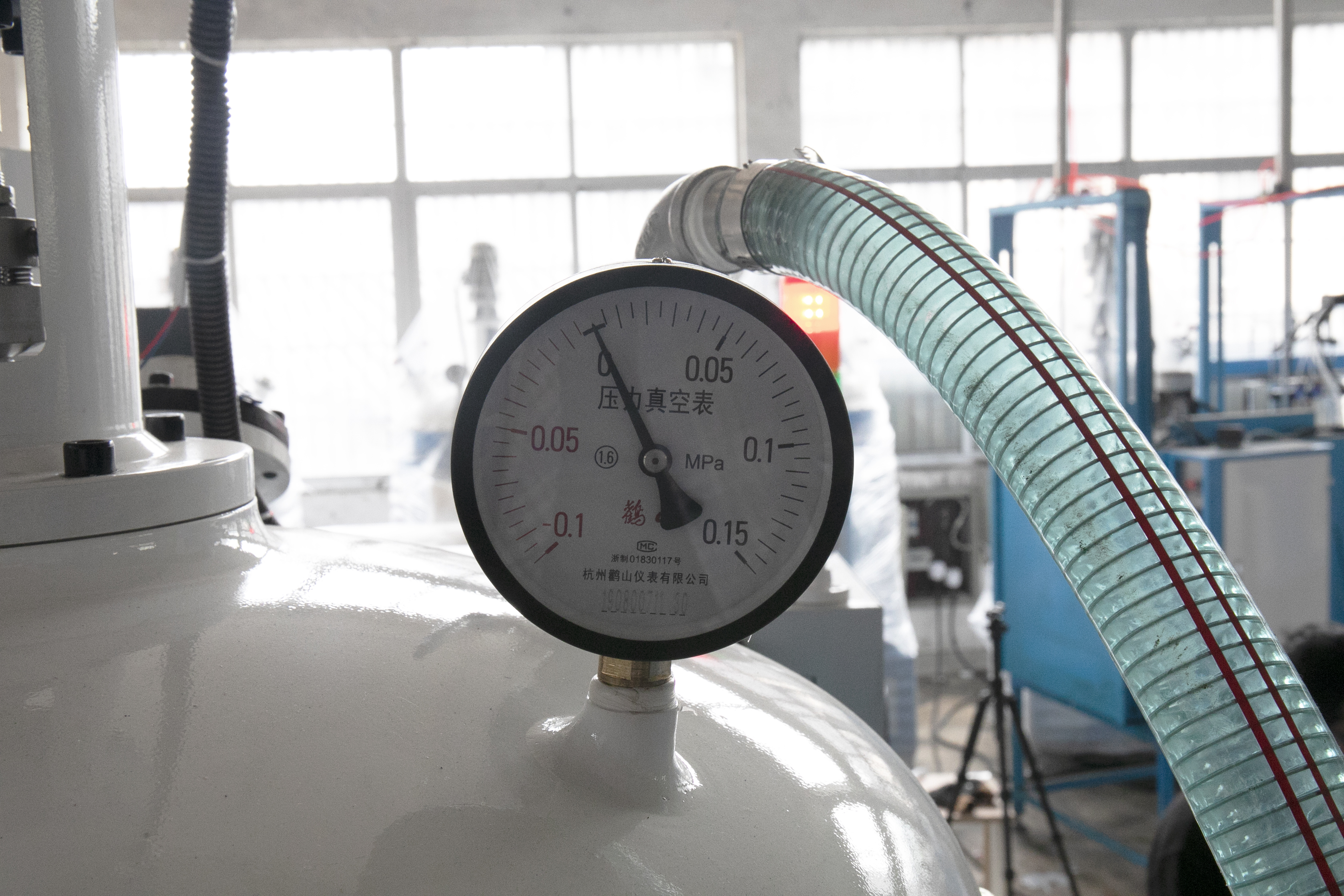

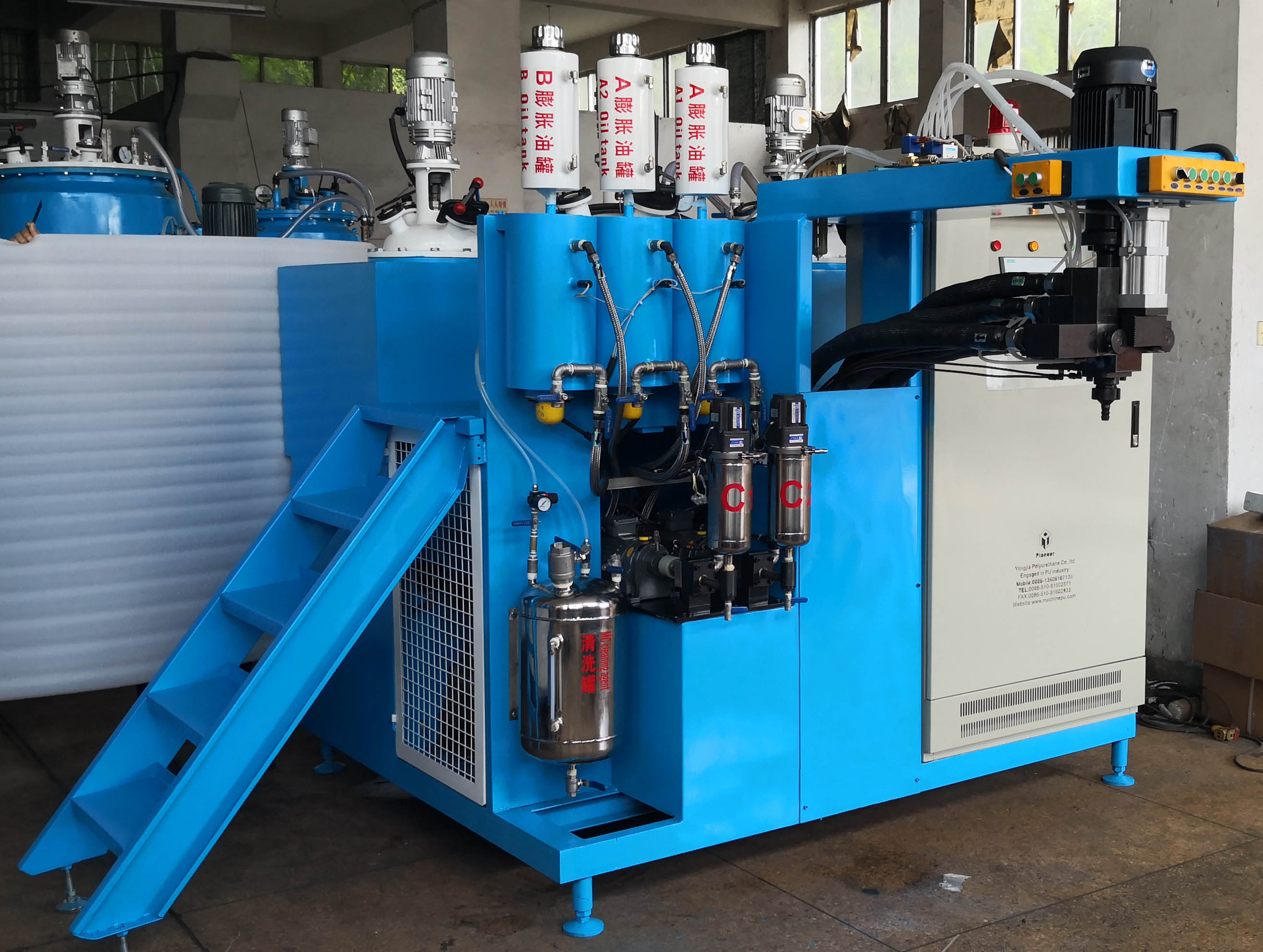

2. The sandwich-type material tank is heated by acid-resistant stainless steel (inner tank). The inner layer is equipped with a tubular electric heater, the outer layer is provided with polyurethane heat insulation, and the material tank is equipped with a moisture-proof drying cup device. High-precision new type sealing device ensures high vacuum in the tank and improves product quality.
3. Products with different colors or different hardness can be produced (color can be added).
4. When the two prepolymers (formulas) are the same, they can be switched in an instant to produce different colors or the same color and the same hardness, which can also be regarded as a two-component pouring machine (the capacity of the A raw material tank is doubled) It can produce continuously, shorten auxiliary time and improve production efficiency.

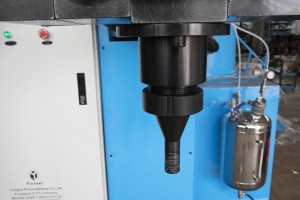

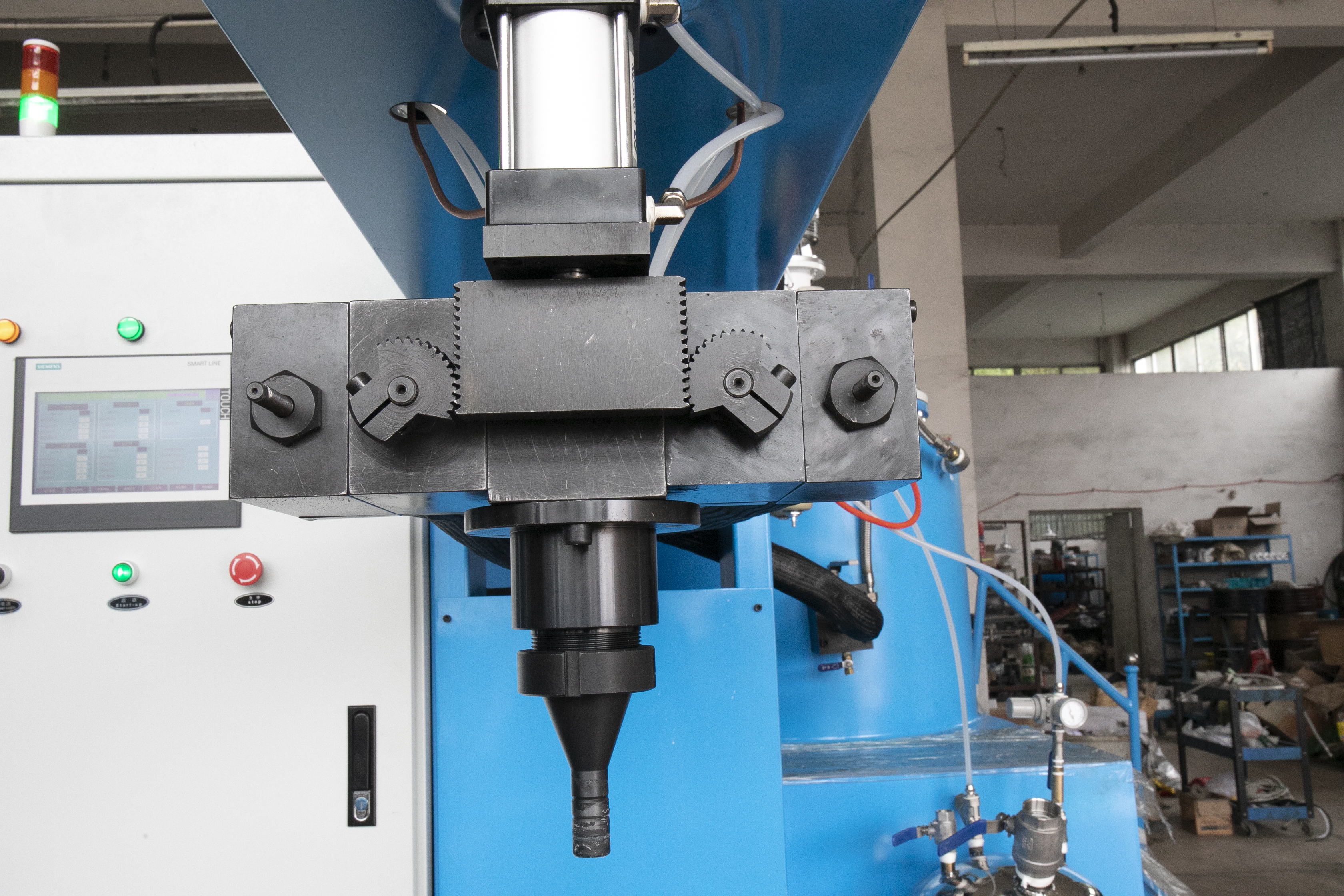

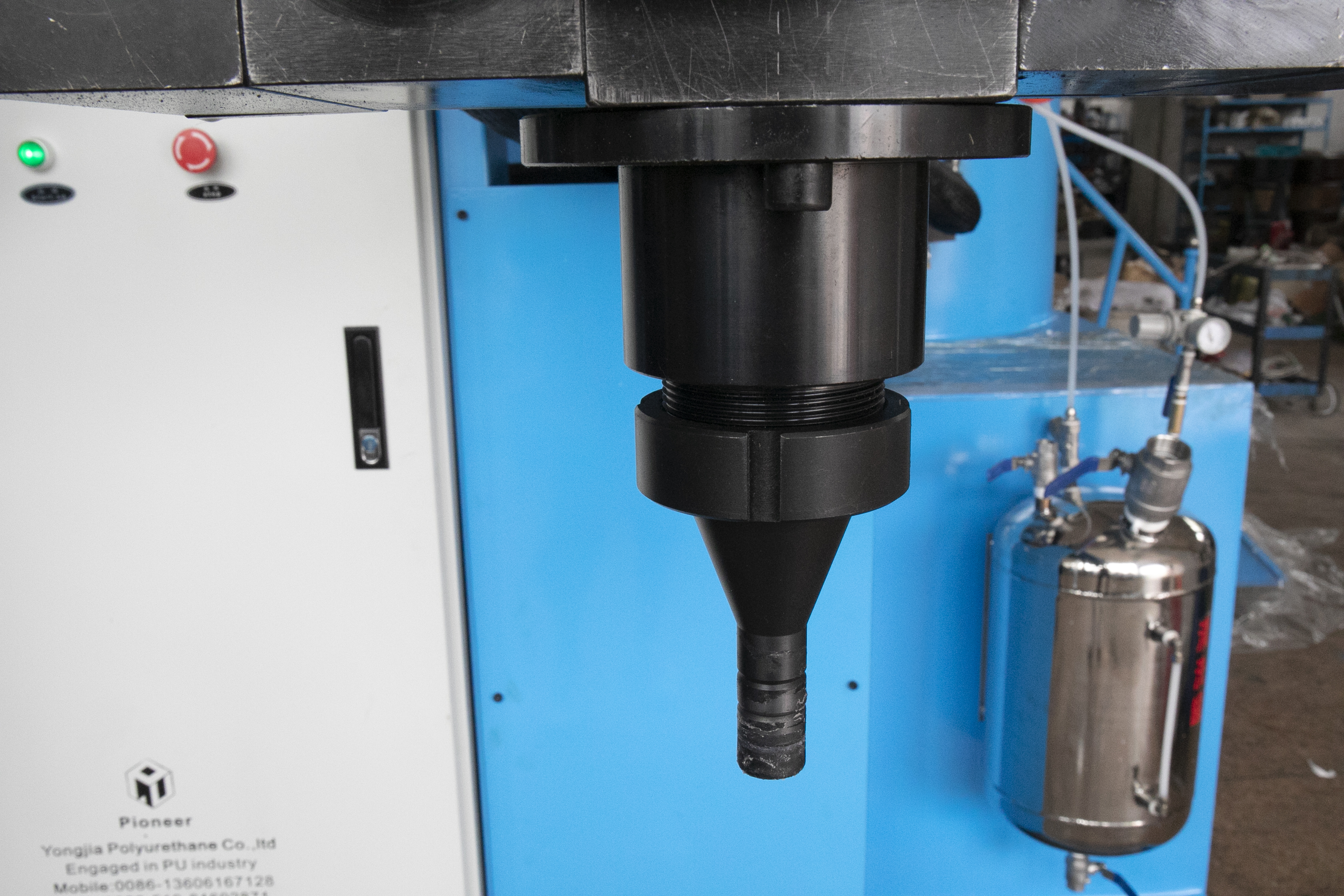

5. The machine head is equipped with an anti-reverse device, which solves the problem of pouring material during pouring;
6. When the pressure of any component or the metering pump is out of balance during the pouring process, the host stops pouring and alarms, reducing the waste of raw materials, ensuring product quality and reducing production costs.

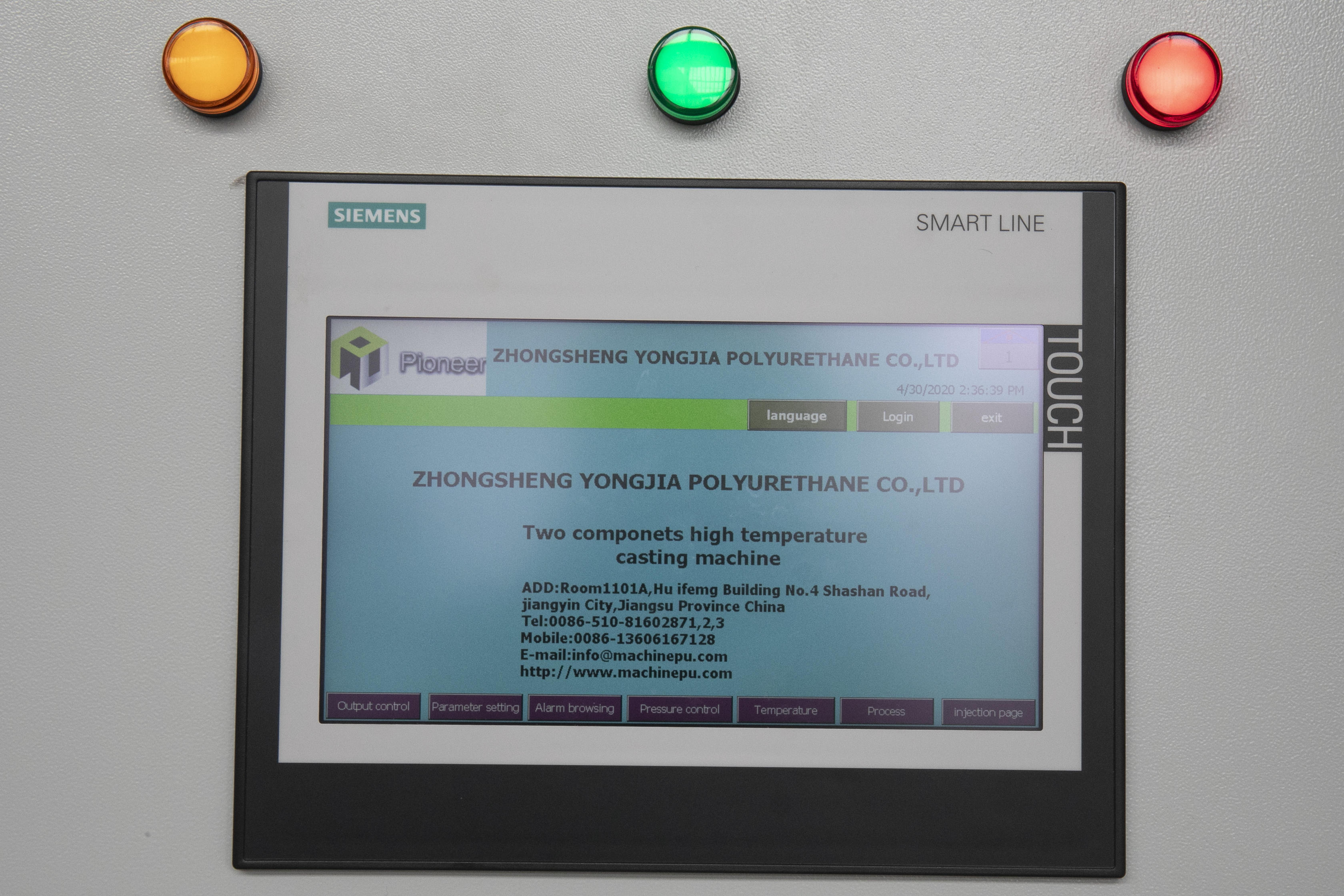

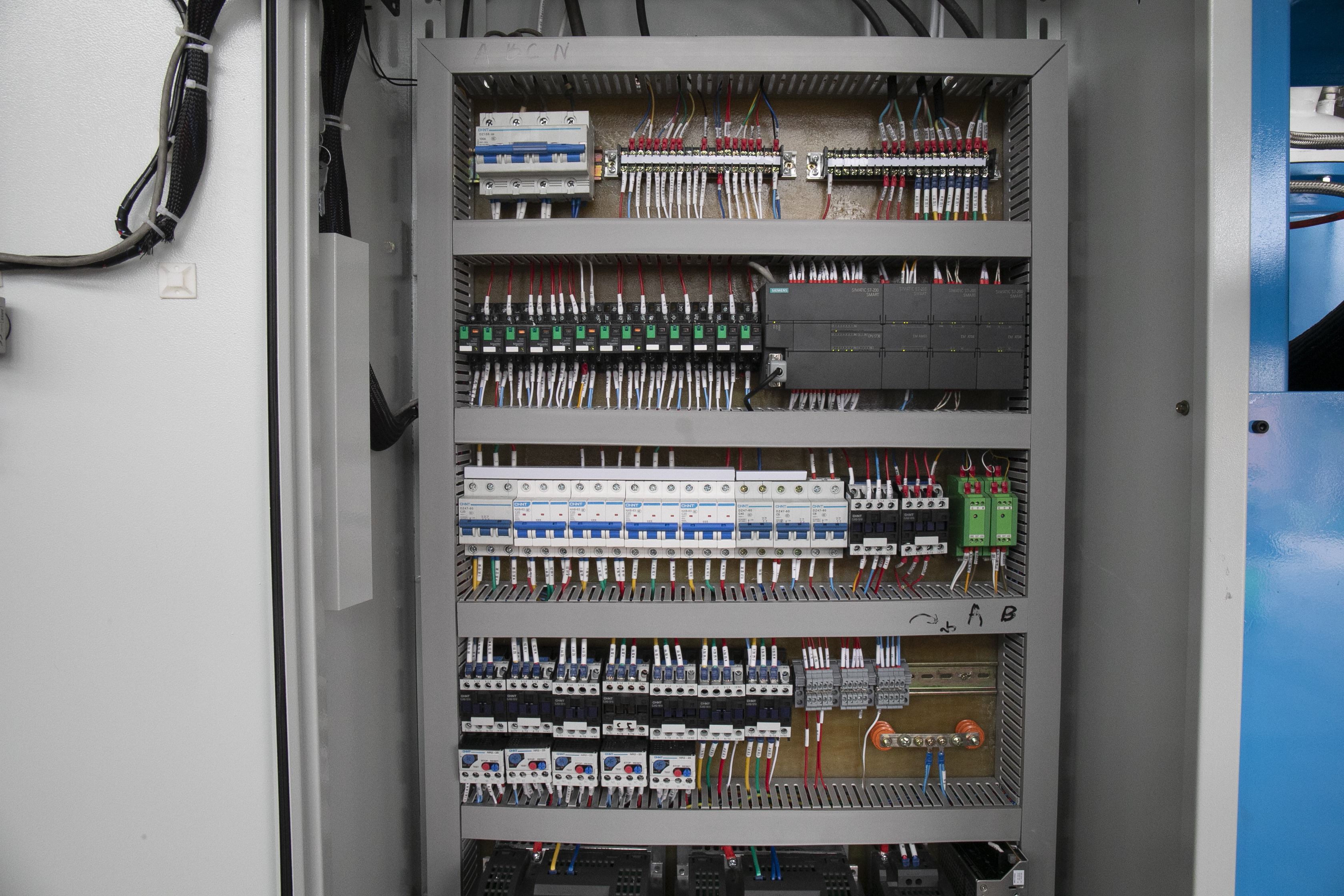

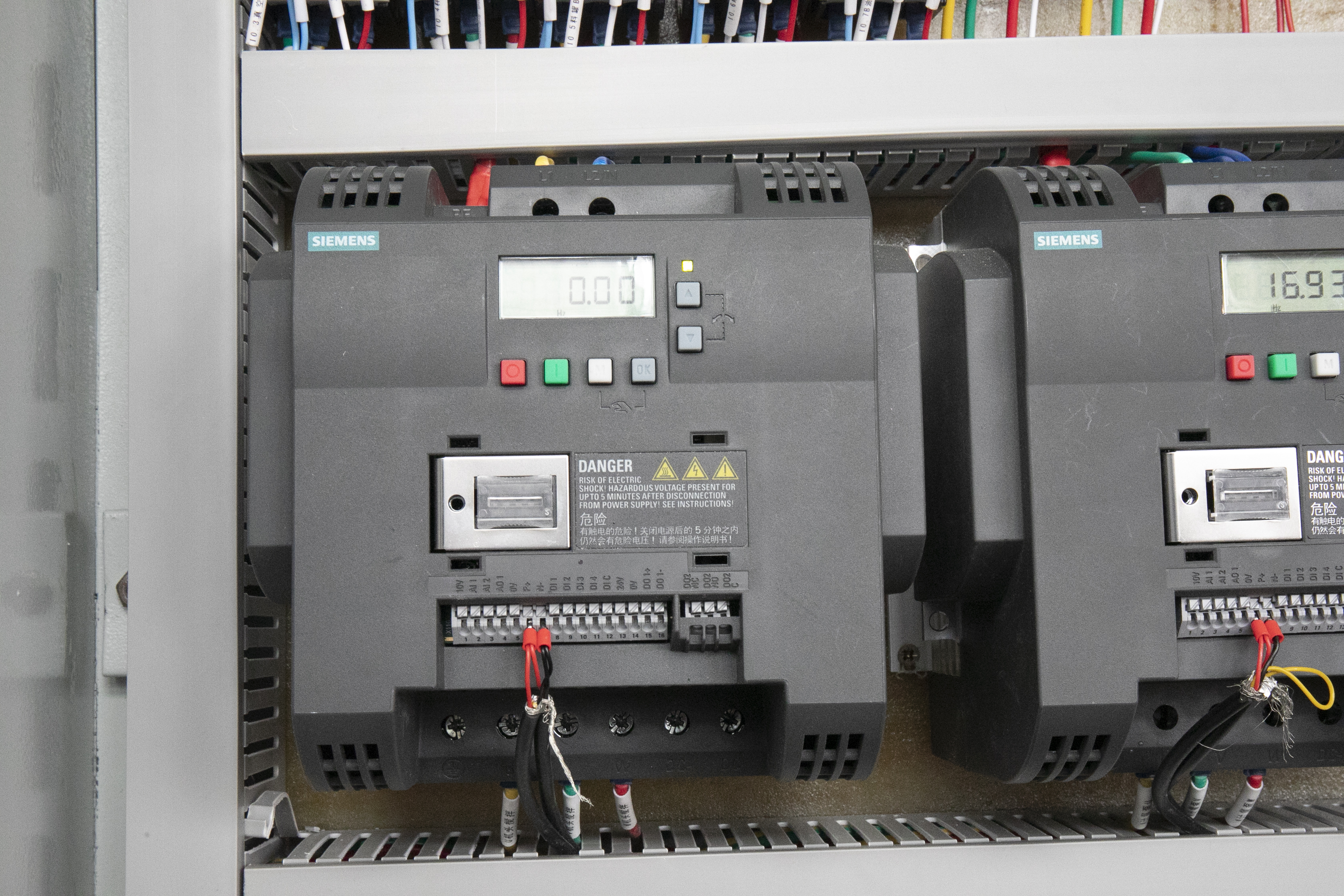

7. All operations and control methods are all controlled by micro-computer to realize intelligent operation.

dav


  • Previous:
  • Next:

  • 1A4A9458 1A4A9461 1A4A9463 1A4A9466 1A4A9476 1A4A9497

    Power (kW): 25~31kW Key Selling Points: Automatic
    Product Type: Foam Net Machine Type: Foaming Machine
    Voltage: 380V Dimension(L*W*H): 2300*2000*2300 Mm
    Weight (KG): 2000 KG Warranty: 1 YEAR
    After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
    Local Service Location: Turkey, Pakistan, India Showroom Location: Turkey, Pakistan, India
    Applicable Industries: Manufacturing Plant Product Name: Casting Machine
    Mix Head: Mix Evenly, No Bubble Injection Pressure: 0.01-0.1Mpa
    Injection Time: 0.5~99.99S (correct To 0.01S) Temperature Control: ±2℃
    Repeated Injection Accuracy: ±1% Color: Deep Blue/cream Color/red
    Ratio Between A And B: 1 : 1 Raw Material: Polyol And Isocyanate
    Port: Ningbo For Polyurethane Foam Injection Machine
    High Light: SS304 PU casting machineCE Polyurethane Casting MachineSS304 Polyurethane Casting Machine

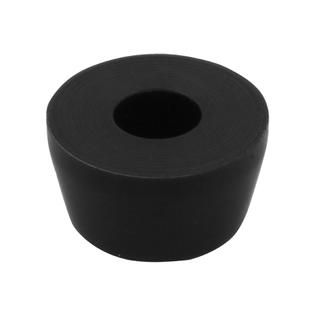

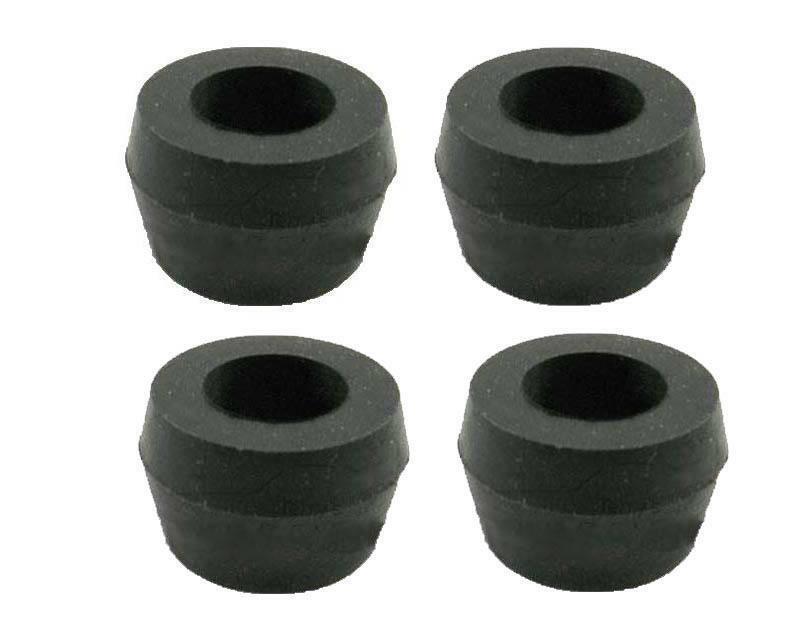

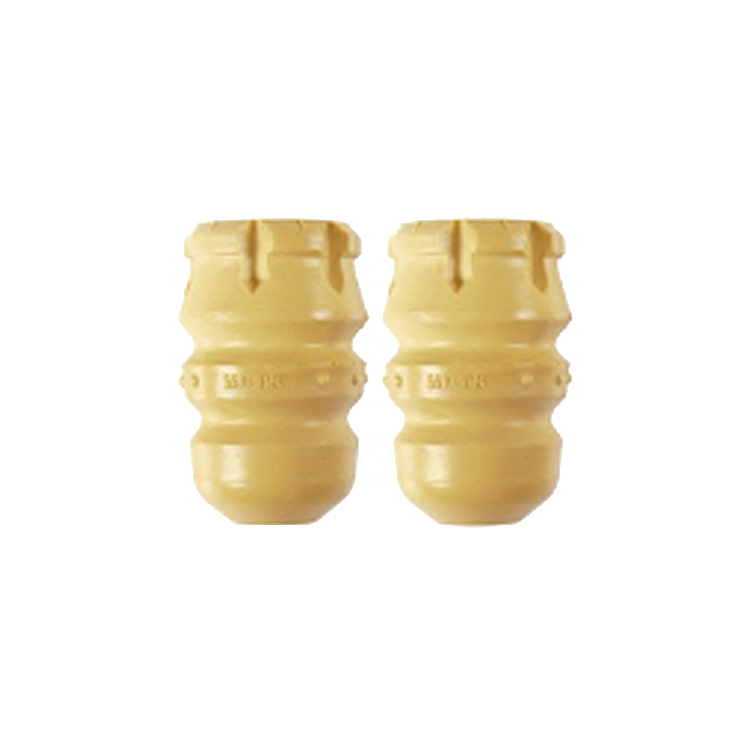

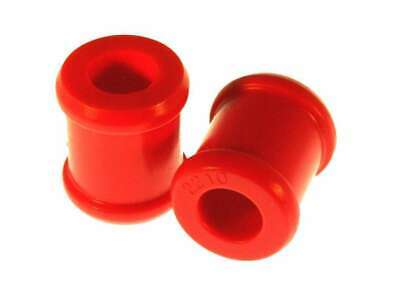

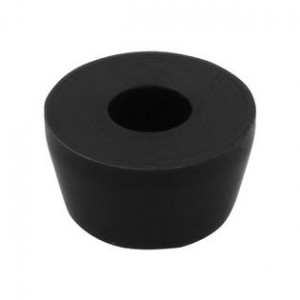

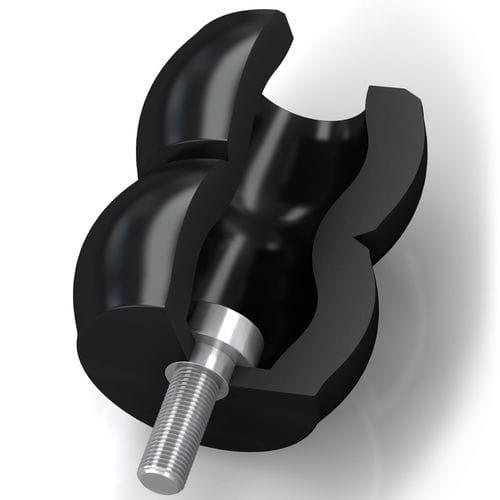

    The shock-absorbing block can make the car body more stable when turning, and the car body will no longer shake during road conditions such as winding roads and sharp turns, improving safety and peace of mind. At the same time, it can protect the shock absorber suspension system, prolong the life of the shock absorber of the car, and prevent the shock absorber spring oil seal from being damaged due to excessive bump strength.

    prod_9294640305 Energy-Suspension-Shock-Absorber-Eye-Bushing-98116R-RED c3273pu 18835-9414068 900 209主图1rBEhV1L7EqkIAAAAAADcKYBtsLQAAIjZgC5awwAANxB862
