Hydraulic Driven Polyurethane Polyurea Roof Foam Making Machine

Short Description:

JYYJ-H600 hydraulic polyurea spraying equipment is a new type of hydraulically driven high-pressure spraying system. The pressurizing system of this equipment breaks the traditional vertical pull type pressurization into a horizontal drive two-way pressurization.


Introduction

Details

Specification

Applications

Product Tags

JYYJ-H600 hydraulic polyurea spraying equipment is a new type of hydraulically driven high-pressure spraying system. The pressurizing system of this equipment breaks the traditional vertical pull type pressurization into a horizontal drive two-way pressurization.

Features
1.Equipped with air cooling system to reduced oil temperature, hence offering protection for the motor and pump and save oil.
2.Hydraulic station works with booster pump, guaranteeing pressure stability for A and B material
3. The main frame is made from welded seamless steel tube with plastic-spray so it is more corrosion resistant and can bear with higher pressure.
4. Equipped with emergency switch system, help operator deal with emergencies rapidly;
5. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it performs well in cold condition;
6. Humanized design with equipment operation panel, super easy to get the hang of it;
7.Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
8.The latest spraying gun has great features like small volume, light weight, low failure rate,etc;




  • Previous:
  • Next:

  • 图片11

    A/B material filter: filtering impurities of A/B material in the equipment;
    Heating tube: heating A/B materials and is controlled by Iso/polyol material temp. control
    Hydraulic station oil-adding hole:When the oil level in oil feed pump is getting low, open the oil-adding hole and add some oil;
    Emergency switch: Cutting off power rapidly in emergencies;
    Booster pump: booster pump for A, B material;
    Voltage: displaying voltage input;


    Hydraulic fan:air cooling system to reduce oil temperature, saving oil as well as protect motor and pressure adjuster;

    Oil gauge :Indicate the oil level inside the oil tank;

    Hydraulic station reversing valve: control the automatic reverse for hydraulic station

    Raw material

    polyurea    polyurethane

    Features

    1.can be used both for spraying and casting with higher production efficiency
    2.Hydraulic driven is more stable
    3. both polyurethane and polyurea can be used

    POWER SOURCE

    3-phase 4-wires 380V 50HZ

    HEATING POWER   (KW)

    22

    AIR SOURCE (min)

    0.5~0.8Mpa≥0.5m3

    OUTPUT(kg/min)

    2~12

    MAXIMUM OUTPUT (Mpa)

    24

    Matrial A:B=

    1;1

    spray gun:(set)

    1

    Feeding pump:

    2

    Barrel connector:

    2 sets heating

    Heating pipe:(m)

    15-120

    Spray gun connector:(m)

    2

    Accessories box:

    1

    Instruction book

    1

    weight:(kg)

    340

    packaging:

    wooden box

    package size(mm)

    850*1000*1400

    Digital counting system

    Hydraulic driven

    This equipment is can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and etc.

    outside-wall-spray

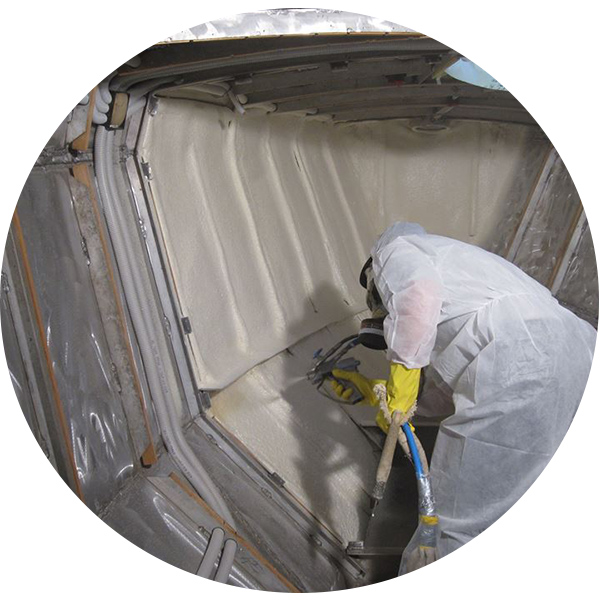

    boat-spray

    wall-coating

    sculpture-protection
