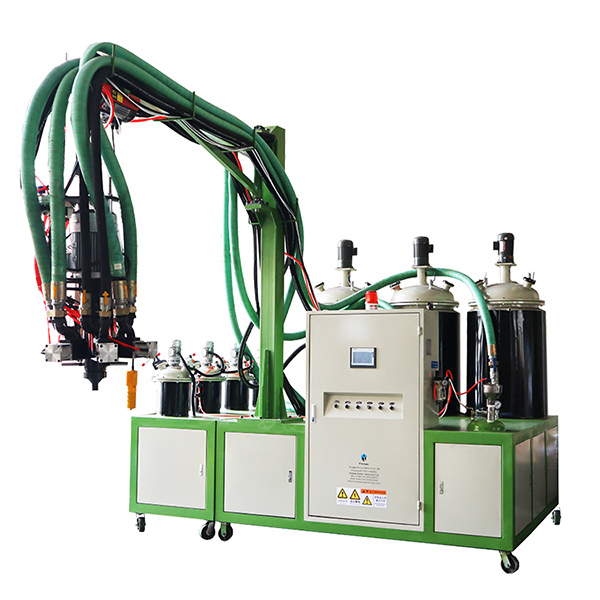

Three Components Polyurethane Injection Machine

Short Description:

The three-component low-pressure foaming machine is designed for simultaneous production of double-density products with different densities. Color paste can be added at the same time, and products with different colors and different densities can be switched instantly.


Introduction

Details

Specification

Application

Product Tags

The three-component low-pressure foaming machine is designed for simultaneous production of double-density products with different densities. Color paste can be added at the same time, and products with different colors and different densities can be switched instantly.

Features
1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
2.Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
3.Low speed high precision metering pump, accurate ratio, random error within ±0.5%;
4.Material flow rate and pressure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
5.High performance mixed device, accurately synchronous materials output, even mixture. New leak proof structure, cold water cycle interface reserved to ensure no blockage during long downtime;
6.Adopting PLC and touch screen man machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors.

004


  • Previous:
  • Next:

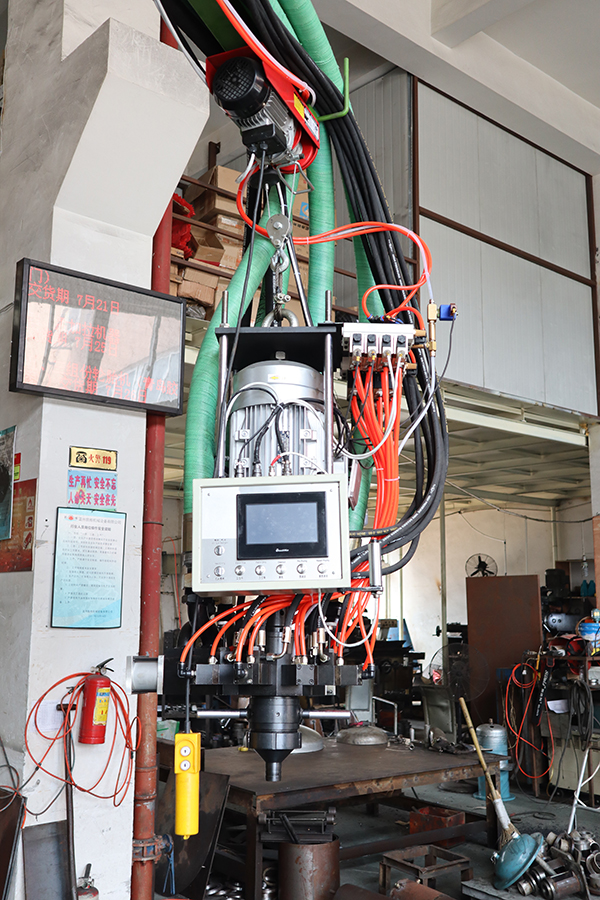

  • High-performance mixing device, precise synchronization of raw material spit out, uniform mixing; new sealed structure, reserved cold water circulation interface, to ensure that long-term continuous production does not block;

    005

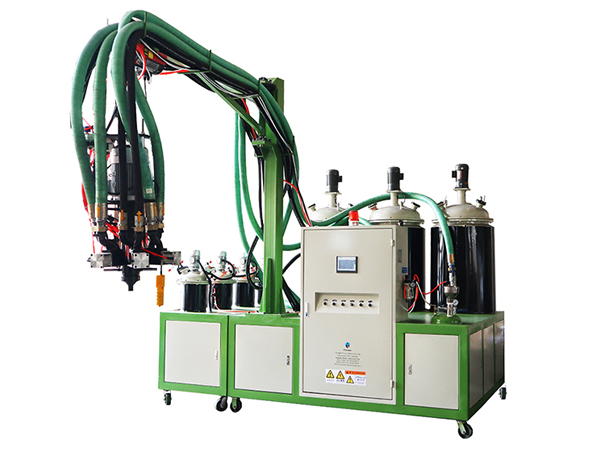

    Three-layer storage tank, stainless steel inner tank, sandwich heating, outer insulation layer, adjustable temperature, safe and energy-saving;

    003

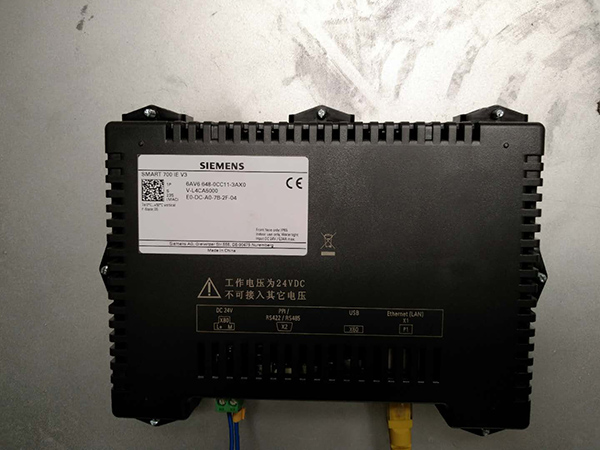

    Using PLC, touch screen human-machine interface to control equipment pouring, automatic cleaning and air flushing, stable performance, strong operability, automatic discrimination, diagnosis and alarm, abnormal factor display when abnormal;

    001

    No

    Item

    Technical parameter

    1

    Foam application

    Rigid foam/Flexible foam

    2

    raw material viscosity(22℃)

    POLY  ~3000CPS

    ISO  ~1000MPas

    3

    Injection output

    500-2000g/s

    4

    Mixing ration range

    100:50~150

    5

    mixing head

    2800-5000rpm, forced dynamic mixing

    6

    Tank volume

    250L

    7

    metering pump

    A pump: CB-100 Type  B Pump: CB-100 Type

    8

    compressed air needed

    dry, oil free,   P:0.6-0.8MPa

    Q:600NL/min(Customer-owned)

    9

    Nitrogen requirement

    P:0.05MPa

    Q:600NL/min(Customer-owned)

    10

    Temperature control system

    heat:2×3.2Kw

    11

    input power

    three-phase five-wire 380V 50HZ

    12

    Rated power

    About 13.5KW

    13

    swing arm

    Rotatable swing arm, 2.3m(length customizable)

    14

    volume

    4100(L)*1500(W)*2500(H)mm, swing arm included

    15

    Color( customizable)

    Cream-colored/orange/deep sea blue

    16

    Weight

    2000Kg

    002

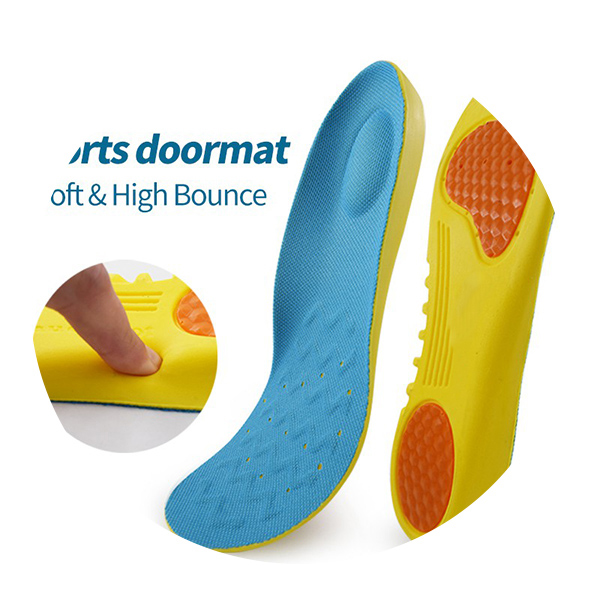

    Soft shoe insole and others products has two or more colours and two or more density

    Write your message here and send it to us

    Related products

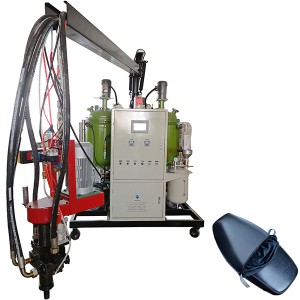

    • Polyurethane Car Seat Low Pressure PU Foaming Machine

      Polyurethane Car Seat Low Pressure PU Foaming M...

      1. Accurate measurement: high-precision low-speed gear pump, the error is less than or equal to 0.5%. 2. Even mixing: The multi-tooth high shear mixing head is adopted, and the performance is reliable. 3. Pouring head: special mechanical seal is adopted to prevent air leakage and prevent material pouring. 4. Stable material temperature: The material tank adopts its own heating temperature control system, the temperature control is stable, and the error is less than or equal to 2C 5. The whole...

    • Polyurethane Front Driver Side Bucket Seat Bottom Lower Cushion Pad Molding Machine

      Polyurethane Front Driver Side Bucket Seat Bott...

      Polyurethane provides comfort, safety and savings in car seats. Seats are required to offer more than ergonomics and cushioning. The seats manufactured from flexible moulded polyurethane foam cover these basic needs and also provide comfort, passive safety and fuel economy. The car seat cushion base can be made both by high pressure (100-150 bar) and low pressure machines.

    • Polyurethane Low Pressure Foam Filling Machine For  Door Garage

      Polyurethane Low Pressure Foam Filling Machine ...

      Description Market users most polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer’s request various pours out of the machine Feature 1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving; 2.Adding material sample test system, which can be switched freely without affecting normal production, saves...

    • Three Components Polyurethane Foam Dosing Machine

      Three Components Polyurethane Foam Dosing Machine

      The three-component low-pressure foaming machine is designed for simultaneous production of double-density products with different densities. Color paste can be added at the same time, and products with different colors and different densities can be switched instantly.

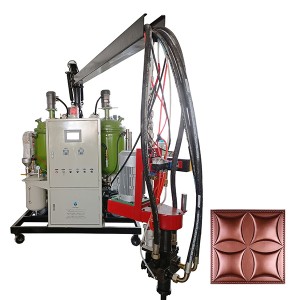

    • Polyurethane Low Pressure Foaming Machine Integral Skin Foam Making Machine

      Polyurethane Low Pressure Foaming Machine Integ...

      Characteristics and main uses of polyurethane Since the groups contained in the polyurethane macromolecules are all strongly polar groups, and the macromolecules also contain polyether or polyester flexible segments, the polyurethane has the following Feature ①High mechanical strength and oxidation stability; ② Has high flexibility and resilience; ③It has excellent oil resistance, solvent resistance, water resistance and fire resistance. Because of its many properties, polyurethane has a wide...

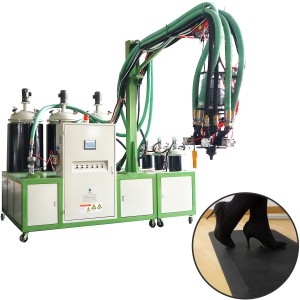

    • Low Pressure Flexible Polyurethane Foam Insulation Machine For Anti Fatigue Mat Floor Kitchen Mat
